Description
Rated load capacity:900kg Overall dimension (L×W×H):4036×1446×2260mm Rated bucket capacity:0.4-0.6m3 Bucket Dumping Height:1980mm …
Rated load capacity:900kg:
Overall dimension:4036×1446×2260mm:
Rated bucket capacity:0.4-0.6m3:
Product Feature
Compact design, low centre of gravity, tight turning radius and powerful performance – these features have characterised the MYZG series for years and still determine the immense success of the machines. The MYZG series effortlessly fulfil any work task and work quickly, flexibly and safely – a MYZG model is simply always ready for use.

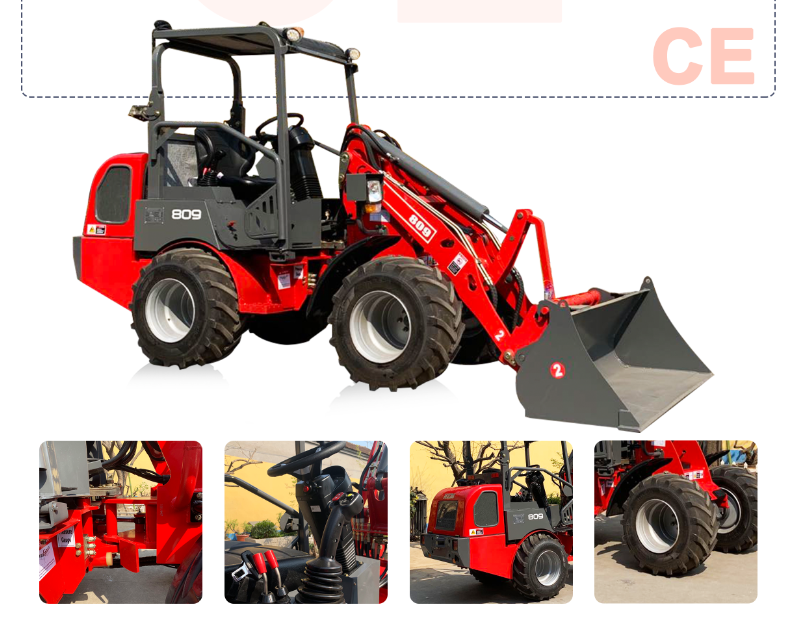

809 its biggest advantages are flexible steering, suitable height, warehouse can enter, Italy imported hydrostatic system, joystick, hydrostatic special axle, suitable for a variety of terrain environment,
●quick change, safety cover,
●Adjustable instrument, adjustable seat,
●Valta battery, Kubota EURO5 engine
●31×15.5-15 Vacuum tires.
Ø Kubota EuroV/ EPA4 Engine
Ø Italy Brand hydrostatic system
Ø Italy Brand 4 wheel driving motor
Ø Quick hitch
Ø Electric hand brake, inch function
Ø Folded canopy, or luxury cab,electric tipping cabin
Ø Front 2 wheel of the driving motor with service brake
Parameter
| rated load capacity | 900kg |
| rated bucket capacity | 0.4-0.6m³ |
| operating weight | 2300kg |
| engine model | Kubota V1505 (EURO V)
quanchai (stage II) |
| rated power | 18.2KW |
| dimensions | 4036×1446×2260mm |
| dump height | 1980 mm |
| Dump distance | 614mm |
| min.turning radius | 2805mm |
| wheel base | 1101mm |
| tyre size | 31X15.5-15 tubeless tire |
| Max.turning angle | 42° |
· Articulated pendulum joint
The backbone of the MYZG series design: the legendary articulated swing joint. All four wheels are in constant contact with the ground and the machine moves with maximum traction. It also makes the machine uniquely manoeuvrable.
·One strong lift cylinder
MYZG always installs one lift cylinder in all wheel loader models. This guarantees that the load distribution is always optimally transferred to the loading arm. In addition, the entyre loading system gains stability. The size of the lift cylinder is adapted to the respective size of the machine.
·Ergonomic joystick
The joystick lies securely and comfortably in your hand. The control is sturdy and sensitive at the same time. You therefore always have the machine and the key functions under control.
Detail
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.
