Description
off-road forklift,multifunction forklift,china diesel forklift…
load capacity ：3.8ton:
power：diesel:
weighht:5000kg:
Product Feature

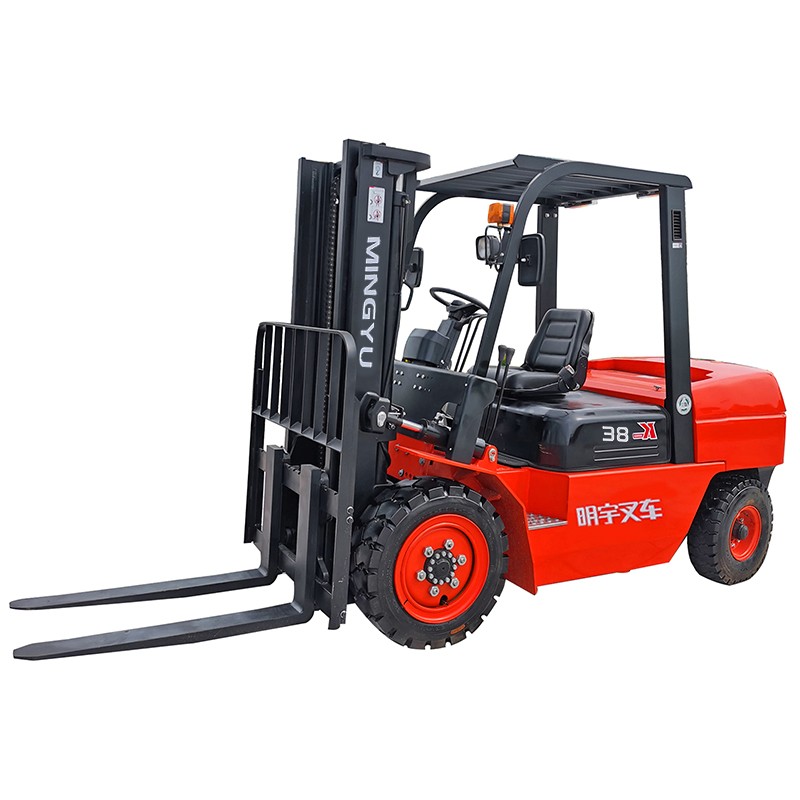

CPC38 is a special equipment for material handling and stacking, with a maximum lifting capacity of 3.8T and a maximum lifting height of 3m, which can also be increased. The product is flexible, efficient and widely used
·Flexible and efficient operation
·Safe and reliable, easy to use
·Economic and environmental protection, cost saving
·People-oriented, comfortable driving
Parameter
| Model | CPC(D)38M | |
| Power Type | diesel | |
| rated load lifting capacity | 3800kg | |
| Load centre distance | 500mm | |
| driving style | Sit down | |
| length | with fork | 4120mm |
| without fork | 2945mm | |
| wideth | 1228mm | |
| height | Do not raise the mast height | 2140mm |
| Overhead guard height | 2100mm | |
| Max height at working | 4262mm | |
| Distance from seat surface to top guard frame | 970mm | |
| wheel base | 1900mm | |
| front overhang | 457mm | |
| rear overhang | 550mm | |
| front wheel track | 1000mm | |
| rear wheel track | 980mm | |
| minimum ground clearance | 165mm | |
| Standard lifting height | 3000mm | |
| free lifting height | 70mm | |
| Fork adjustment range | 260-1100mm | |
| minimum turning radius | 2550mm | |
| Minimum right-angle channel width(1100*1100 pallets) | 4307mm | |
| Gantry angle (front/rear) | 6/12° | |
| Maximum lifting speed without load | 480mm/s | |
| Maximum lifting speed with full load | 360mm/s | |
| Maximum operating speed without load | 20Km/h | |
| Maximum operating speed with full load | 20Km/h | |
| Max gradeability with full loading | 20% | |
| Weight unladen | 4900kg | |
| Number of wheels = driving wheels/steering wheels | 2/2 | |
| Tyre type (front/rear) | Pneumatic tyre/pneumatic tyre | |
| tyre size(front) | 28×9-15 | |
| tyre size(rear) | 6.50-10 | |
| Brake/driving brake | Foot Brake | |
| parking brake | Hand Brake | |
| Engine | quanchai | |
| rated power | 39kw | |
| rated speed | 2650r/min | |
● Safety performance
– Enclose cabin is made of assembling steel plate, high strength overhead is designed to ensure the safety.
– Parking brake with safety protection device, when parking brake is working, the forklift will not move even the direction lever is turned.
– Safety device in mast hydraulic system prevents material falling down in case of hose broken.
– High pressure hose is designed far away from the driver.
– Safety wire harness, using waterproof plug.

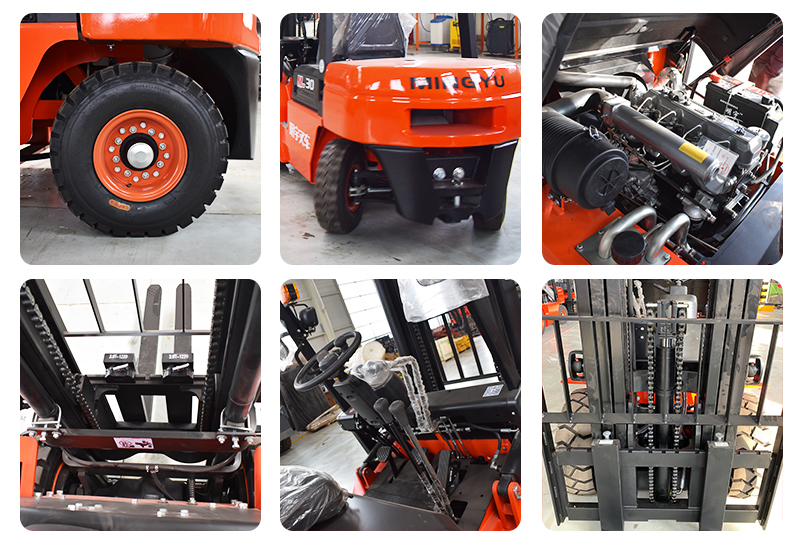

Detail
According to demands, can be matched with different accessories
