Description
Lead-acid batteryforklift， Lithium Battery forklift，cheap mini forklift，2.5 tons electric Forklift，hot sale front forklift，Good quality forklift…
Rated load lifting capacity : 2500kg:
Battery voltage capacity : 48V/600Ah:
Total weight:4200 kg:

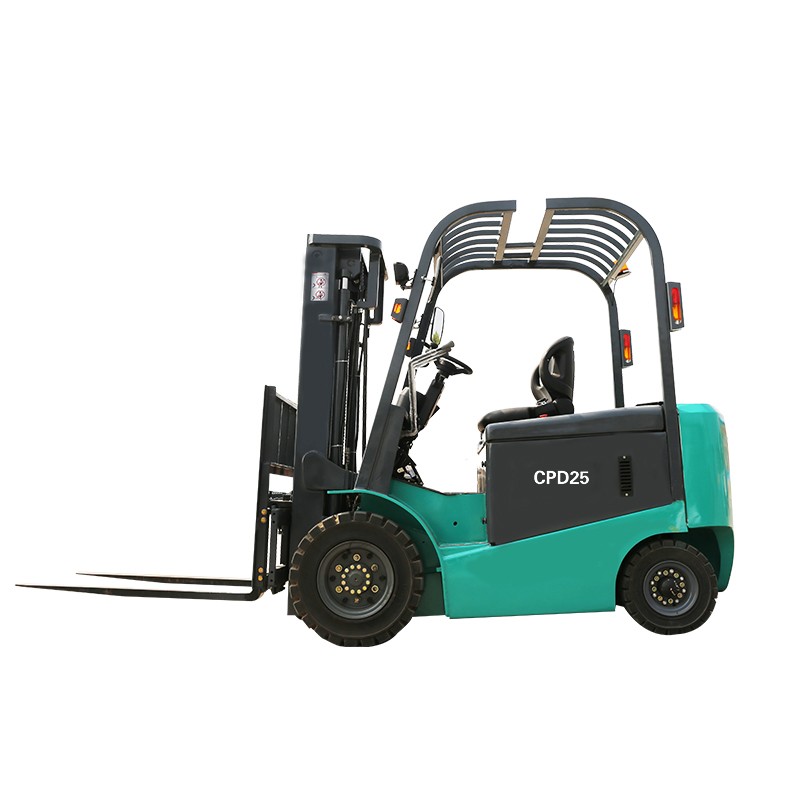

MINGYU LEAD ACID FORKLIFT
The unique dock-to-stock capability of the MINGYU lead acid Forklift makes it top of its class and one of the most versatile forklifts in myzg’s product line. Because it is designed for 2,500 lb. loads, it is more flexible and can handle more capacity at greater heights with added durability. Its compact design allows it to seamlessly navigate narrow aisles with ease, giving you the ability to store more products in your facility. This Mingyu Forklift delivers improved ergonomics, reliability, and sturdiness while reducing service intervals.
PRODUCT FEATURE
Designed for Comfort
The Large Electric’s operator compartment is designed to make the forklift work as an extension of the operator’s body. With intuitive, well-placed controls. Easy-to-read displays. And clear sightlines all around. Equally important, the operator compartment is also designed for comfort, even over a long shift – with a premium seat, low entry and exit steps, and a heavy-duty non-slip floor mat to minimize noise, heat, and vibration.
Key Safety Features
Safety features on the Large Electric Forklift include mingyu’s System of Active Stability (SAS)™, which automatically detects potentially unsafe conditions and engages additional safety features for increased operator protection and reduced product and forklift damage. This forklift also comes with welded, roll-formed overhead guard pillars to provide maximum operator protection with superior entry/exit and load visibility. Additional features include:
Operator Presence Sensing System (OPSS)
Key Lowering Interlock
Double-Action Parking Brake
Electric Horn
Ease of Service
MINGYU’s Lead acid Forklift is built with superior components and meticulously engineered integrated systems that deliver intuitive, dependable performance daily. Mingyu Forklifts don’t often require service, but when they do, it’s fast and easy — by design. Legendary MINGYU quality means more productivity over the lifecycle of your forklift, along with lower repair costs. MYZG’s Lead acid Forklift comes with easy-to-access hydraulic motor and controller along with a no-tools required floorboard along with a planned maintenance indicator.
THE MAIN PARAMETER
| Model | CPDJ25 |
| Rated load lifting capacity | 2500kg |
| Load centre distance | 500mm |
| Power style | Accumulator |
| Drive style | Sit down |
| Wheel base | 1500mm |
| Tyre type | Pneumatic tyre |
| Number of wheels(front/rear) | 2/2 |
| Front wheel track | 973mm |
| Rear wheel track | 950mm |
| Tyre(front) | 7.00-12.12PR |
| Tyre(rear) | 18×7-8 |
| Front overhang | 485mm |
| Gantry angel (fron/rear) | 6/12 |
| Height of the gantry at landing | 2050mm |
| Max lifting height | 3000mm |
| Max height at working | 4030mm |
| Overhead guard height | 2140mm |
| Fork size | 122x40x1070mm |
| Frame length | 2400mm |
| Frame width | 1160mm |
| Minimum turning radius | 2030mm |
| Mast ground clearance （with full load） | 110mm |
| Middle of frame ground clearance (with full load ) | 115mm |
| Right-angle channel width （pallet 1200X1200） | 3950mm |
| Operating speed(without load/with full load) | 13/14 mm/s |
| Lifting speed(without load/with full load) | 255/355 mm/s |
| Gradeability with full loading | 15% |
| Total weight(with accumulator) | 4200 kg |
| Battery voltage capacity /5HR | 48V/600Ah |
| Battery box size (width xlength xheight） | 495x975x800 mm |
| Pull pump motor power | 9kw |
| Oil pump motor power | 11kw |
| Pull pump control style | MOS tube/Alternating current |
| Oil pump motor control style | MOS tube/Alternating current |
| Driving brake /Parking brake | Hydraulic /Machinery |
According to demands, can be matched with different accessories
