Description

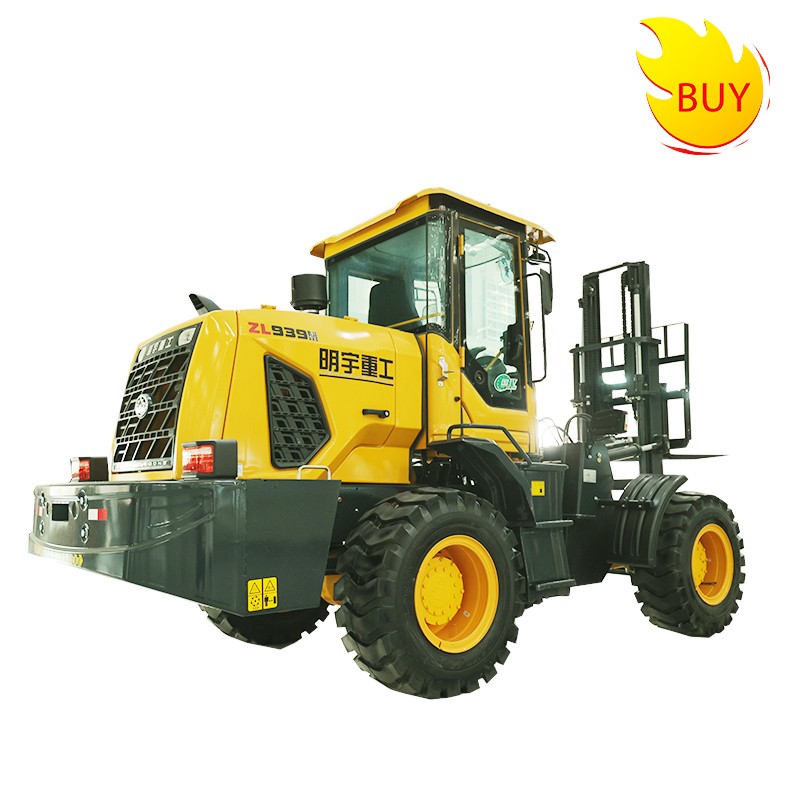

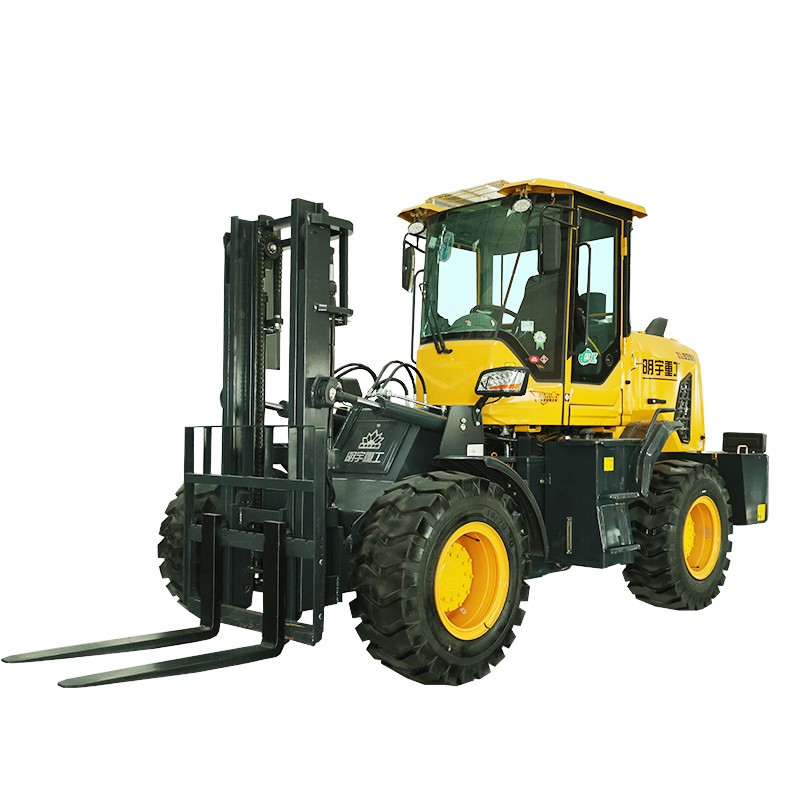

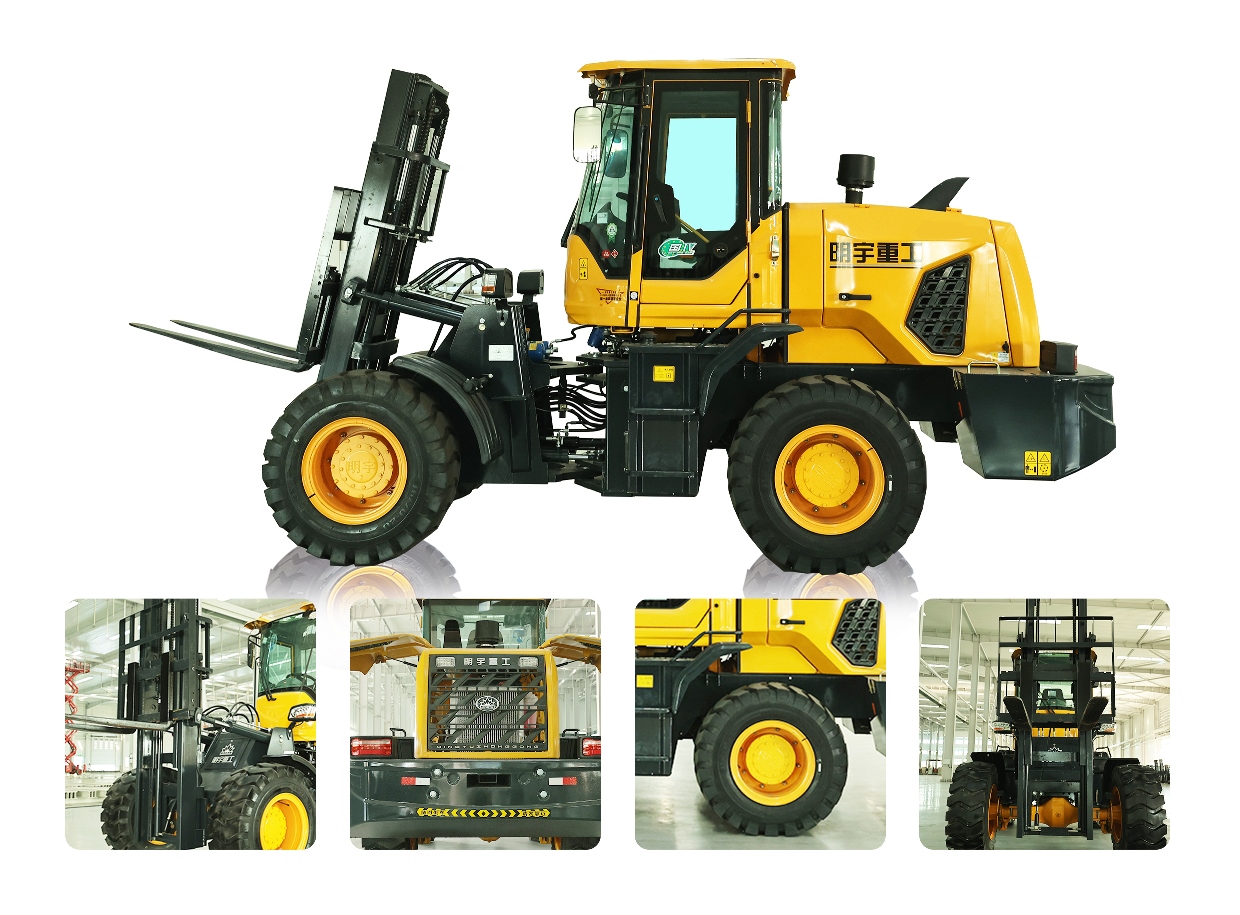

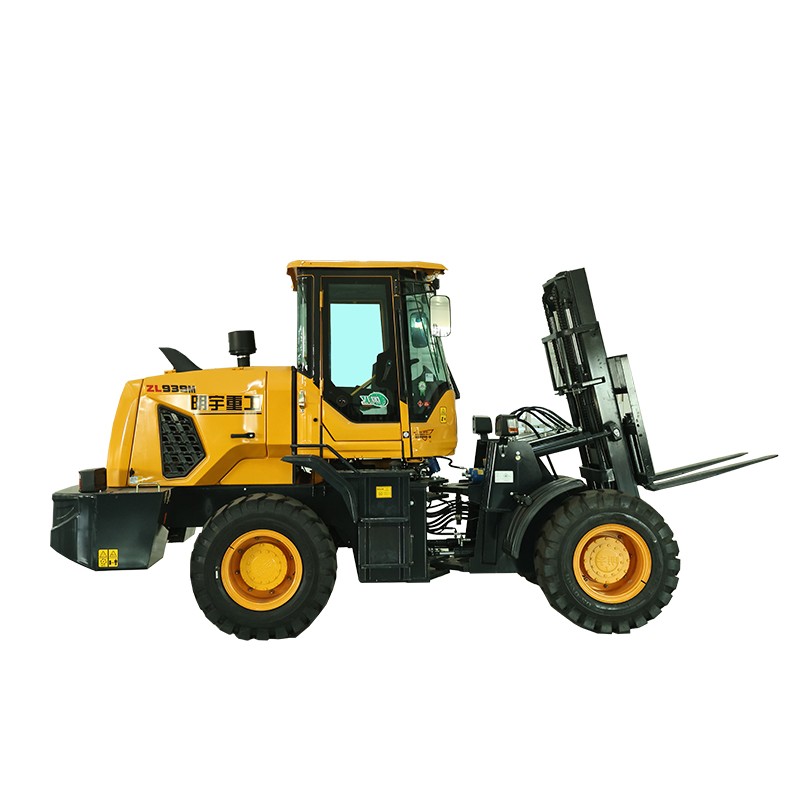

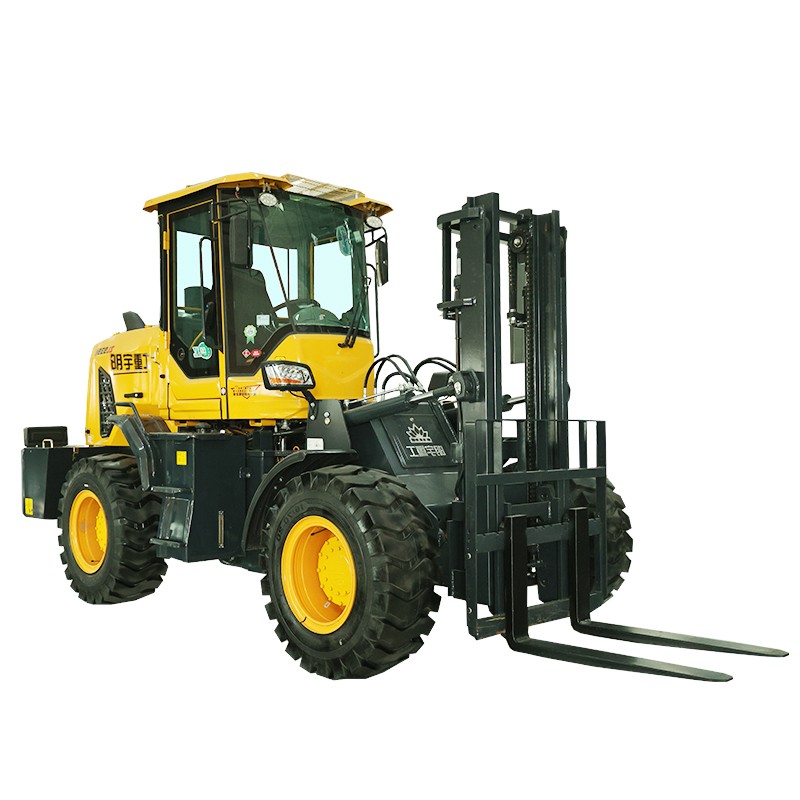

ZL938D Off-road forklift …
rated load capacity :4800kg :
weight : 5850 kg:
engine model : QUANCHAI /YUNNEI:
Product Feature
Using the same technology as JCB，our rough terrain forklifts are put through a stringent testing program.
A QUALITY PROCESS
Our rough terrain forklift hydraulic cylinders have friction-welded eye-ends for extra strength, plus all pivots use hardened pins.
Masts are made from heavy-duty channel and I-section steel, alongside heavy-duty chains and guide roller bearings that are sealed for life.
State-of-the-art manufacturing processes like robot machining, precision paint technology and innovative assembly techniques to achieve the highest levels of quality.
COMFORTABLY SUPERIOR
The large, spacious cab boasts left and right grab handles with wide-opening doors; standard-fit tinted glass and new 3-speed heater fan.
Standard-fit tinted glass reflects 30% of solar energy.
Choose from both suspension and air-suspension seating options.
When lifting or placing loads, our optional sideshift carriage makes things even easier.
Zero tail swing design provides peace of mind when manoeuvring around obstacles.
EFFICIENT BY DESIGN
Our new, larger high-flow hydraulic pump translates the power into efficient lifting for increased productivity; cycle times are up to 51% faster.
Engine maximizes both productivity and efficiency.
The engine doesn’t need exhaust after-treatment, so costly heat-resistant lube oils or DEF (Diesel Exhaust Fluid) are unnecessary; in turn, you save on servicing costs.
Parameter
| ZL938D Off-road forklift | |
| rated load lifting capacity | 4800kg |
| total weight | 5850kg |
| engine model | yunnei/quanchai |
| rated speed | 2400r/min |
| Standard lifting height | 3000mm |
| Gantry angle | Front 7°/rear 12° |
| Maximum lifting speed | 0.63 m/s |
| fork length | 120*1200mm |
| minimum ground clearance | 280mm |
| minimum turning radius | 2680mm |
| wheel base | 2445mm |
| Tyre distance | 1705mm |
| dimension | 5740*2130*2870mm |
| Tyre type | 16/70-20 |
Detail
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option
