Description
2-3T Electronic scale pallet truck…
Rated Load Capacity:2000-3000kg:
Weight Unladen:95-97kg:
Battery:7.4 V / Ah:
High Quality 2000kg 3000kg Electronic scale pallet truck
PRODUCT FEATURE
Description:

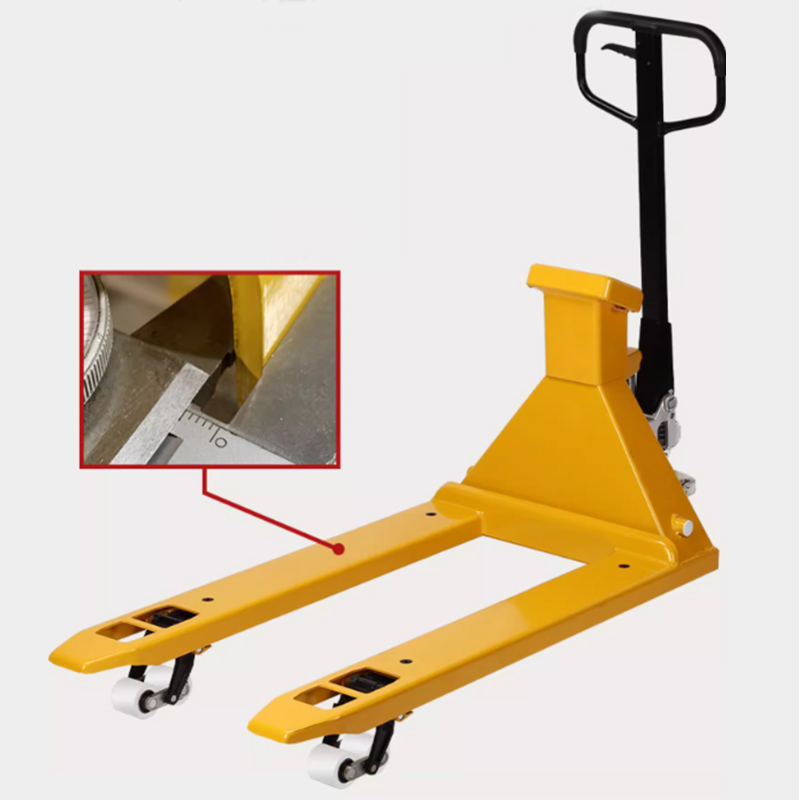

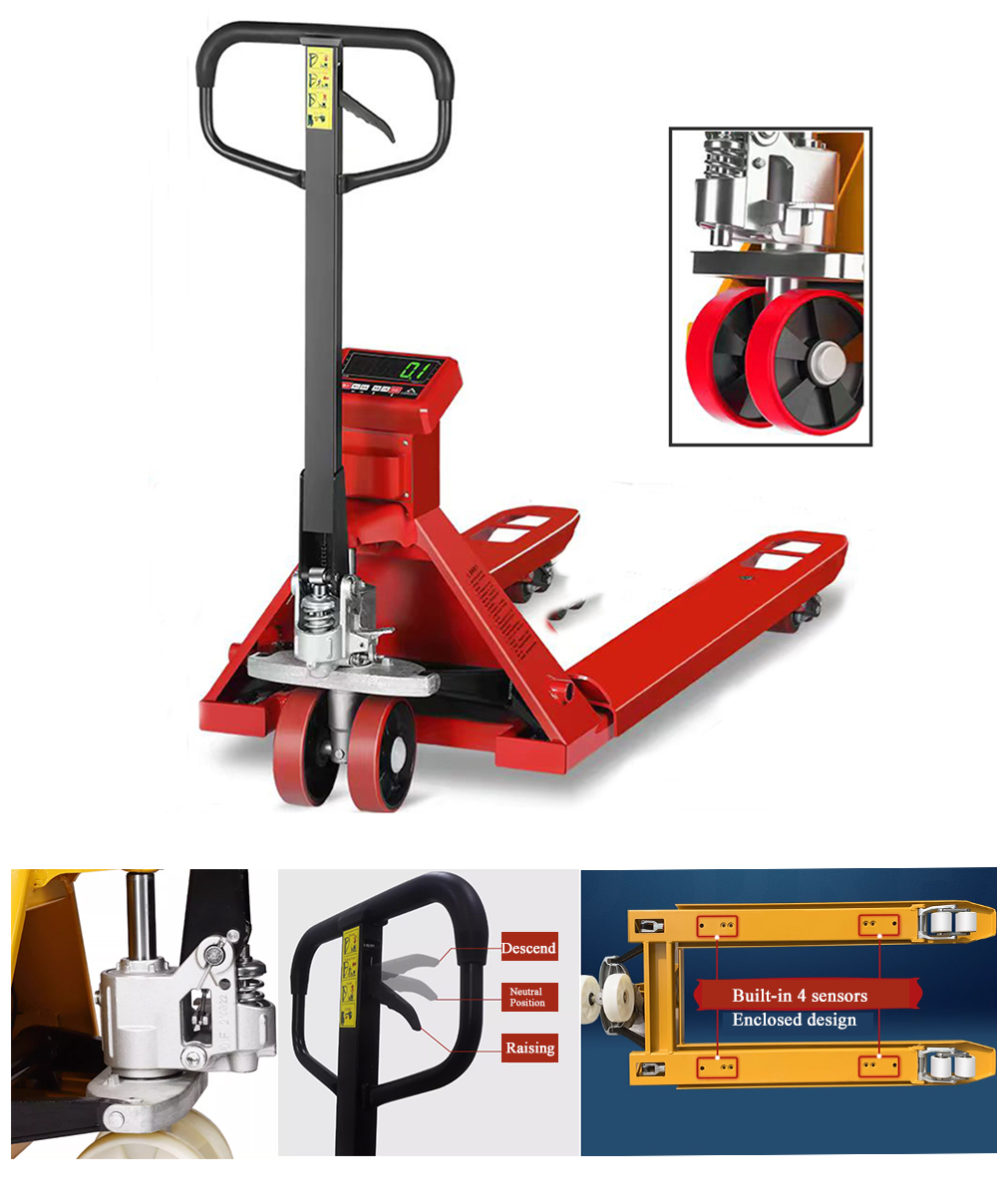

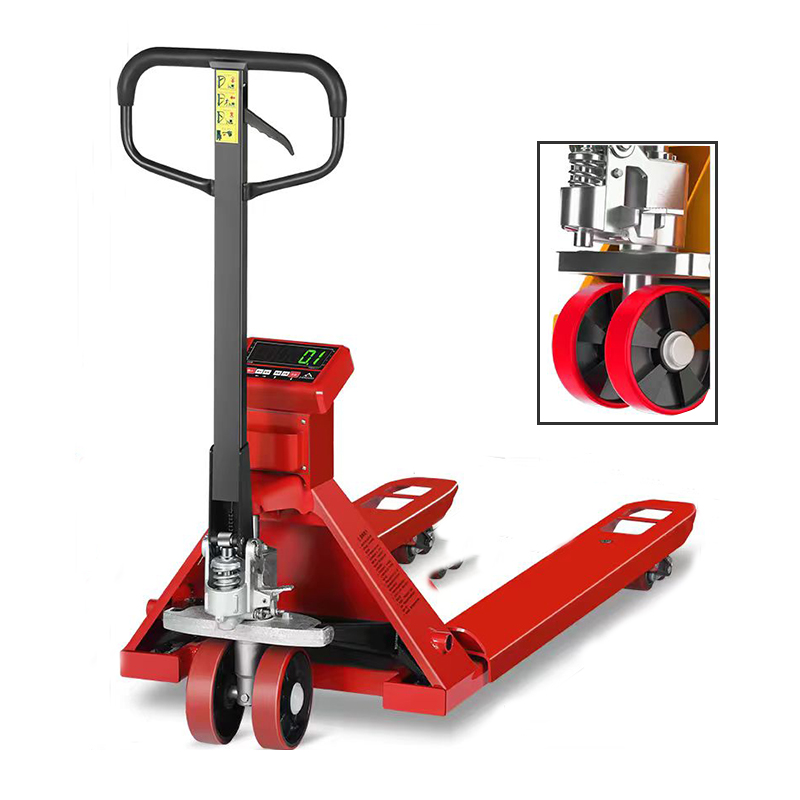

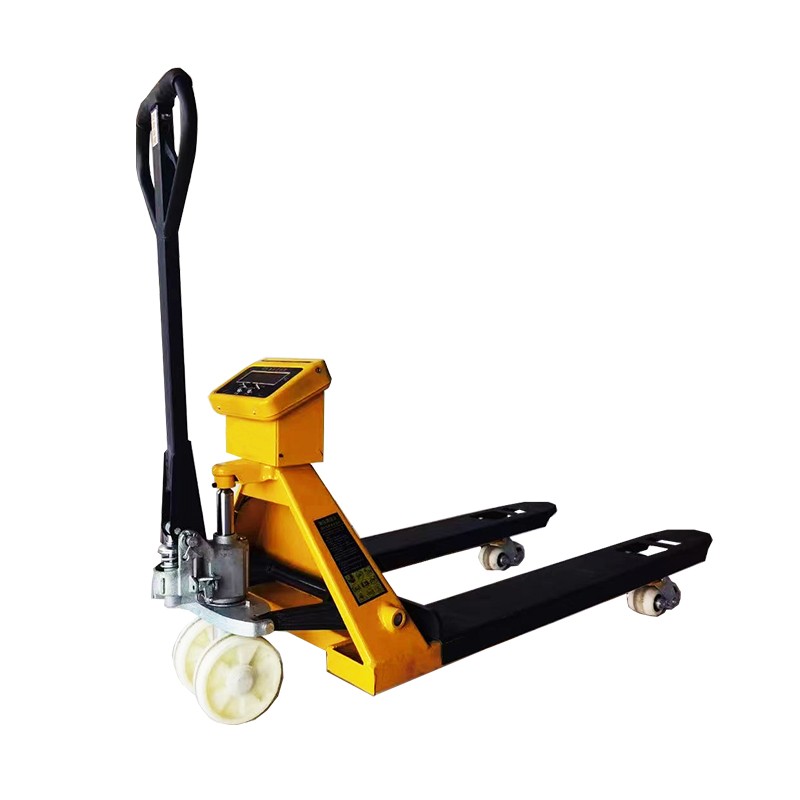

The distinctive structural design of key components not only can accept strong impact, but also makes the height as lower as 75mm when the hydraulic part is released. Applicable to industrial and mining enterprises and it’s the best choice for weighing moving cargo in short distance The nylon wheels are suitable to for low drag efforts, high resistance to chemicals and non-marking traces. The polyurethane wheels are suitable to the light floor, quiet and durable. Various indicators are available and it can be used in different situation Stainless steel extends the using range to factory plant, chemical industries, etc.
2000//3000KG
- Maximize efficiency when loading & unloading goods
- Minimize floor space
- Accurate, Flexible & Mobile Weighing system

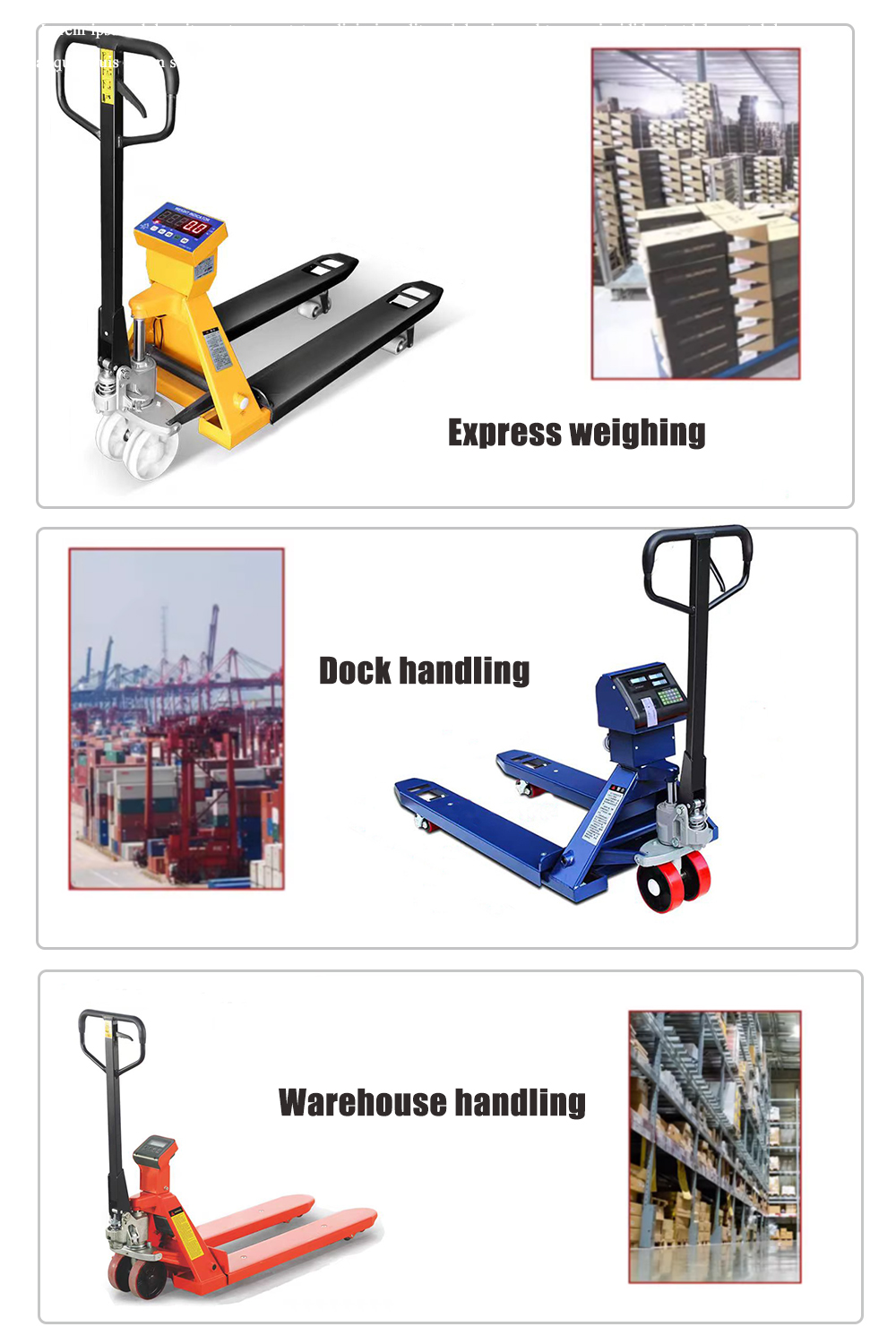

- Suitable for industrial use
- Intelligent auto back-light
- Large screen,easy to view
- Foot brake(optional)
- Bulit-in printer(optional)
THE MAIN PARAMETER
| Rated load | kg | 2000 | 3000 |
| Carrying wheel | mm | φ75×60 | φ80×70 |
| Steering wheel | mm | φ160×50 | φ180×50 |
| Fork lowest height | mm | 85 | 88 |
| Max.fork height | mm | 200 | 203 |
| Fork size | mm | 55/160 | |
| Fork length | mm | 1150/1220 | |
| Overall height | mm | 1200 | |
| Fork width | mm | 540/685 | |
| Overall length | mm | 1550/1620 | |
| Battery | V/Ah | 7.4/4 | |
| Battery life | h | 40 | |
| Battery type | DL | Lithium | |
| Display mode | FS | L C D | |
| N.W | kg | 95 | 97 |
1. Certificate: CE&GS
2. Safe&Easy to operate: Full adjustable push rods under forks ensure stability of forks.
3. Durable: Top quality hydraulic is made by investment casting, Hard chrome plated position and pump Plunger ensure wear-resistant and corrosion reistance.
4. Environmental: Hand pallet truck, more environmental.
5. Customer’s demands: Special specification can be manufactured according to customer’s demands.
Advantages of a Manual Pallet Truck with an Electronic Scale
Precision and Efficiency
A manual pallet truck with an electronic scale allows for precise weight measurements directly at the point of loading. This enhances efficiency by combining two functions into one, reducing the need for separate weighing stations and minimizing time spent on material handling tasks.
Improved Accuracy
The integrated electronic scale provides accurate weight readings, helping to avoid overloading and ensuring compliance with weight regulations. This accuracy is essential for maintaining the integrity of shipping and receiving processes, as well as for inventory management.
Cost Savings
By integrating weighing capabilities into the pallet truck, businesses can save on the cost of purchasing separate scales and reduce labor costs associated with additional handling steps. This all-in-one solution streamlines operations and enhances productivity.
Enhanced Safety
Knowing the exact weight of loads reduces the risk of accidents caused by overloading. The electronic scale helps operators make informed decisions about load handling, contributing to a safer work environment.
