Description
Lithium E-Truck,E-Trucks,forklift,Pallet Trucks,Pallet Stackers…
Load capacity:1500kg:
Weight unladen:232kg:
Outline dimension :1750x690x1130mm:
THE WIRE HARNESS ARE ARRANGED INDEPENDENTLY

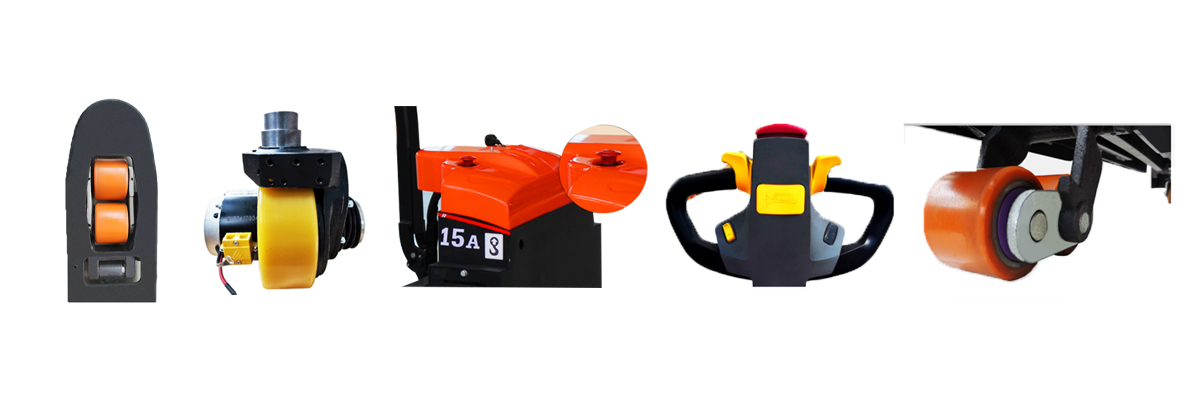

PRODUCT FEATURE

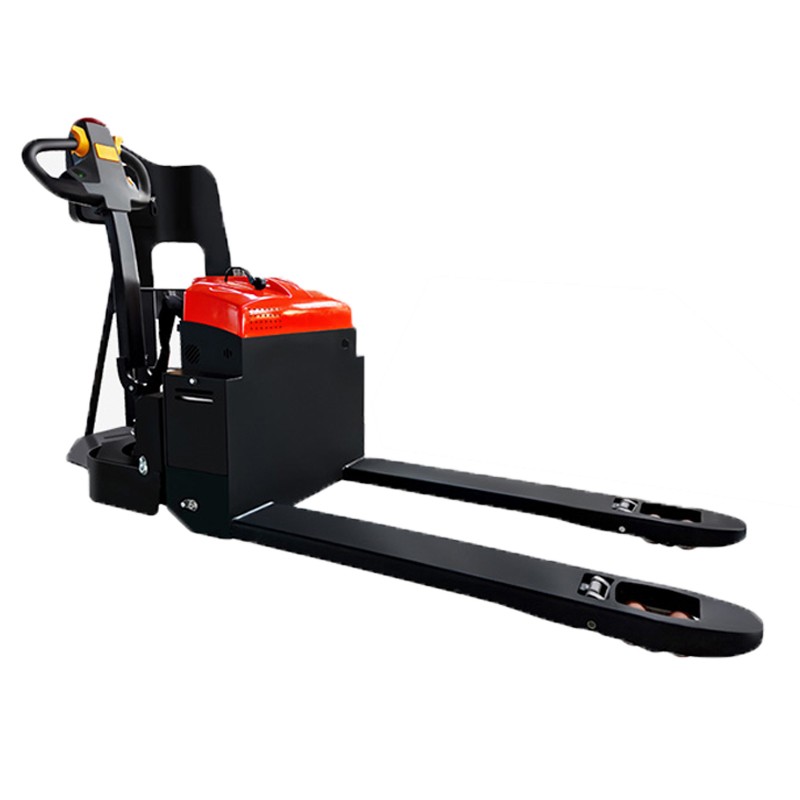

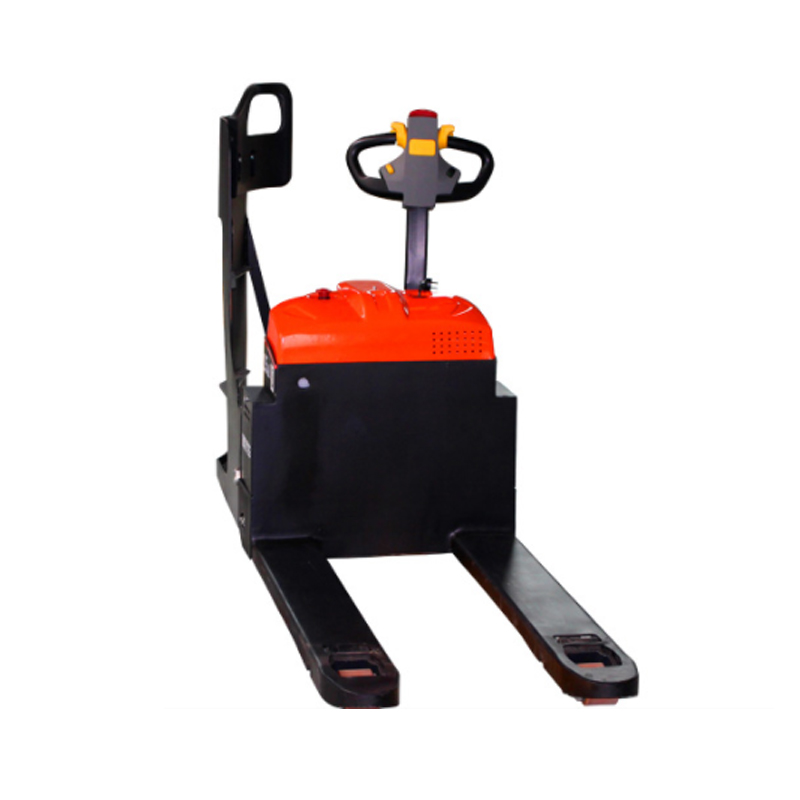

The rider pallet truck is one of the A series pallet truck models. Using the latest AC drive technology, advanced performance, comfort, safe, reliable, low maintenance cost, is the ideal tool for heavy duty and long distance transport operations.
The pedal applies shock absorption design, greatly improve the operator’s comfort, reduce the fatigue
Optimized designing structure to offer a good visibility and easy entrance of the pallet
Side battery change is standard feature
Simple and beautiful tiller designed to make the operator feel comfortable, all the operation can be completed by one hand
THE MAIN PARAMETER
| Tramp type | |||
| Model | CBD15 | max. lifting height | 200MM |
| Power source | Electric | fork lowing height | 80MM |
| Load capacity | 1500KG | fork length | 1160MM |
| Outline dimension | 1750x690x1130mm | single fork width | 165MM |
| Steering type | Mechanical | fork outside width | 680MM |
| Battery type | Lead-acid maintenance-free battery | min. ground clearance | 30MM |
| Operation type | Mechanical | turning radius | 1475MM |
| Weight unladen | 232KG | driving speed | 4/4.5km/h |
| Load capacity | 1500KG | lifting speed | 50/60km/h |
| Load centre distance | 600MM | declining speed | 45/40km/h |
| wheel base | 1360MM | max. grade ability | 6/15% |
| drive wheel size | 210*70MM | drive motor power | 0.75 |
| bearing wheel size | 80*60MM | lifting motor power | 0.8 |
| balance wheel size | 70*40MM | battery voltage | 2*12*70v/Ah |
STANDARD FEATURES
Reliability
Top quality hydraulic power unit applied to provide low noise, low vibration, smooth lifting and landing reliable operation. Punch formed forks to provide more strength and tip guide to provide higher efficient operation.
Appearance
Applied steel stamping and injection molding processes for front and back guard, which is robust, durable, and also environmental compliance.
Comfort
The compact body and semicircular design provide an ideal operation in limited space, and the wedge designed chassis greatly increases the passing ability.
Maintenance
AC motor without carbon brushes, maintenance-free, cost saving.
High performance
Powered by AC traction motor not only has good acceleration and climbing performance, but also low heat, brushless, maintenance-free.
