Description
Rated lifting capacity:3000kg Power:diesel Total weight:4350kg Wheelbase:1710mm…
Rated load capacity:3000kg:
Total weight:4350kg:
Standard lifting height：3000mm:
THE STEERING OIL TUBE AND WIRE HARNESS ARE ARRANGED INDEPENDENTLY

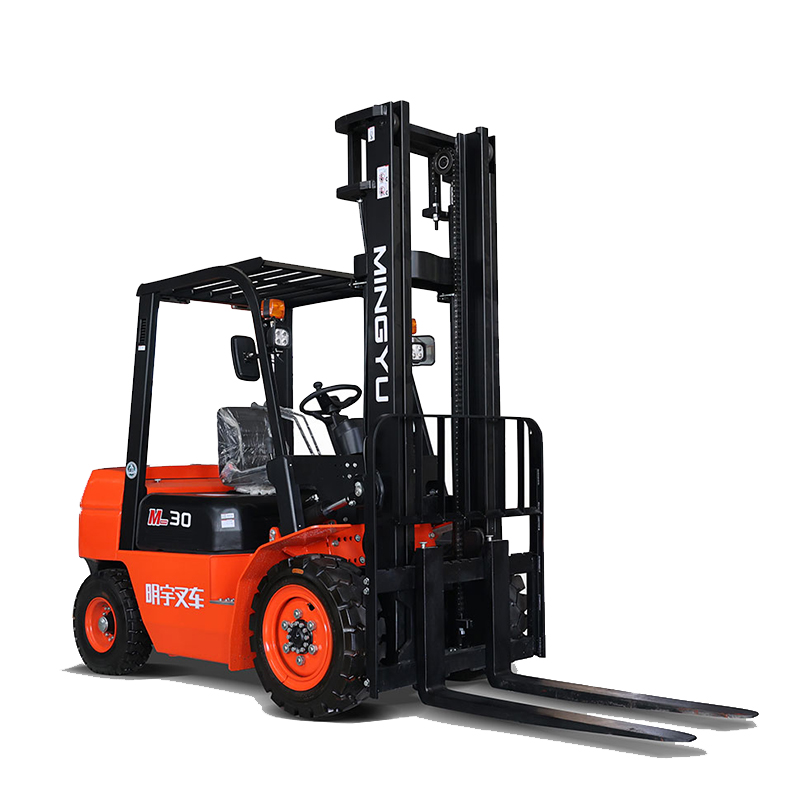

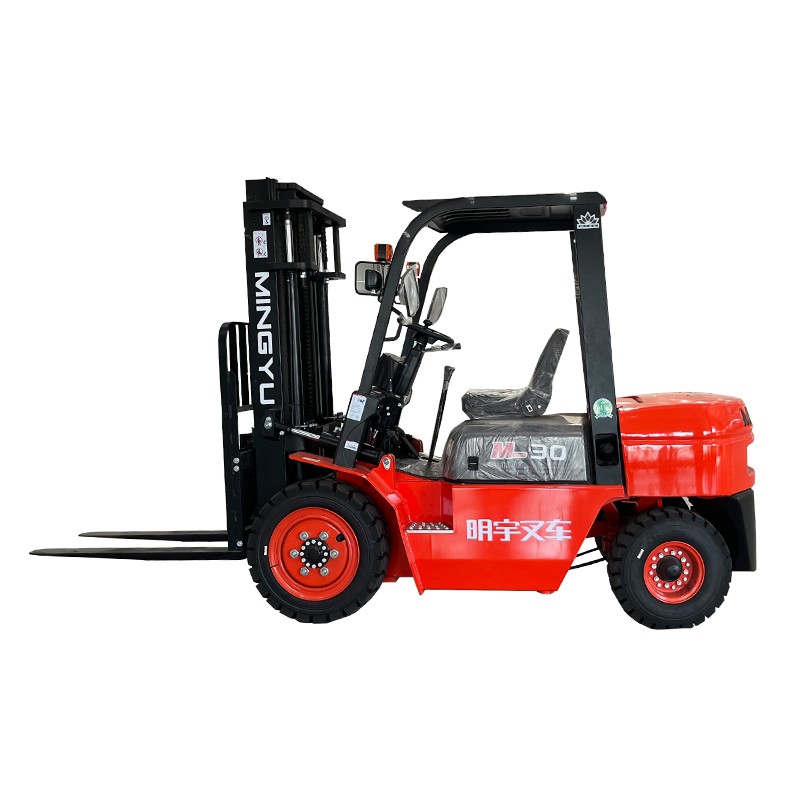

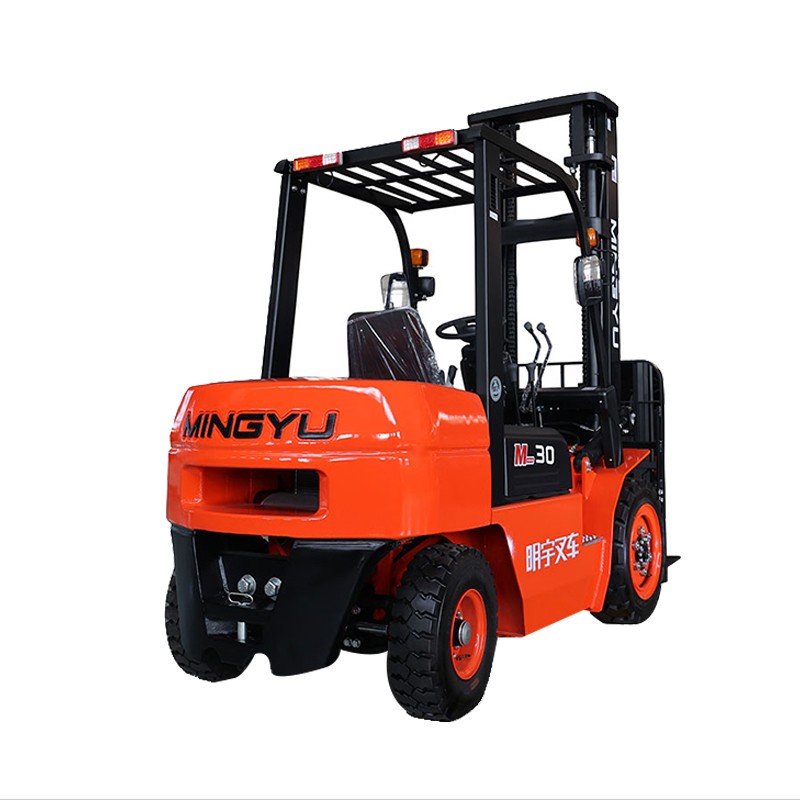

This new series forklift trucks that made with the latest technical design provide you excellent operating performance. MINGYU forklift trucks high standard performance, comfortable driving experience and the simple and safe operation will make your work handier
Key highlights
·Flexible and efficient operation
·Safe and reliable, easy to use
·Economic and environmental protection, cost saving
·People-oriented, comfortable driving
·Toyota seat
Parameter
| Model | CPC(D)30M | |
| Power Type | diesel | |
| rated load lifting capacity | 3000kg | |
| Load centre distance | 500mm | |
| driving style | Sit down | |
| length | with fork | 3870mm |
| without fork | 2695mm | |
| wideth | 1228mm | |
| height | Do not raise the mast height | 2140mm |
| Overhead guard height | 2100mm | |
| Max height at working | 4262mm | |
| Distance from seat surface to top guard frame | 970mm | |
| wheel base | 1700mm | |
| front overhang | 457mm | |
| rear overhang | 500mm | |
| front wheel track | 1000mm | |
| rear wheel track | 980mm | |
| minimum ground clearance | 165mm | |
| Standard lifting height | 3000mm | |
| free lifting height | 65mm | |
| Fork adjustment range | 260-1100mm | |
| minimum turning radius | 2520mm | |
| Minimum right-angle channel width(1100*1100 pallets) | 4277mm | |
| Gantry angle (front/rear) | 6/12° | |
| Maximum lifting speed without load | 480mm/s | |
| Maximum lifting speed with full load | 440mm/s | |
| Maximum operating speed without load | 20Km/h | |
| Maximum operating speed with full load | 20Km/h | |
| Max gradeability with full loading | 20% | |
| Weight unladen | 4290kg | |
| Number of wheels = driving wheels/steering wheels | 2/2 | |
| Tyre type (front/rear) | Pneumatic tyre/pneumatic tyre | |
| tyre size(front) | 28×9-15 | |
| tyre size(rear) | 6.50-10 | |
| Brake/driving brake | Foot Brake | |
| parking brake | Hand Brake | |
| Engine | quanchai/xinchai/Mitsbishi / Isuzu/Cummins | |
| rated power | 39kw | |
| rated speed | 2650r/min | |
●Environmental Friendly
– The emission meets EC and EPA new regulation.
– High efficiency hydraulic system to lower the fuel consumption.
– Using environmental friendly material.
– Damping device on the mast to reduce impact and vibration.
– Sound insulating and absorbing device are used to reduce the noise.
● Ergonomics design
– Using power braking system to reduce footplate strength.
– Control lever right located to effectively reduce drivers arm tiredness.
– Dual combined switch lever as a car to enable easy operating.
– Wide mast with good visibility.
– Wide space for boarding and driving , increasing leg space.
– Engine automatic monitor control, when the engine oil pressure is too low or water temperature is too high, the engine will be automatically shut off.
According to demands, can be matched with different accessories
