Description

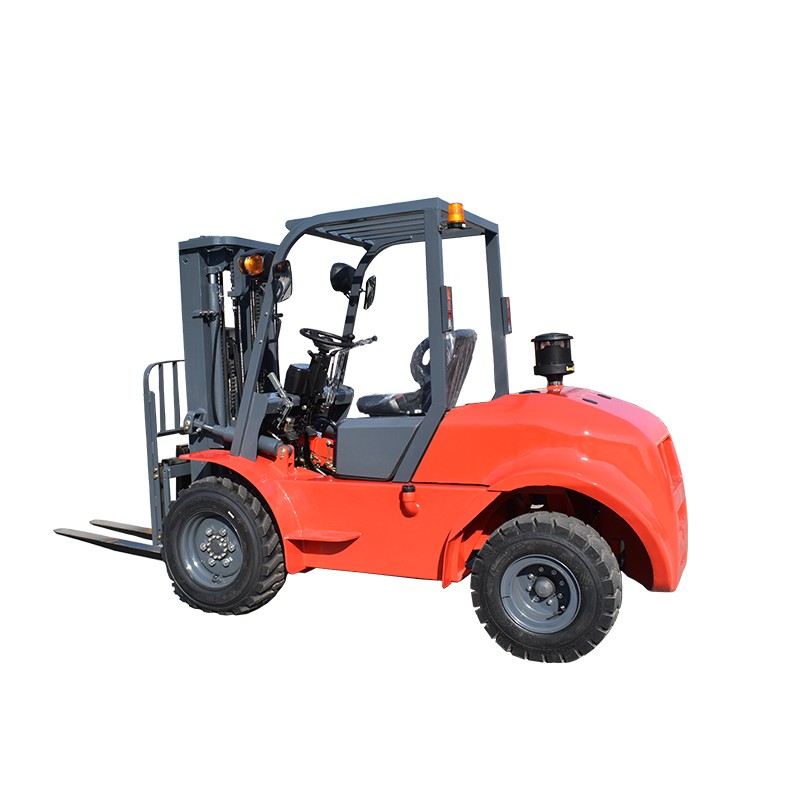

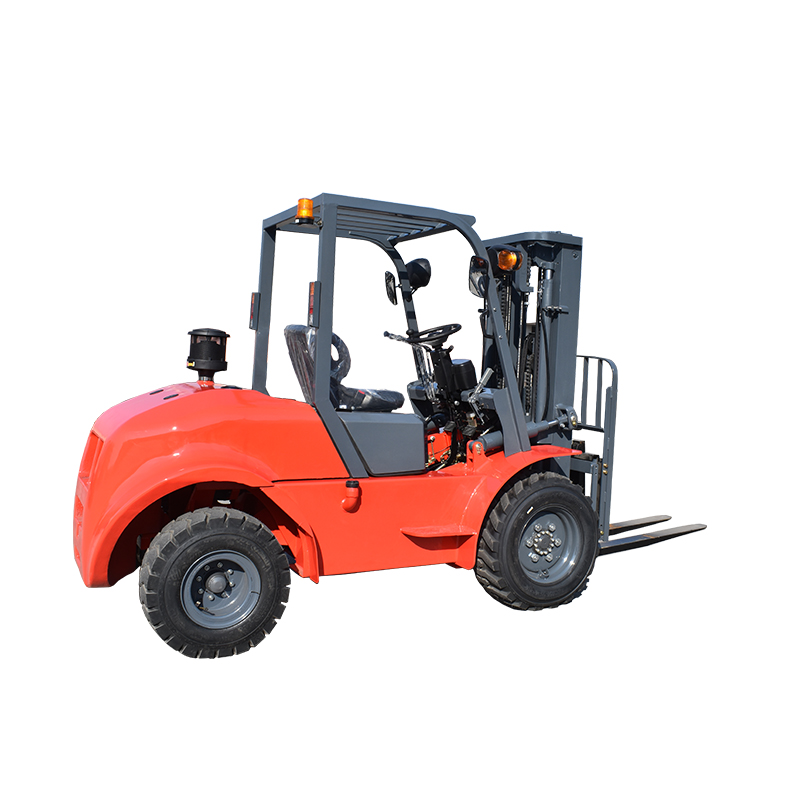

CPC30SY off-road forklift…
Rated load capacity:3000kg:
Total weight:4900Kg:
Standard lifting height：3000mm:
CPC30SY:
Product Feature
Introducing Mingyu’s 3-ton European style off-road forklift, engineered to tackle rugged terrain with unmatched reliability and performance. Built to exceed expectations in outdoor environments, this forklift combines robust design with advanced features to enhance productivity in challenging conditions.
1. Tough, compact rough terrain forklift 3000kg with the 4WD system.
2. High strength Frame and high ground clearance for uneven road conditions.
3. Deep pattern and large-width tires with good grip and skid resistance.
4. Widened Mast for a good view. Cast Steel for the drive axle.
5. Mechanical joystick, easy to operate.
6. Thickened mast, strong bearing capacity.
7. Hydraulic power steering wheel, easy to drive.
8. LED light, high brightness, energy saving.
9. Engineering rubber tires, suitable for various road surfaces.
10. Electrophoretic spray paint, smooth and not easy to rust
Parameter
| Model | CPC30SY | |
| Power type | diesel | |
| load capacity | 3000kg | |
| Load centre distance | 500mm | |
| lifting height | 3000mm | |
| fork size | Length × width × thickness | 45x125x1070mm |
| Mast tilt angle | front/rear | 5/15。 |
| min turning radius | 3900mm | |
| min ground clearance | 250mm | |
| Overhead guard height | 2450mm | |
| front overhang distance | 595mm | |
| Max driving speed | without load | 30km/h |
| Max lifting speed | load/without load | 450/550mm/s |
| Descending speed | load/without load | ≤600/≥300mm/s |
| Max climbing capacity | 25% | |
| length | without fork | 3090mm |
| width | 1600mm | |
| Max lifting height of fork (with stopper shelf） | 4350mm | |
| Landing height of the gantry | 2235mm | |
| tyre | front | 12-16.5-12PR |
| rear | 12-16.5-12PR | |
| wheel base | 1840mm | |
| wheel track | front/rear | 1250/1320mm |
| weight | without load | 4900Kg |
| accumulator | voktage/capacity | 12/80 |
| engine | type | xinchai/Yanmar |
| rated power | 40kw | |
| transmission type | Real-time four-wheel drive | |
| Drive gear front/back | 2/2 | |
| working pressure | 20 | |
·Optional imported Xinchai 、Yanmar 4TNE98 engine
·Optional mechanical gearbox, manual hydraulic gearbox, electromagnetic hydraulic gearbox
·According to different goods, different attachments such as sideshifter, distance adjustment forks, etc. can be assembled.

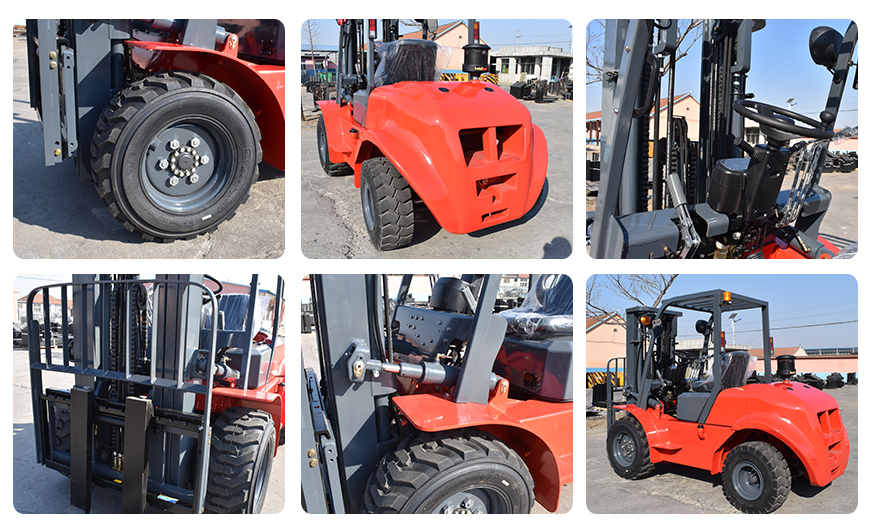

Detail
Applications:
Ideal for construction sites, forestry operations, mining environments, and more, the Mingyu 3-ton European style off-road forklift excels in:
Handling heavy loads over uneven terrain
Maneuvering in confined spaces
Ensuring reliable performance in all weather conditions
Experience Excellence in Off-Road Handling
Elevate your outdoor material handling capabilities with Mingyu’s 3-ton European style off-road forklift. Contact us today to discover how Mingyu can empower your operations with durable performance and unmatched reliability.
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option
