Description

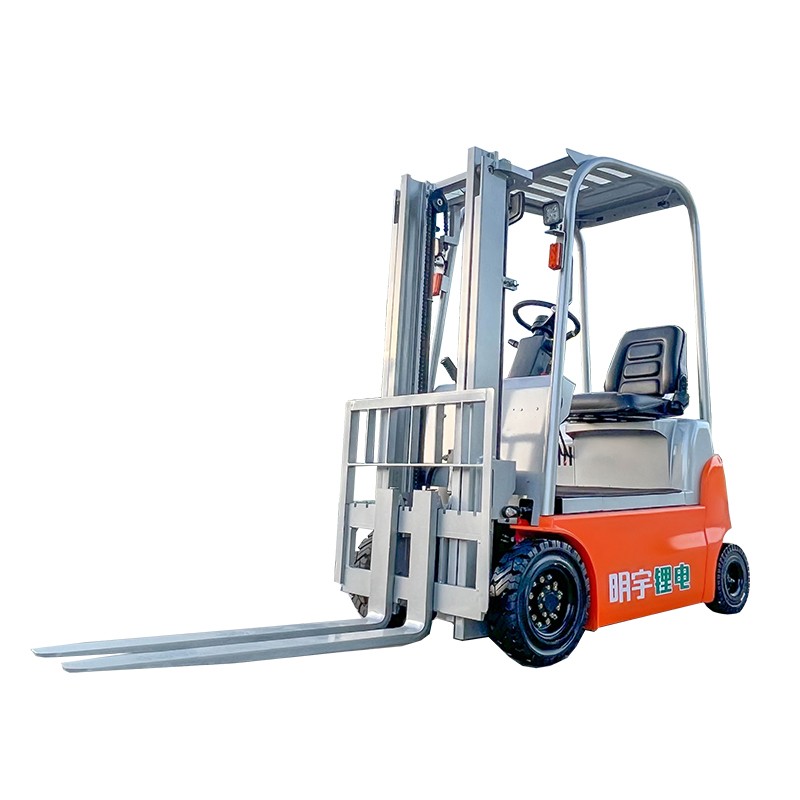

Electric forklift, Lithium battery forklift, Forklift for sale…
Load capacity ：1ton:
Power：Lithium Battery:
Operating weighht: 1800kg:
THE STEERING OIL TUBE AND WIRE HARNESS ARE ARRANGED INDEPENDENTLY
PRODUCT FEATURE
CPC-A series lithium battery forklifts are high quality products developed by MINGYU on the basis of the advantages of “lithium battery special structure” and “permanent magnet synchronous technology”. It has two models, one is standard model and the other is heavy-duty model. Following the family design of electric forklifts, they are provided with some key parts compatible with internal combustion forklifts, and optimized mainly on the overall performance, ergonomics, reliability, maintenance, outdoor operation ability and load capacity in a bid to meet customers’ use scenarios of internal combustion forklifts. The heavy-duty model is capable of meeting the application demand of users in heavy-duty working conditions.
Improved performance, superior quality
- Double permanent magnet synchronous motor system.
● Ergonomically designed forklift enables a wide view.
● Ground clearance increased.
● Operator’s view 20% improved
● Working efficiency 20% improved
● Loading capacity increased over 5%
● Stability 5% improved
● Reliability 40% improved
● Engine hood open angle increased to 80°
THE MAIN PARAMETER
| Model | CPD10 | |
| Power Type | accumulator | |
| rated load lifting capacity | 1000kg | |
| Load centre distance | 400mm | |
| driving style | Sit down | |
| length | with fork | 3020mm |
| without fork | 1920mm | |
| wideth | 930mm | |
| height | Do not raise the mast height | 2013mm |
| Overhead guard height | 1995mm | |
| Max height at working | 3403mm | |
| Distance from seat surface to top guard frame | 955mm | |
| wheel base | 1355mm | |
| front overhang | 315mm | |
| rear overhang | 280mm | |
| front wheel track | 806mm | |
| rear wheel track | 780mm | |
| minimum ground clearance | 103mm | |
| Standard lifting height | 2800mm | |
| free lifting height | 0mm | |
| Fork adjustment range | 160-782mm | |
| minimum turning radius | 1760mm | |
| Minimum right-angle channel width(1100*1100 pallets) | 2935mm | |
| Gantry angle (front/rear) | 5/10° | |
| Maximum lifting speed without load | 320mm/s | |
| Maximum lifting speed with full load | 250mm/s | |
| Maximum operating speed without load | 12Km/h | |
| Maximum operating speed with full load | 11Km/h | |
| Max gradeability with full loading | 10% | |
| Weight unladen | 1700Kg | |
| Number of wheels = driving wheels/steering wheels | 2/2 | |
| Tyre type (front/rear) | Pneumatic tyre/pneumatic tyre | |
| tyre size(front) | 5.00-8 | |
| tyre size(rear) | 15×4*1/2-8 | |
| Brake/driving brake | EMBR | |
| parking brake | EMBR | |
| Battery voltage/capacity | 60V/105AH | |
| drive motor power | 3Kw | |
| Oil pump motor power | 3Kw | |
360 Degrees of Quality, Durability, & Value
Mingyu’s 4-Wheel Electric Forklift comes with a 60-/105-volt electrical system along with an AC Drive and lift system. This product comes with a standard digital multifunction display with a built-in analyzer and provides self-diagnostics. The 4-Wheel forklift has no-tools floorboard access and a punched plate entry and exit step.
Ease of Service
Mingyu engineers forklift models with top components and meticulously planned integrated systems that deliver intuitive, dependable performance daily.Mingyu Forklifts don’t often require service, but when they do, it’s fast and easy — by design.Legendary Mingyu quality means more productivity over the lifecycle of your forklift, along with lower repair costs. The 3-Wheel Electric Forklift comes with maintenance-free AC motors as well as programmable maintenance timer. This forklift has 100% on-board programming and diagnostics, so you don’t have to remember when it’s time to service your lift.
According to demands, can be matched with different accessories
