Description

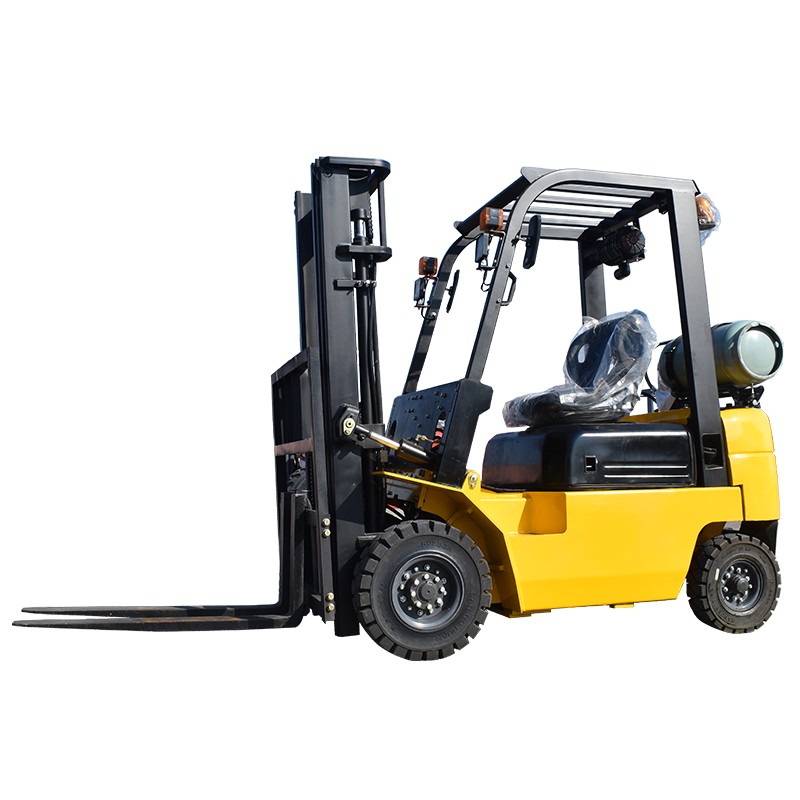

CPY15 gasoline/LPG forklift…
Rated load capacity:1500kg:
Total weight:2660kg:
Standard lifting height：3000mm:
Product Feature
CPCR15 is a dual-fuel forklift, gasoline/LPG, which uses a load sensing steering system to further improve the operating efficiency. It uses a suspended cabin (roof guard) technology to further reduce the vibration of the whole vehicle. It uses a fully enclosed instrument panel and bottom plate to isolate chassis noise, reduce ear noise, hot air backflow isolation device, optimized cooling air duct, aluminum plate-fin water tank, improve the cooling capacity and ensure the reliable operation of the engine. It can be matched with imported engines such as Guangqing engine Nissan etc imported engine, and can be equipped with sideshifter, and the lifting height can be increased
·The overall performance is improved
·Ergonomic performance improvement
·Safety and reliability improvement
·Improved maintenance convenience
·Energy conservation and environmental protection
Parameter
| power | gasoline/LPG |
| Rated load capacity | 1500kg |
| Load center distance | 500mm |
| wheelbase | 1410mm |
| weight | 2660kg |
| tyre | 6.50-10-10PR |
| 5.00-8-8PR | |
| Standard lifting height | 3000mm |
| engine | guangqing / Nissan |
| Minimum turning radius | 1955mm |
| Maximum driving speed | 13.5Km/h |
| Maximum lifting speed | 590mm/s |
Technical features remarkably improved, superior quality
Vibration
·Cushion connection and whole suspension cab can absorb the vibrations of truck effectively.
Noise
Fully enclosed dashboard and lowering damping device inside the lifting system reduces mast shock and vibration.
Workspace
·The operation space is enlarged by heightened overhead guard and using large arc shape of the overhead guard’s front leg
·Semi-suspension seat, small steering wheel, electro-hydraulic direction changing and automobile type double combined switch effectively improve the operation comfort.
Working efficiency
·Small turning radius makes steering flexible and easy.
·The truck has fast lifting speed, good sloping ability and high efficiency.

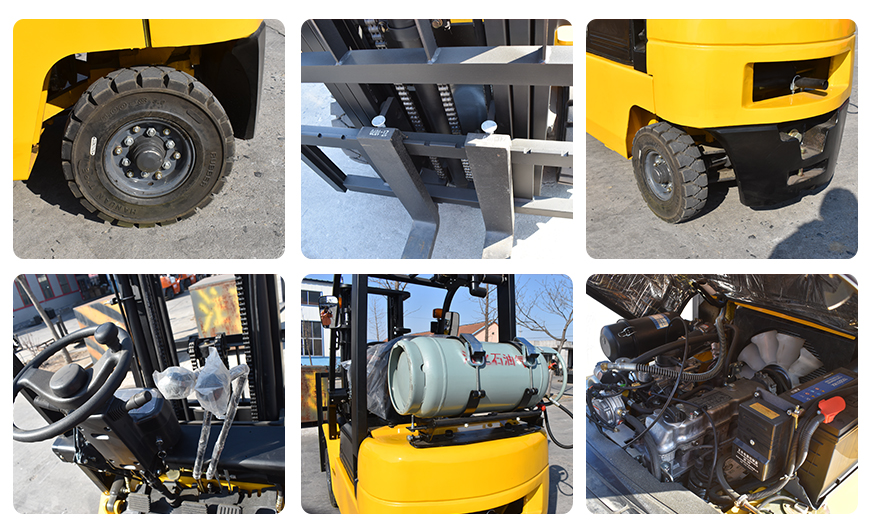

Detail
According to demands, can be matched with different accessories
