Description

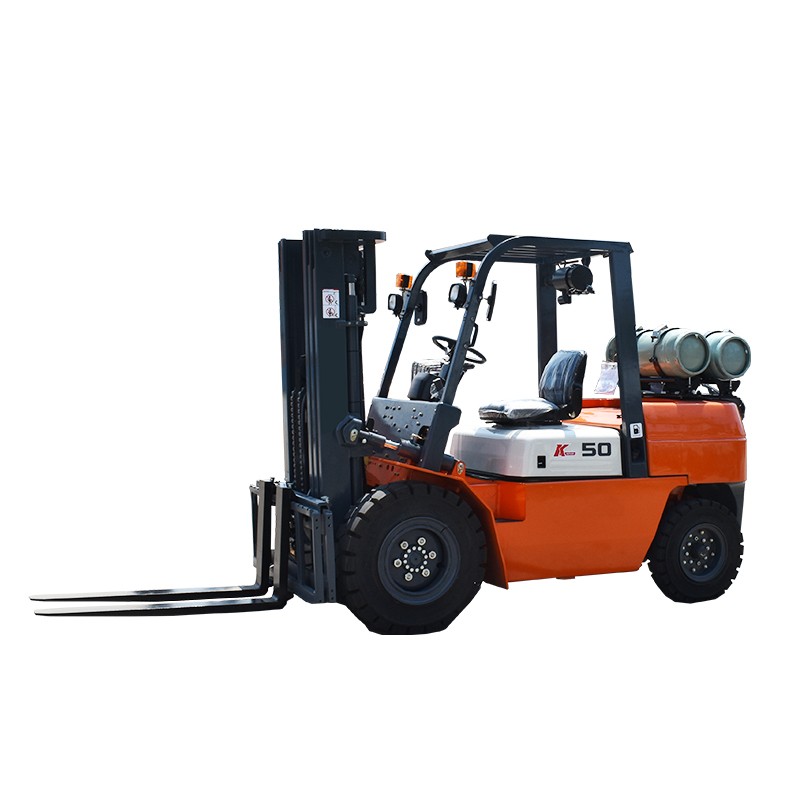

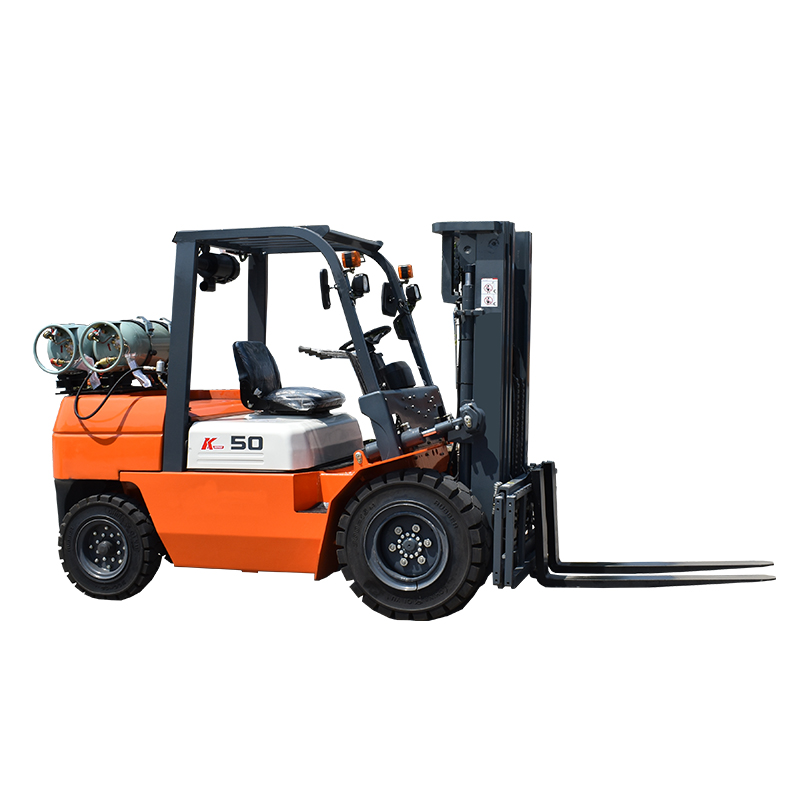

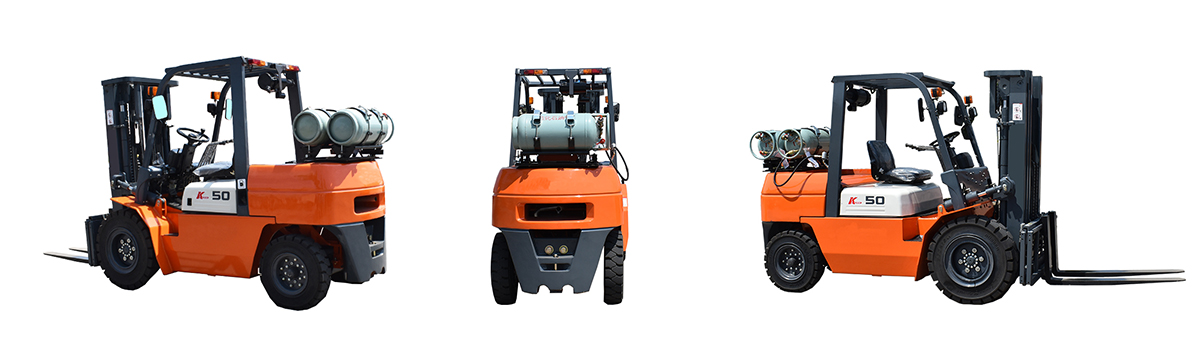

CPY50 gasoline/LPG forklift…
Rated load capacity:5000kg:
Total weight : 5300kg:
Standard lifting height：3000mm:
THE STEERING OIL TUBE AND WIRE HARNESS ARE ARRANGED INDEPENDENTLY
PRODUCT FEATURE
MYZG perform a new design for it, Technical features remarkably improved, superior quality,Can match Guangqing and Nissan engine
Energy efficiency
·With optimized hydraulic system, the truck is more energy-efficient and has lower fuel consumption.Environmental protection
·The engine satisfies the CARB 4 regulation
·The truck can effectively prevent the volatilization of the fuel with the pressure fuel cap.
Reliability
The hot air isolating device, optimized thermal duct and the aluminum plate-fin type radiator improve cooling ability and ensure engine working reliability.
·The optimized design of key parts including frame, mast, overhead guard and steering axle improve the truck’s safety and reliability.
Maintainability
·Engine hood open angle increased to 80°, contributes to quick and convenient maintenance.
·Smaller Front floor board makes it more convenient to maintain the transmission box.
Working efficiency
·Small turning radius makes steering flexible and easy.
·The truck has fast lifting speed, good sloping ability and high efficiency.
·High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly w
THE MAIN PARAMETER
| character | Model | CPCR50 | |
| Power type | Gasoline /LPG | ||
| load capacity | 5000kg | ||
| Load centre distance | 500mm | ||
| lifting height | 3000mm | ||
| Mast tilt angle | 6/12 | ||
| min turning radius | 2680mm | ||
| min ground clearance | 135mm | ||
| Overhead guard height | 2210mm | ||
| front overhang distance | 495mm | ||
| performance | Max driving speed | load/without load | 22km/h |
| Max lifting speed | load/without load | 330mm/s | |
| max drawbar pull | load/without load | 18.5KN | |
| Max climbing capacity | 20% | ||
| size | length | 2975mm | |
| width | 1380mm | ||
| Max lifting height of fork (with stopper shelf） | 4250mm | ||
| Landing height of the gantry | 2185mm | ||
| chassis | tyre | front | 300-15-18PR |
| rear | 700-12-10PR | ||
| wheel base | 1960mm | ||
| wheel track | front/rear | 1000/970mm | |
| weight | without load | 5300kg | |
| drive | accumulator | voktage/capacity | 12/80V/Ah |
| engine | model | GUANGQING/NISSAN | |
