Description
1.38T wheel loader,underground loader,china diesel loader…
Weight : 3200 kg
Tyre size: 20.5/70-16
Rated power : 55kw
Product Feature

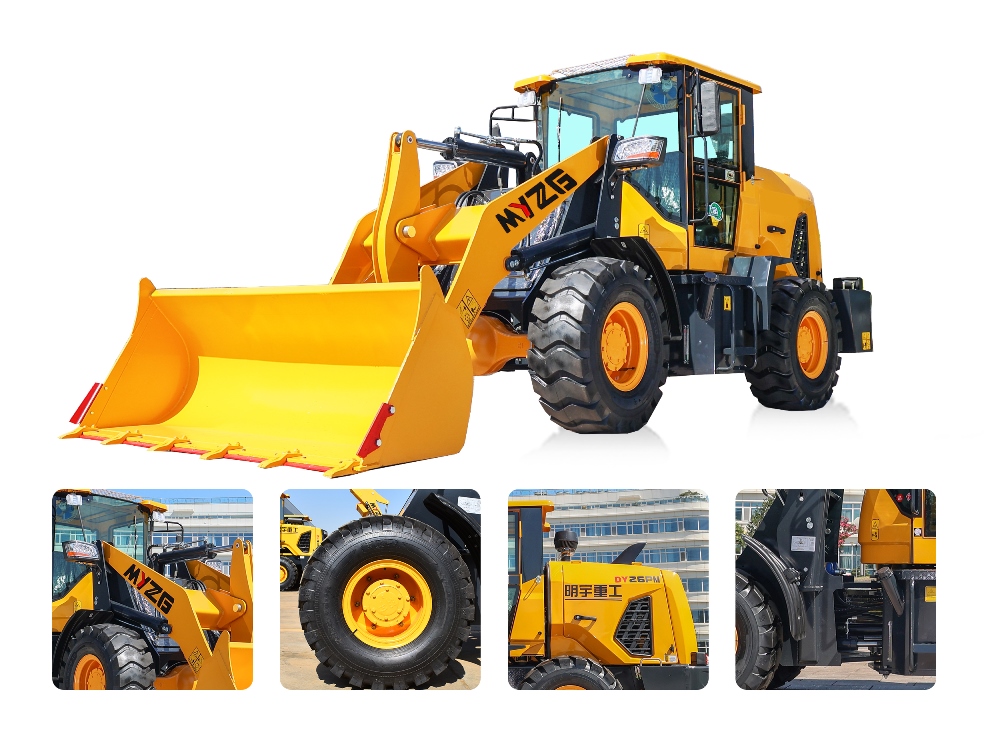

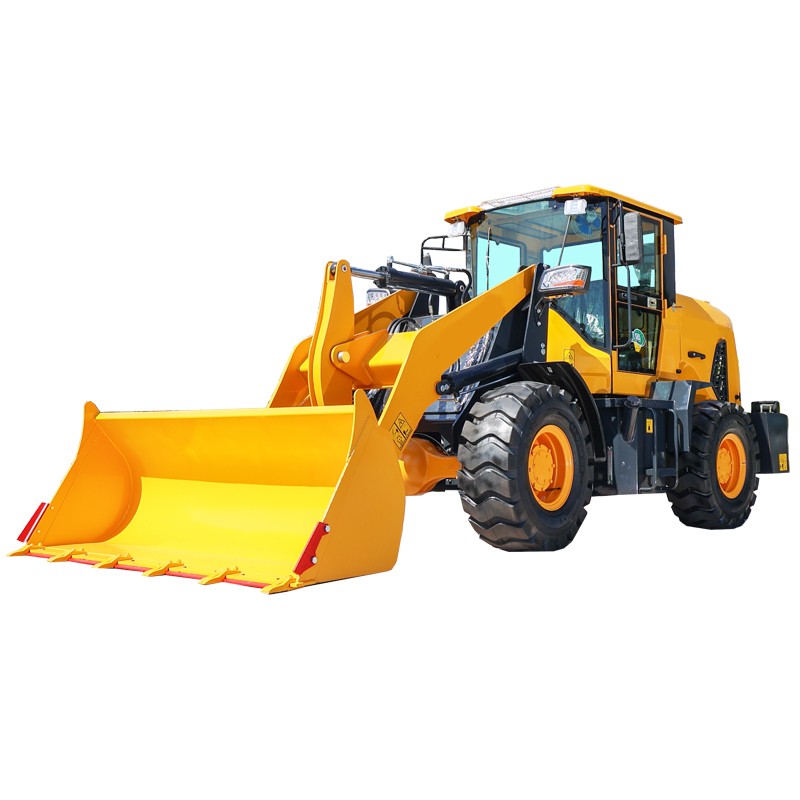

Dy26 is a new underground loader designed by Minyu, low design, suitable for all environments, turning more calmly, weight axle, safe and reliable, strong and efficient continuous operation, full load climbing, relaxed, fast response speed.
- Traction force ≥ 24KN, rising force 25KN, outstanding capability.
- Turning radius 3635mm, strong adaptability
- Extra long wheelbase, more heavy duty
Parameter
| rated load capacity | 1380kg |
| rated bucket capacity | 0.6m³ |
| operating weight | 3200kg |
| engine model | QUANCHAI 4B2-75M22 |
| rated power | 55kw |
| rated speed | 2400 r/min |
| dimensions | 5530*1940*2220mm |
| dump height | 3000mm |
| dump distance | 400mm |
| min.turning radius | 3635mm |
| wheel base | 2430mm |
| wheeltrack | 1490mm |
| tyre size | 20.5/70-16 |
DY26 is a product independently researched and developed by MYZG. It is equipped with national engine, high-quality split type double change, four-wheel drive, full hydraulic steering, strong power, higher efficiency and stronger environmental adaptability.
•Engine has the characteristics of low noise, low fuel consumption, reliable operation and long service life.
• The adoption of single-stage single-phase three-element hydraulic torque converter equipped with axis-fixed gearbox makes full use of engine power and increases the torque, ensuring the greater traction of complete vehicle.
• The single-plate rear frame and four-plate front frame adopt joint bearings, ensuring flexible operation and small turning radius.
• The optimized working device provides the huge breakout force of boom, the great full coefficient of bucket and high productivity.
• Load sensing hydraulic steering system is adopted. On the condition that the steering system is preferentially satisfied, the work device hydraulic system sharing one pump with the steering hydraulic system is supplied to reduce power consumption of hydraulic system and system power loss, and improve working efficiency.
Detail
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.
