Description
wheel loaders for sale,loader for sale,front end loader…
load capacity: 1.2t
rated bucket capacity: 0.55m3
operating weight: 2.8t
Product Feature

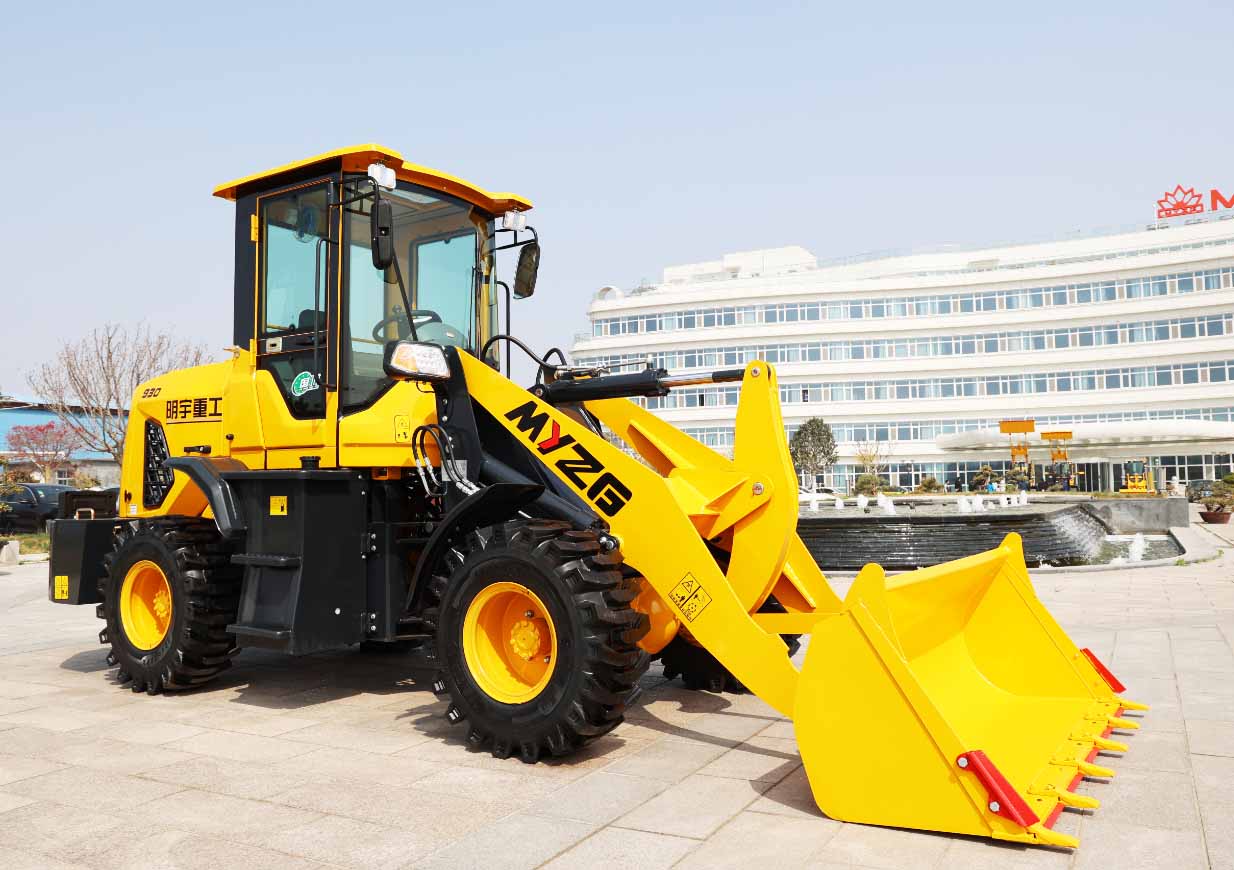

Minyu J26, MYZG just developed mini loader, is the alley magic, although small,but work a lot, shovel loading force is very strong, the use of narrow wheel base,suitable for a variety of conditions
- Traction force ≥ 16KN, rising force 19KN, outstanding capability.
- Turning radius 3550mm, strong adaptability
- Extra long wheelbase, more heavy duty
- Key highlights
Parameter
| rated load capacity | 1200 kg |
| rated bucket capacity | 0.55m³ |
| operating weight | 2800kg |
| engine model | QUANCHAI 4B2-52M22 |
| rated power | 38kw |
| rated speed | 2400 r/min |
| dimensions | 5420*1790*2645mm |
| dump height | 3000mm |
| dump distance | 400mm |
| min.turning radius | 3550mm |
| wheel base | 2350mm |
| wheeltrack | 1390mm |
| tyre size | 1200-16 |
Variable hydraulic system is adopted in which oil flow is supplied to demand, for less power loss and higher efficiency.
Ergo-power electric control gearbox enables smooth and comfortable shifting.
The cooling fan with temperature control is driven by a hydraulic motor. Reversal rotation available to extrude dust.
Integrated control handle, easy to operate.

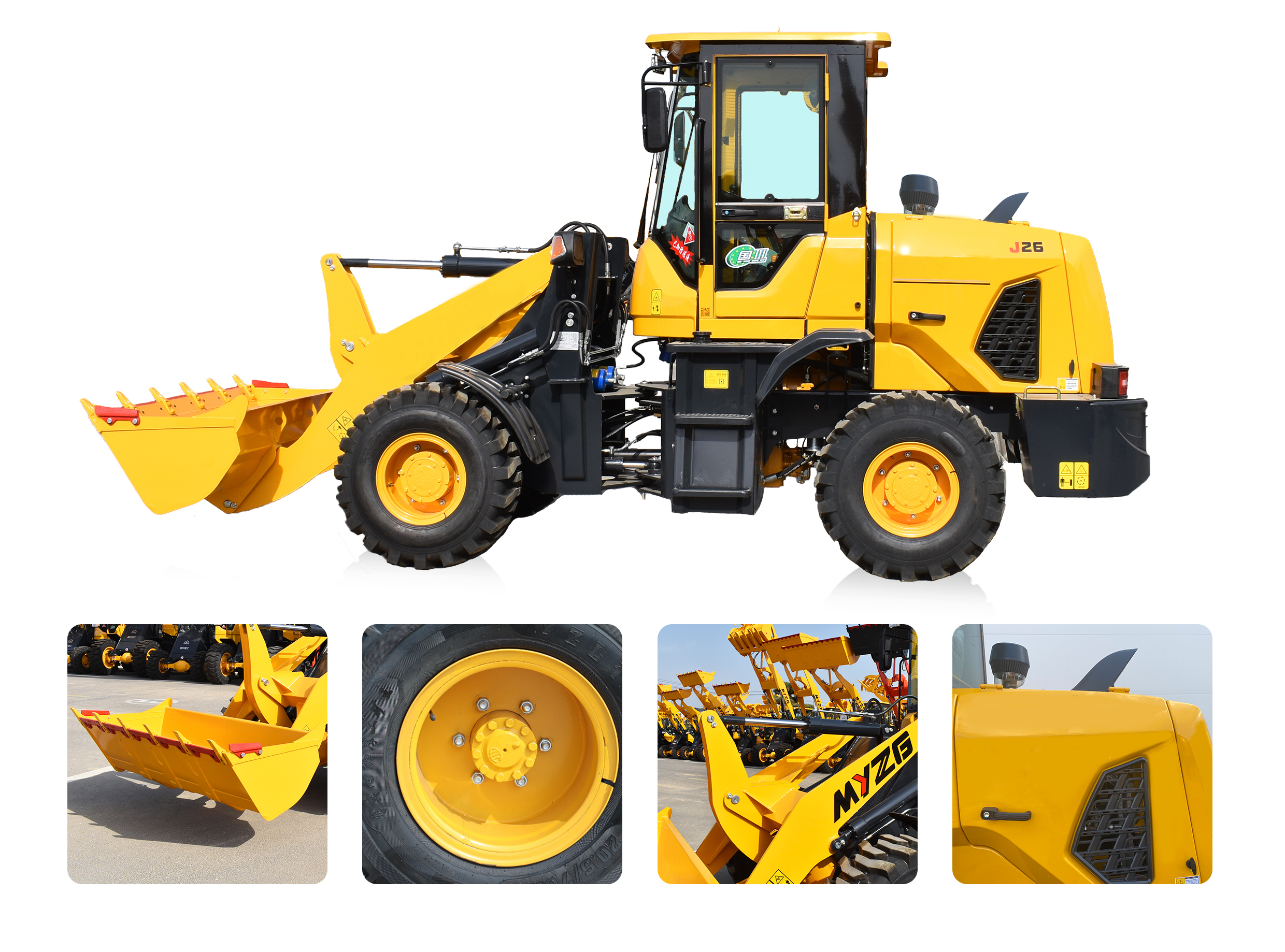

Detail
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.
