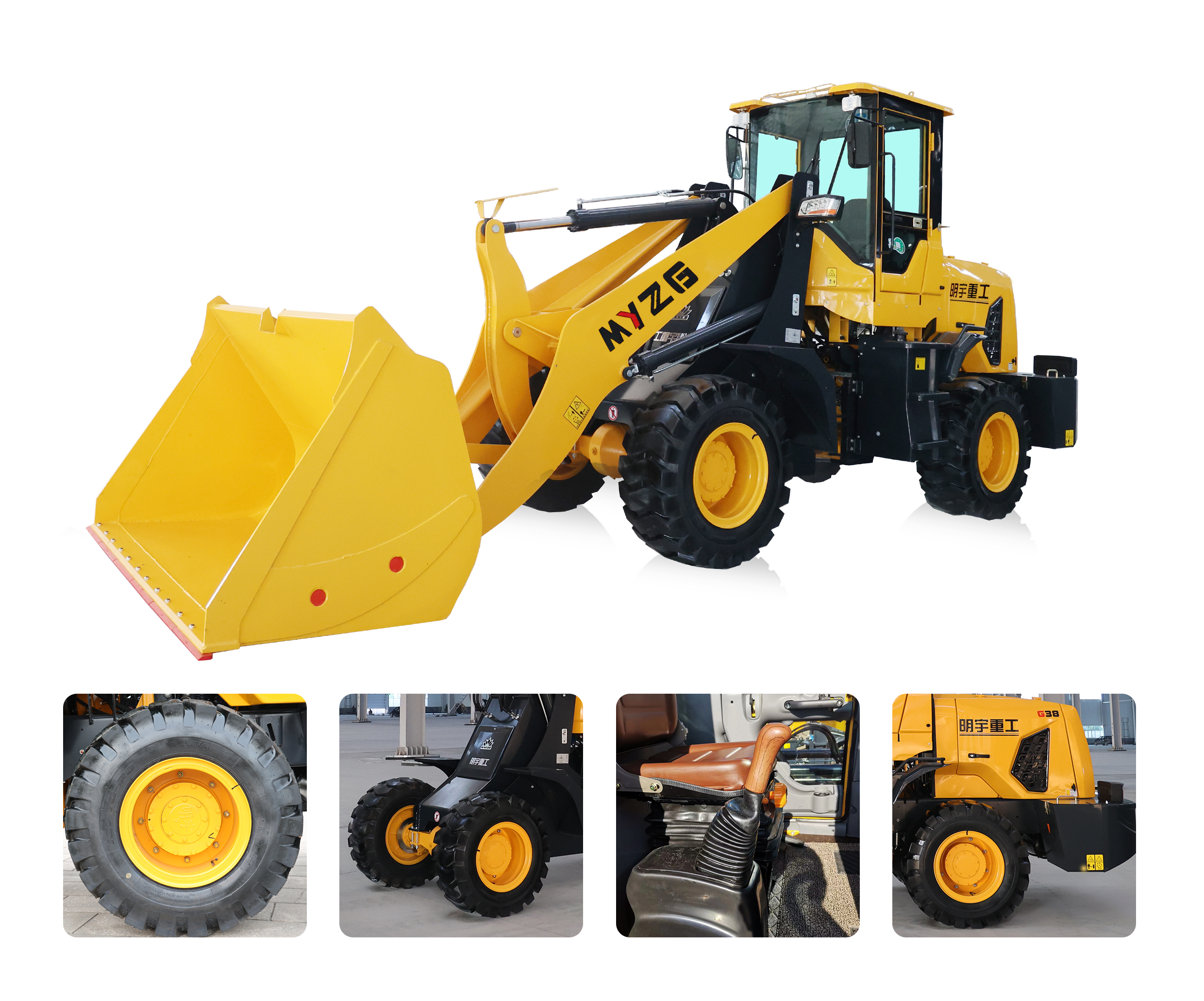

G38 2200kg Wheel Loader Durable Construction Equipment Perak

Description

wheel loader,china construction equipment,heavy machinery…

Operating Weight: 6250kg
Bucket Capacity: 2m³
Load Capacity: 2200kg

Product Feature

Minyu G38 grain loading artifact, 4.5m unloading height, to meet different unloading needs, 2.15 increase the bucket, capacity up to 2 cubic, efficient forward, enjoy the joy of harvest.

Traction force ≥ 30KN, rising force 20KN, outstanding capability.
Turning radius 3560 mm, strong adaptability
Extra long wheelbase, more heavy duty

Parameter

Rated load capacity	2200kg
Rated bucket capacity	2m3
Operating weight	6850kg
Engine model	QUANCHAI 4C6-88M22 (EURO III / EURO V)
Rated power	76kw
Rated speed	2400 r/min
Dimensions	710022503090mm
Dump height	4500mm
Dump distance	670mm
Min.turning radius	3560mm
Wheel base	2730mm
Wheeltrack	1600mm
Tyre size	16/70-20

1. Meritor axles with excellent reliability and bearing capacity are adopted to complete the operation in various heavy-duty working conditions.

2. The optimal matching of power system and transmission system greatly increases traction force. Long span articulated structure is adopted for larger ground clearance, ensuring good passing-through performance even in winding mountain roads.

3. Upgraded sealing technology in the hydraulic system and butt welding technology of steel tubes improve the sealing performance significantly.

4. CAE analysis is applied to structural components system to optimize the structure. Welding robot is used to ensure reliability of the structure components system.

5. Central articulated structure enables the rear wheel track to overlap the front one, decreasing power loss while increasing the tipping load and the breakout force for excellent performance in heavy-duty working condition.

6. Optimized working devices increase the lifting force, load ratio of bucket and overall efficiency.

7. ZF electronic controlled gearbox is adopted for excellent reliability and easy & comfortable operation, which reduces the driver’s fatigue when performing continuous work, thus improving the efficiency.

8. Full decorated cab with all-around clear visibility, ample space, low noise, comfortable seat and optimized shock damping system provides a pleasant driving environment with A/C as standard configuration.
