Description
China loader,multifunction loader, diesel loader…
load capacity: 2 ton
tyre size: 16/70-20
operating weighht: 5500kg
Product Feature

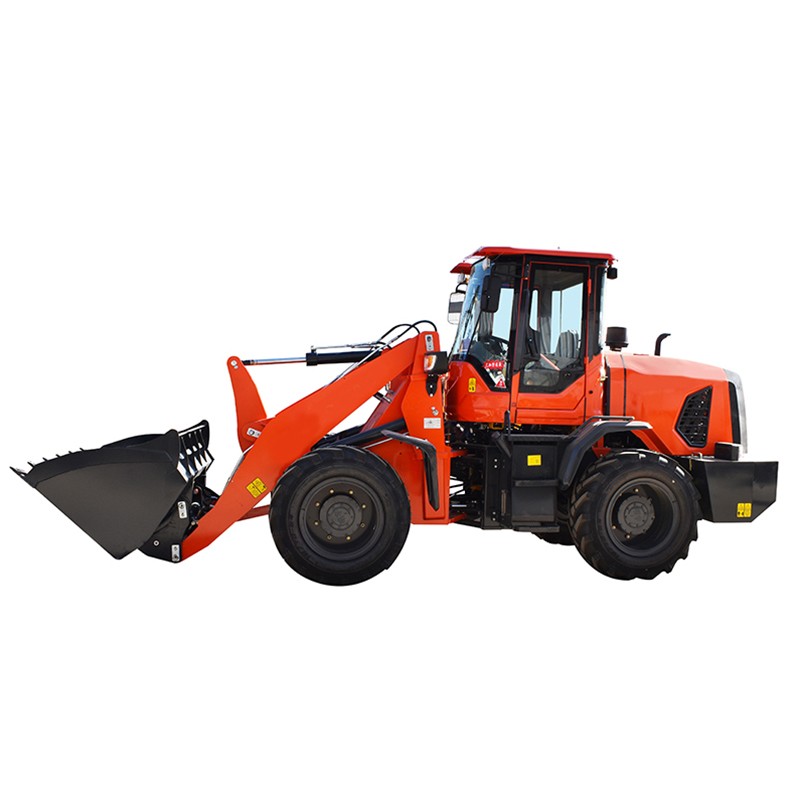

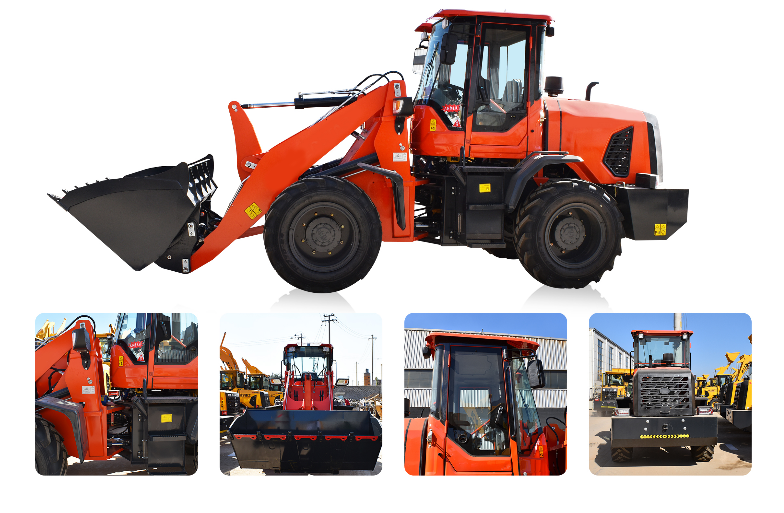

MYZG molot 2500GT , four-wheel drive, full hydraulic steering, powerful power, can choose a variety of work devices and auxiliary tools, to achieve a multi-machine, widely used in infrastructure, sanitation,farmland, road repair, ports, freight yards and other places of loading, traction, lifting, transportation and other operations.
MOLOT 2500GT is a long wheelbase product, featuring strong power and reliability with comfort, mainly used in construction site, road construction, mine, station and query for various working conditions, such as ore, sandstone, coal and earthwork.
- Traction force ≥ 34KN, rising force 22KN, outstanding capability.
- Turning radius 2950mm, strong adaptability
- Extra long wheelbase, more heavy duty
Parameter
| Rated load capacity | 2000kg |
| Rated bucket capacity | 1.2m³（big bucket:1.8m³） |
| Operating weight | 5500kg |
| Engine model | quanchai 4c6-88m22
(EURO III / EURO V) |
| Rated power | 76kw |
| Rated speed | 2300/2400 r/min |
| Dimensions | 6475*2250*2815mm |
| Dump height | 3550mm |
| Dump distance | 950mm |
| Min.turning radius | 2950mm |
| Wheel base | 2515mm |
| Wheeltrack | 1615mm |
| Tyre size | 16/70-20 |
1.High performance engine is adopted for strong power, low fuel consumption, low noise and reliability.
2.Double turbine hydraulic torque converter could make full use of engine power to increase the torque, contributing to overall large traction force. Power shift planetary gearbox that used for 3 ton loaders is adopted for high transmission efficiency and long service life.
3.New type reinforced drive axles are adopted for large bearing capacity and high reliability. Reasonable distribution on front and rear axles ensures overall stability.
4.Joystick and large displacement working pump contribute to easy operation.
5.Articulated frame features flexible steering, good passing ability, large bearing capacity and good stability.
Detail
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.
