Description
chinese wheel loader manufacturers，wheel loader grapple forks，Multi-Function Wheel Loader…
load capacity: 2.2ton
tyre size: 16/70-20 / 16/70-24
weighht: 6280kg
Product Feature

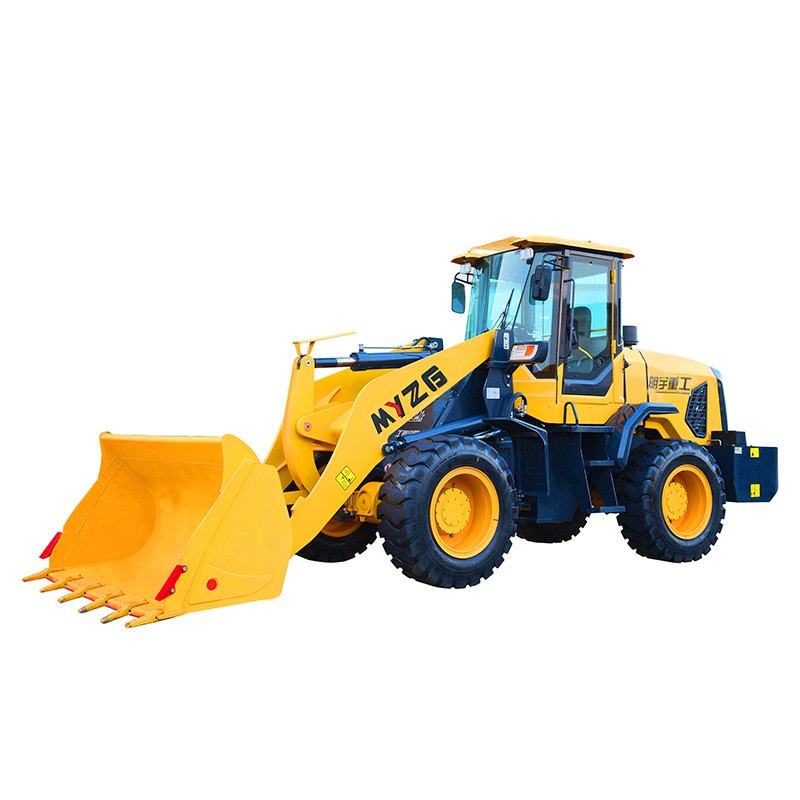

ZL946A loader of Mingyu Heavy Industry, the front and rear frame adopts the special box structure of Mingyu, the center of gravity of the whole machine is reasonable distribution, strong bearing capacity, equipped with 1.2-1.7 cubic large capacity bucket for different working conditions.
·Traction force ≥ 40KN, rising force 40KN, outstanding capability.
·Turning radius 3380 mm, strong adaptability
· Extra long wheelbase, more heavy duty
Parameter
| rated load capacity | 2200kg |
| Bucket width | 1.2m³ （big bucket:1.8m³） |
| operating weight | 6280kg |
| engine model | YUCHAI YCD4J22T-115
yunnei (euro v) |
| rated power | 85kw |
| rated speed | 2400r/min |
| dimensions | 6700*2210*2990mm |
| dump height | 3500mm |
| dump distance | 870mm |
| min.turning radius | 3600mm |
| wheel base | 2680mm |
| wheeltrack | 1700mm |
| tyre size | 16/70-20 / 16/70-24 |
HIGH EFFICIENCY
· YUCHAI Engine Tier 2, higher power to 85kW，optional Yunnei, Xichai,Cummins engine.
· The energy-saving low-speed engine fits well with the high-efficiency and realizes a comprehensive energy saving of more than 10%
· 2nd generation engine body, more robust and can lengthen the maintenance period, reduce the operating cost
HIGH RELIABILITY
· Axis-Fixed power shift gearbox with high/low speed, F4/R2
· Easy operation, high reliability, convenient maintenance
HEAVYDUTY
· MYZG second generation enhanced driving axle is the best in performance, with large bearing capacity to meet the driving force and escape ability of bad conditions
· Stable and reliable performance, convenient operation and maintenance
COMFORTABILITY
· Arc shape front glass, giving more operating spaces and good vision
· New ZL series cab, larger space, better sealing performance, more comfort and low noise
· More air vents and new rock switch arrangement bring you good driving experience
SERVICEABILITY
· New Engine hood provides larger opening angle, enable the technician do the service and repair easily
· The standard is made of special engineering plastic material, which is not perishable compared with iron, and the noise is minimized. The machine will not resonate like iron when running, and the iron can also be replaced according to customer requirements Oil filters, air filters are all arranged in one side, which enable the maintenance at one stop
Detail
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.
