Heavy-Duty Mini Wheel Loader for Multi-Terrain

Description

Rated operating capacity:600kg Overall dimension (L×W×H):3680×1050×2300mm Rated bucket capacity:0.2m3 Bucket Dumping Height:1850mm …

Rated operating capacity:600kg:
Overall dimension:3680×1050×2300mm:
Rated bucket capacity:0.2m3:

Product Feature

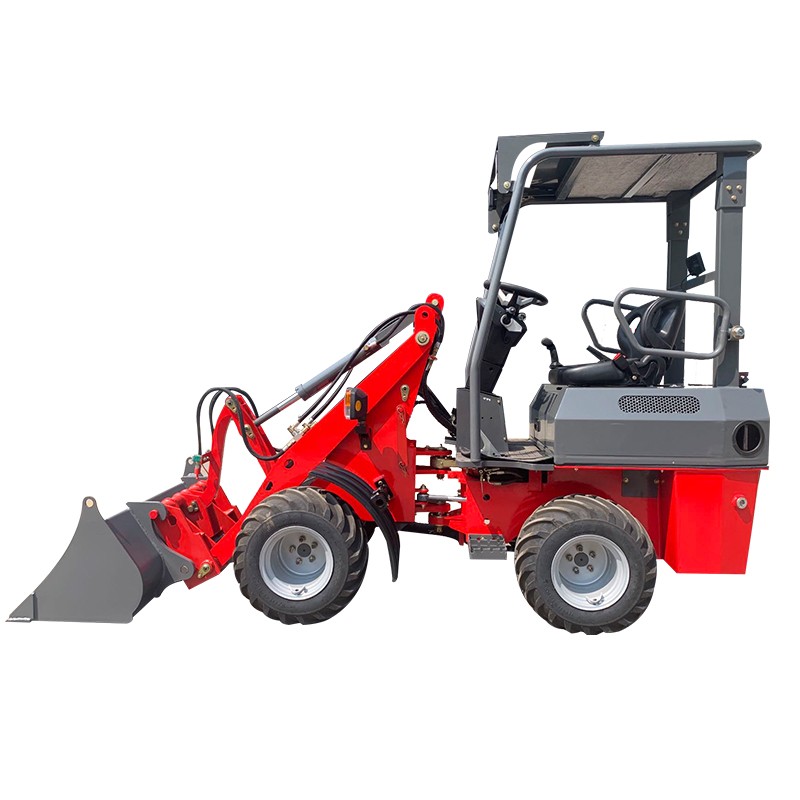

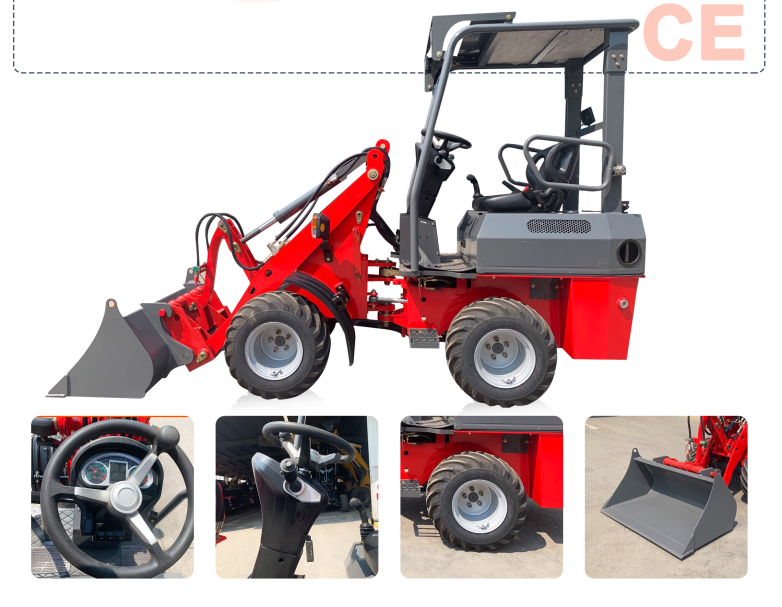

ZL906-807 is a mini wheel loader known for its compact design and manoeuvrability, and can be used for all kinds of odd jobs. Especially this machine is perfectly suited to prevail where there are space constraints. It can be driven on the foot path without a problem because it only has a width of 1.05 m. It is even possible to transport the machine on a car trailer thanks to its low dead weight.
The carefully chosen components make this machine extremely reliable, which in addition, is equipped with a ROPS/FOPS approved safety roof.

906 his biggest advantage is flexible steering, suitable height, warehouse can enter, Italy imported hydrostatic system, joystick, hydrostatic special axle, suitable for a variety of terrain environment

●quick change, safety cover,
●Adjustable instrument, adjustable seat,
●Valta battery, Perkins engine
●6×12.00-16 vacuum tires

Parameter

rated load capacity	600kg
rated bucket capacity	0.2m³
operating weight	1500kg
engine model	Perkins 403J-11 (EURO V) QUANCHAI (Stage II)
rated power	18.4KW
dimensions	3690×1050×2300 mm
dump height	1850 mm
Dump distance	550mm
min.turning radius	1550mm
wheel base	1340mm
tyre size	26X12.00-16

1-MYZG articulated oscillating floating joint

The backbone of the MYZG ER4 design: The legendary articulated oscillating floating joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction. In addition, the machine has unrivalled manoeuvrability.

2-High quality powder coating

Quality creates added value. The powder coating is a key feature of the MYZG quality standard. In contrast to the conventional wet painting, it greatly increases the service life and is more efficient and also
environmentally friendly in the process.

3-One bigger and stronger lift cylinder

MYZG always installs strong lift cylinder in all ER4 series wheel loader models. This guarantees that the load distribution is always optimally transferred to the loading arm. In addition, the entire loading system gains stability. The size of the lift cylinder is adapted to the respective size of the machine.

4-Perfectly matched P-kinematics

The angled loading arm is designed to be particularly sturdy and torsion resistant. The kinematics are adjusted to the size of the machine – this ensures optimal balances of power for every machine. The advantage of P-kinematics lies in the exact parallel motion across the entyre lifting area.

5-Stainless steel steering stops

At a full steering stop, the front and rear carriage of the machine touch. With MYZG, this area is particularly well-protected by the stainless steel steering stops and there is no corrosion. This provides for value preservation!

6-Large selection of attachments

Use your machine as a multi-tool: you have a wide selection of attachments available for your MYZG machine.

7-Large selection of tyres

The optimal tyres for every subgrade: you have a wide selection of different tyres available for your MYZG machine.

8-Secure canopy with restraint system

Maximum safety that is state of the art. As a standard, MYZG installs a canopy with a restraint system on mini models. The canopy and the restraint system for the operator meet the ROPS and FOPS protection.

9-Quick and easy tool change

Thanks to the hydraulic quick-change system, attachments can be easily and conveniently exchanged. In this way, your machine is again ready for application at once. This increases productivity and profitability. The exchange of the tool takes place through 2-hand operation, which makes an unwanted change impossible — safety always comes first at MYZG!

10-Good maintenance accessibility for all ER4 series models

There is service hole inside the cabin, and the engine hood can be opened backward widely. This makes the engine, hydraulic system and electrical system easily accessible for our ER4 series models.
