Description
china wheel loaders,Hot sale loaders…
load capacity: 1.6 ton
rated bucket capacity: 0.85m3
operating weight: 3450 kg
Product Feature

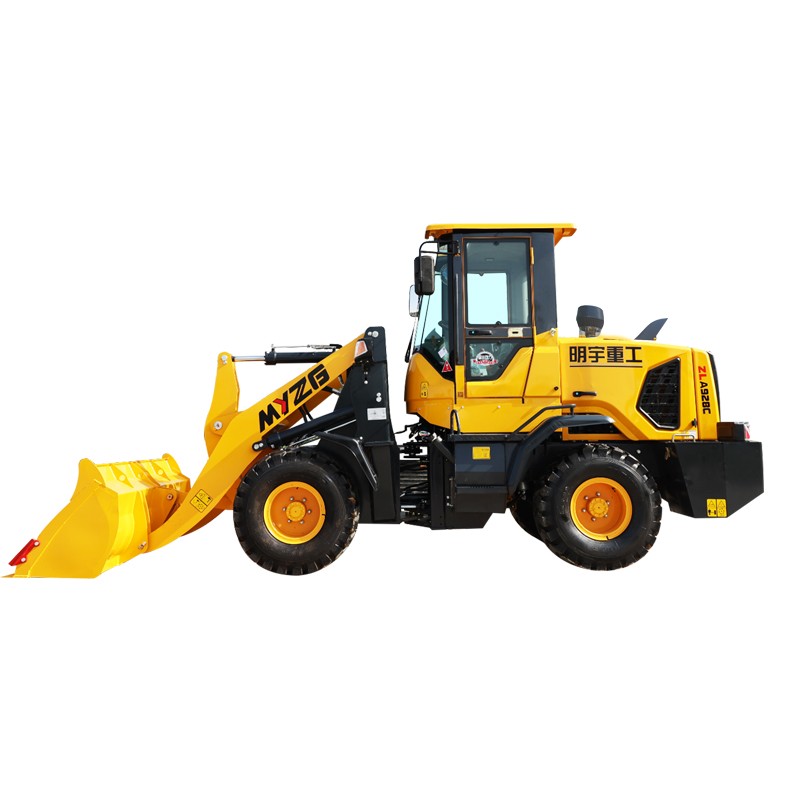

ZL-A928c is a self-developed product of Mingyu. Adopt high-quality engine, thickened manganese steel material, strengthen cast steel integrated bridge, new hydraulic system, more lifting force, higher work efficiency, more suitable for material shovel transportation and loading and unloading operations, widely used in coal yard, railway, construction, stone yard and other workplaces, is a widely used, reliable and efficient products.
- Traction force ≥ 36KN, rising force 25KN, outstanding capability.
- Turning radius 2750mm, strong adaptability
- Extra long wheelbase, more heavy duty
Parameter
| Rated load capacity | 1600kg |
| Rated bucket capacity | 0.85m3 |
| Operating weight | 4000kg |
| Engine model | QUANCHAI 4B2-52M22
(EURO III / EURO V) |
| Rated power | 38kw |
| Rated speed | 2300/2400 r/min |
| Dimensions | 5540*1940*2720mm |
| Dump height | 3200mm |
| Dump distance | 980mm |
| Min.turning radius | 2750mm |
| Wheel base | 2240mm |
| Wheeltrack | 1492mm |
| Tyre size | 20.5/70-16 |
RELIABILITY
· The heavy-duty front and rear frames use high-strength steel plates which applies with CAE finite element analysis technology. The structure is reasonable with strong bearing capacity and high reliability.
HIGH EFFICIENCY
· The bucket is designed according to large-size wheel loader’s concept, which has small insertion resistance and high full-load rate
COMFORT
· Newly-designed engine hood with beautiful appearance, frame structure, stable and reliable. Large opening door structure with wide maintenance space
Optional air conditioner and heater, providing drivers with a comfortable operating environment
Detail
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.
