Description

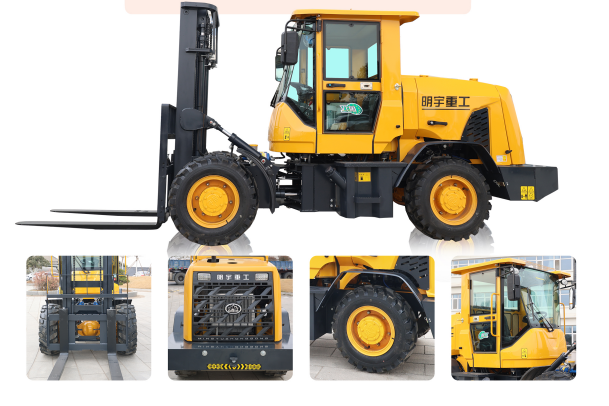

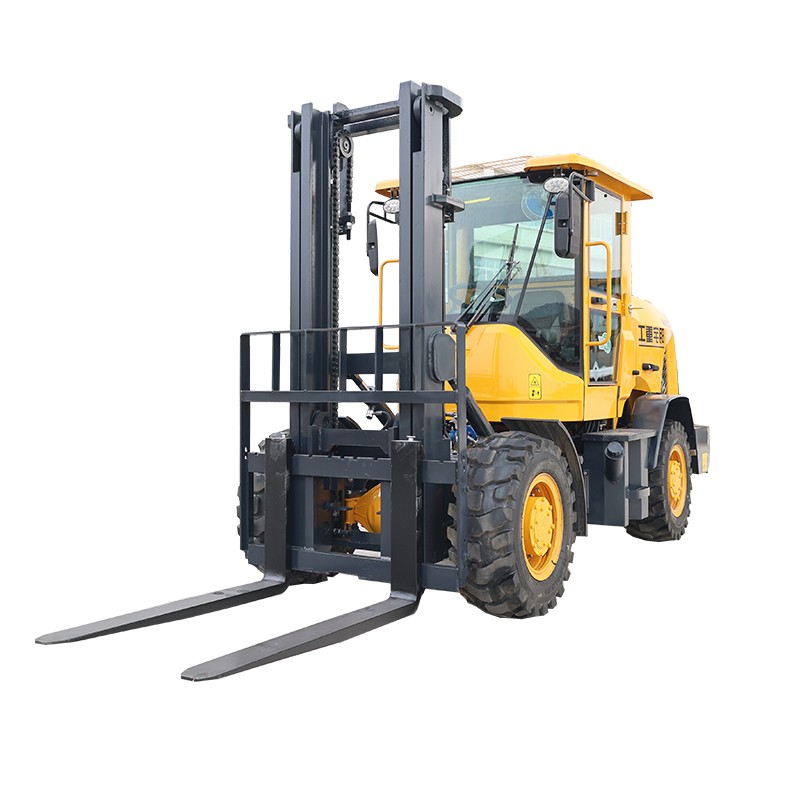

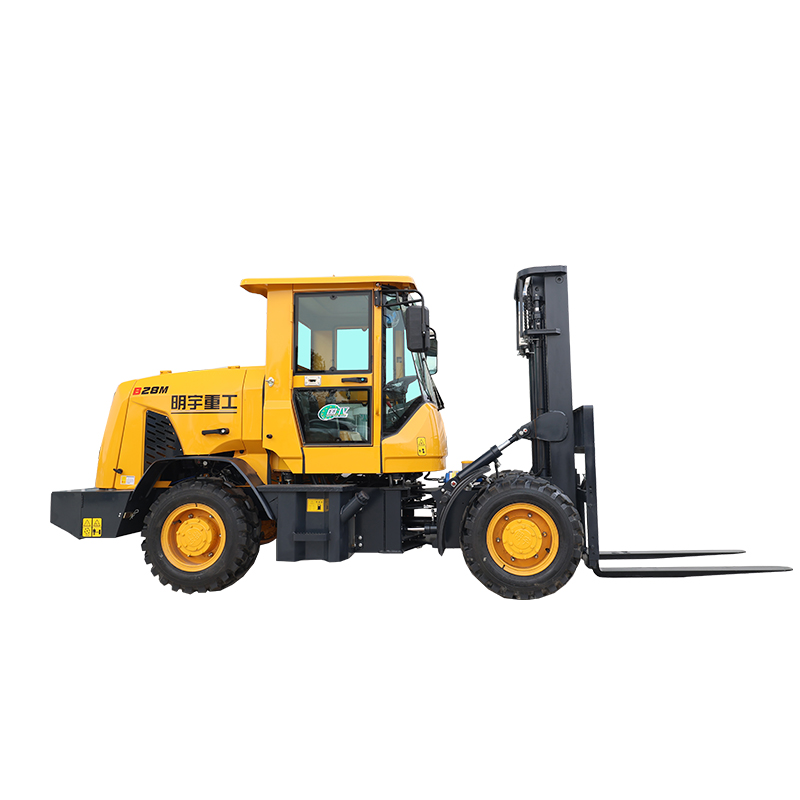

B29 Off-road forklift…
rated load capacity : 3500kg :
weight : 3260kg:
engine model : quanchai 490:
rated power:38kw:
Product Feature
Off-road forklift truck, also known as field forklift truck, is the equipment for loading and unloading materials in the material distribution centers with poor road conditions such as airports, docks, stations, and so on, with good mobility and reliability.
Off-road forklift trucks are mainly used in urban construction sites, pipeline laying, oilfield development, mountain forest and other field projects, as well as the loading and unloading of containers in the dock. The off-road forklift adopts all-wheel drive and off-road tires, so it can drive safely on mountains, beachheads, sand, snow and muddy roads, showing good off-road performance. Low shed off-road forklift truck is widely used in construction, agriculture, forestry, petroleum, pipeline, railway, basement fork, warehouse and other industries, can be
equipped with buckets, forks, clamps and other accessories, reduce hand fatigue.
1.The off-road forklift has a large engine displacement and uses all-wheel drive and off-road tires.
2. General forklifts are driven by two wheels, while off-road forklifts are driven by four wheels.
3. Generally, the chassis of the forklift truck is low, while the chassis of the off-road forklift truck is high.
Parameter
| rated load capacity | 3500kg |
| weight | 3260kg |
| fork length | 1070mm |
| engine model | quanchai 490 |
| rated power | 38kw |
| rated speed | 2400r/min |
| dump height | 3000mm |
| min.turning radius | 2625mm |
| gearbox type | 265 high and low speed torque converter |
| dimension | 4930*1460*2210mm |
| tyre model | 10.5/46-16high pressure tire |
| axles | hub reductro |
| wheel track | 2160mm |
| wheelbase | 1190mm |
Product Features
1.Mechanical joystick, easy to operate.
2.Thickened mast, strong bearing capacity.
3.Hydraulic power steering wheel, easy to drive.
4.LED light, high brightness, energy saving.
5.Engineering rubber tires, suitable for various road surfaces.
6.Electrophoretic spray paint, smooth and not easy to rust
Detail
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option
