Description
Mini off-road forklift, off-road forklift supplier,off-road forklift construction…
Rated load capacity:3500kg:
Total weight:5100kg:
Standard lifting height：3000mm:
Product Feature

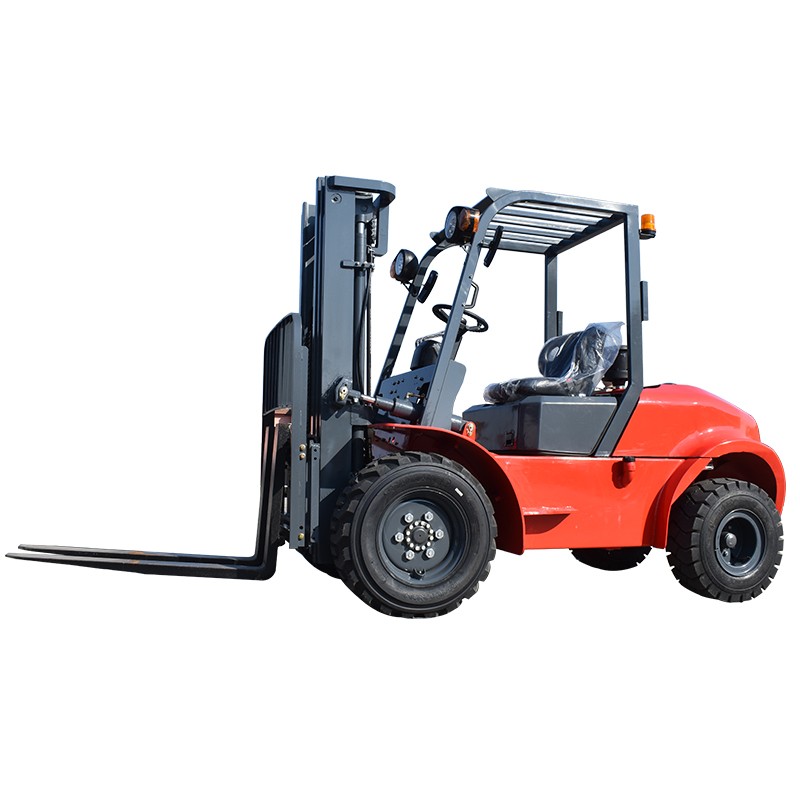

CPC35SY off-road forklift, equipped with Xinchai engine, strong performance, energy saving and environmental protection, two-wheel drive can be used in harsh working environments, Zhongnan gearbox, smooth shifting, comfortable operation, Linde steering axle, Bengbu hydraulic cylinder, Silent and heat-insulated hood integrally formed water tank cover, beautiful and durable, Hongchang high-quality mast steel, can be used in a long time, not easy to deform, Zhengxin tires have strong wear-resistant and shock-absorbing effects.
·Optional imported Yanmar 4TNE98 engine
·Optional mechanical gearbox, manual hydraulic gearbox, electromagnetic hydraulic gearbox
·According to different goods, different attachments such as sideshifter, distance adjustment forks, etc. can be assembled.
Parameter
| power | Diesel |
| Rated load capacity | 3500kg |
| Load center distance | 500mm |
| wheelbase | 1840mm |
| weight | 5100kg |
| tyre | 12-16.5-10PR |
| 12-16.5-10PR | |
| Standard lifting height | 3000mm |
| engine | YN4H055-34VE |
| Minimum turning radius | 4000mm |
| Maximum driving speed | 21Km/h |
| Maximum lifting speed | 450mm/s |
1. Tough, compact rough terrain forklift 3500kg with the 4WD system.
2. High strength Frame and high ground clearance for uneven road conditions.
3. Deep pattern and large-width tires with good grip and skid resistance.
4. Widened Mast for a good view. Cast Steel for the drive axle.

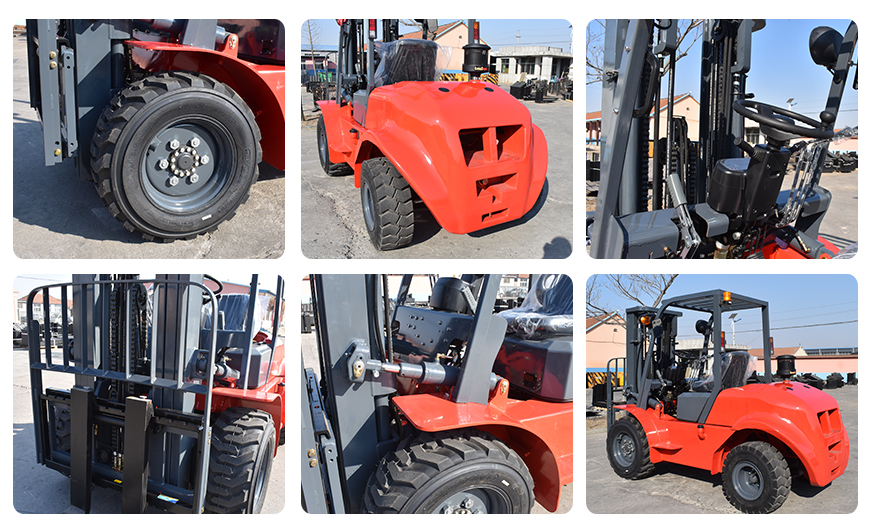

Detail
