Description

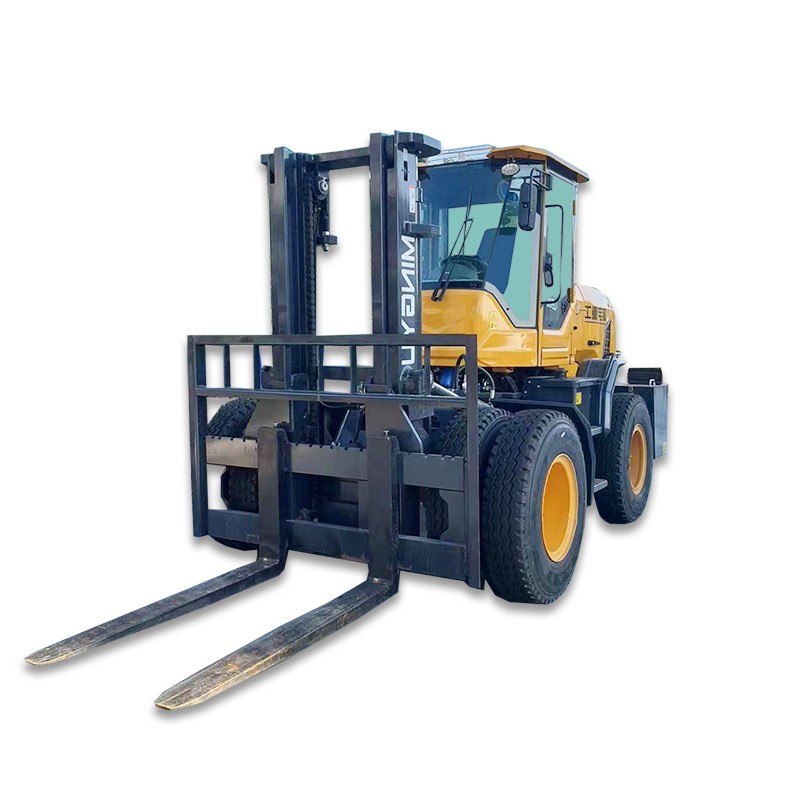

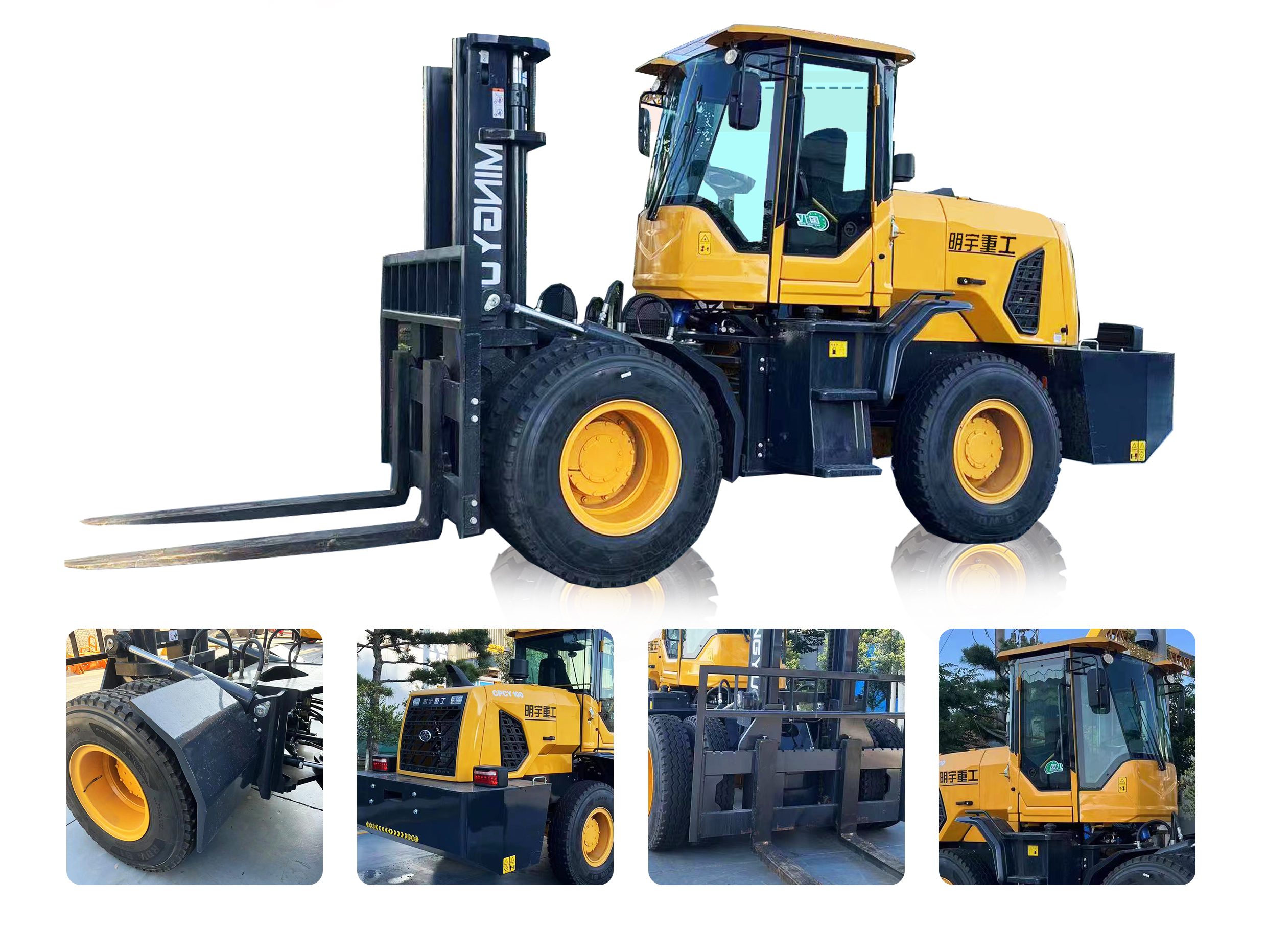

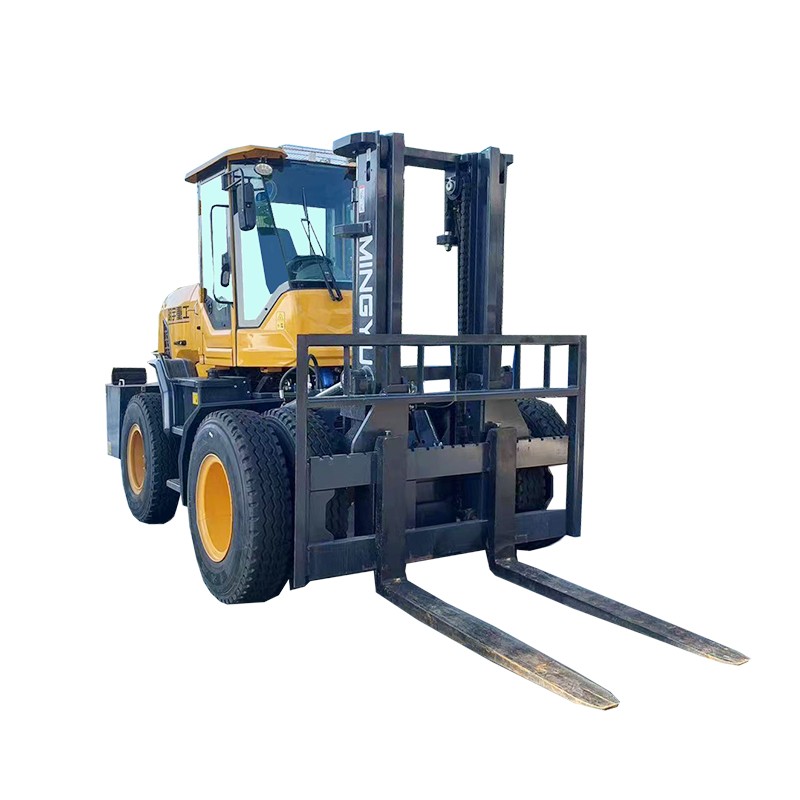

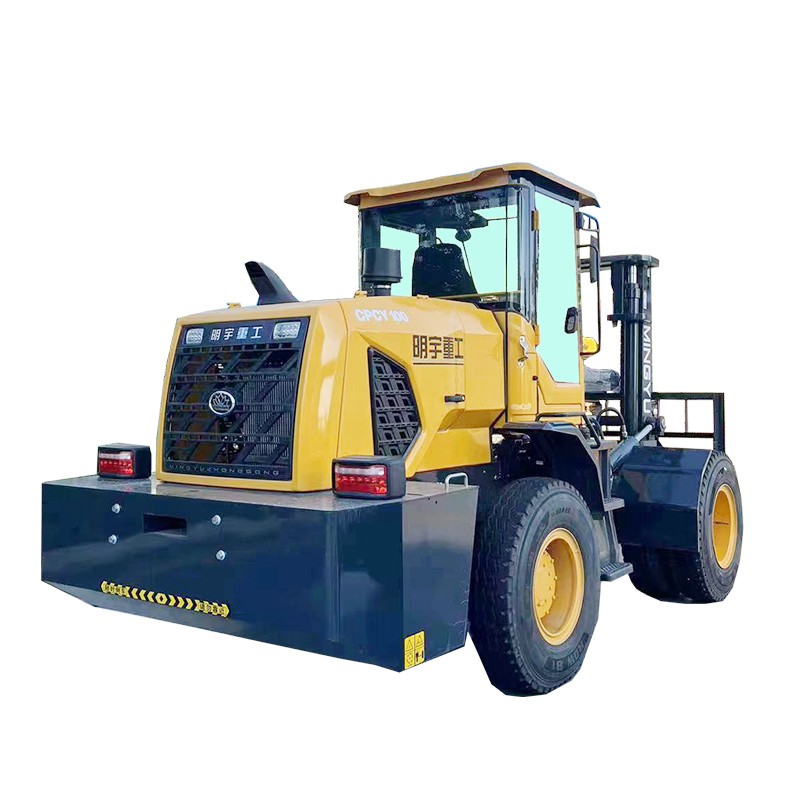

10T Off-road forklift …
rated load capacity :10000kg :
weight : 9200kg:
engine model : yunnei/quanchai:
Product Feature
A QUALITY PROCESS
The one-piece fully welded chassis on a MINGYU forklift maximizes strength and minimizes weight, while axles are the same heavy-duty units we fit to our backhoe loaders and telehandlers.
Using the same technology as JCB, our rough terrain forklifts are put through a stringent testing program which includes prolonged high stress loading of the chassis, mast and other key components, as well as repeated transmission use over thousands of cycles.
Our rough terrain forklift hydraulic cylinders have friction-welded eye-ends for extra strength, plus all pivots use hardened pins. Masts are made from heavy-duty channel and I-section steel, alongside heavy-duty chains and guide roller bearings that are sealed for life.
COMFORTABLY SUPERIOR
Visibility is excellent, courtesy of direct glazing, fold-back rear doors, a low hood, high cab mounting position, a large roof screen, a slim line outer mast section, and large front and rear windshields.
The large, spacious cab of a MINGYU rough terrain forklift boasts left and right grab handles with wide-opening doors; standard-fit tinted glass which reflects 30% of solar energy; and a new 3-speed heater fan for improved demisting/de-icing of the windshield.
For all-day productive comfort, we offer both suspension and air suspension seating options that can be adjusted to different operator requirements or tasks. When lifting or placing loads, our optional sideshift carriage makes things even easier.
A zero tail swing design means that when the rear tire of a MINGYU forklift has cleared an obstacle on full turn, you can be safe in the knowledge that the rear counterweight will clear it too. This means our machines are ideal for working in confined areas.
LOW MAINTENANCE, LONG INTERVALS
Our new, larger high-flow hydraulic pump translates the power into efficient lifting for increased productivity; cycle times are up to 51% faster.To keep our rough terrain forklifts productive, we minimize downtime as much as possible; service intervals are therefore long.
Daily checks and greasing are carried out easily at ground level. All filters (engine oil, fuel, transmission, hydraulic oil and air) are near each other for faster servicing too. The air filter is a cyclonic design that ejects dust and debris by centrifugal force resulting in cleaner air and longer air filter life.
MINGYU telematics technology offers benefits like real-time data that allows you to monitor and manage machines remotely. You can also monitor any issues and get them resolved swiftly by your MIGNYU dealer, thus boosting productivity throughout the working day.
Parameter
| total weight | 9200kg |
| engine model | yunnei/quanchai |
| rated speed | 2400r/min |
| Standard lifting height | 3000mm |
| Gantry angle | Front 10°/rear 12° |
| Maximum lifting speed | 0.63 m/s |
| fork length | 150*1500mm |
| minimum ground clearance | 300mm |
| minimum turning radius | 2535mm |
| wheel base | 2440mm |
| Tyre distance | 1860mm |
| dimension | 6020*2000*2900mm |
| Tyre type | 11.00-20 |
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option
