Description

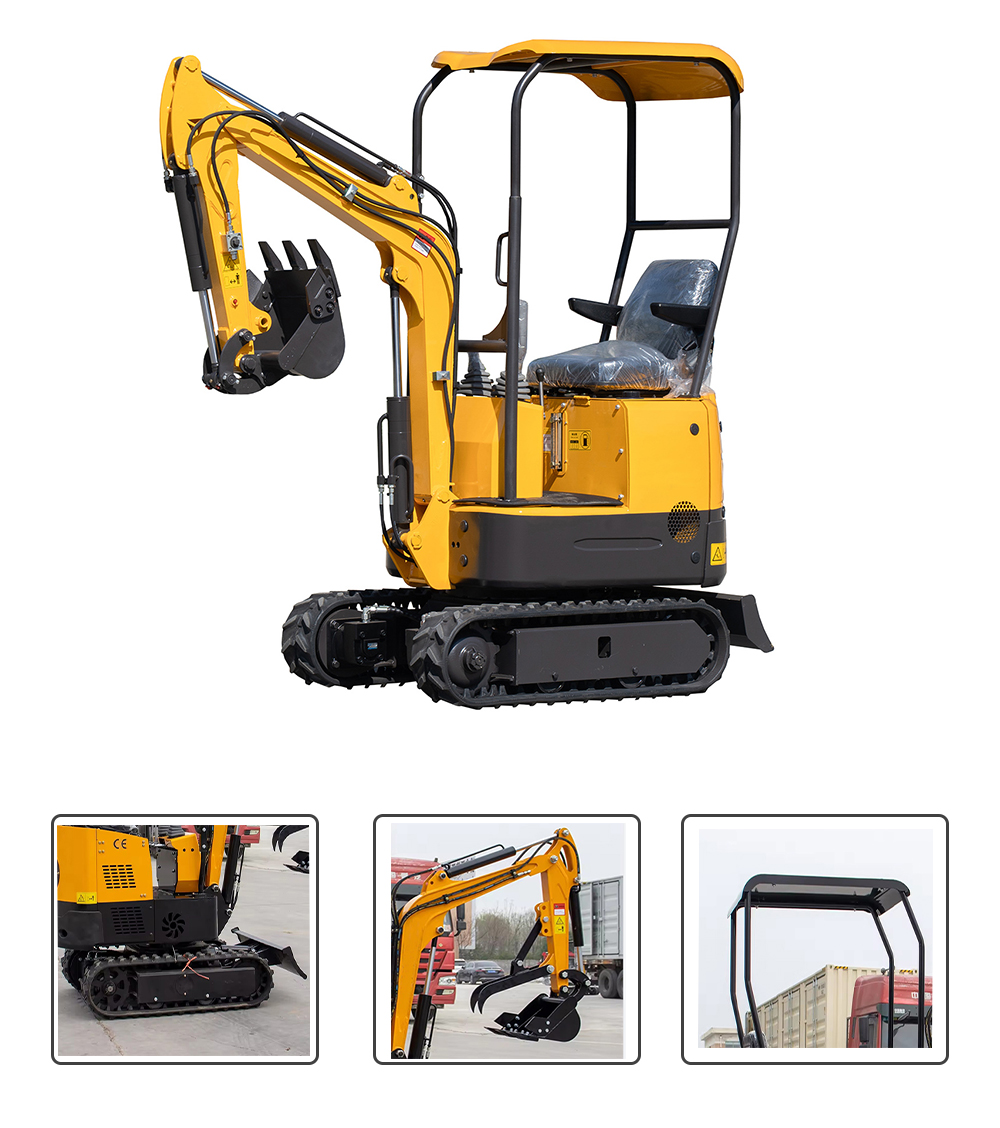

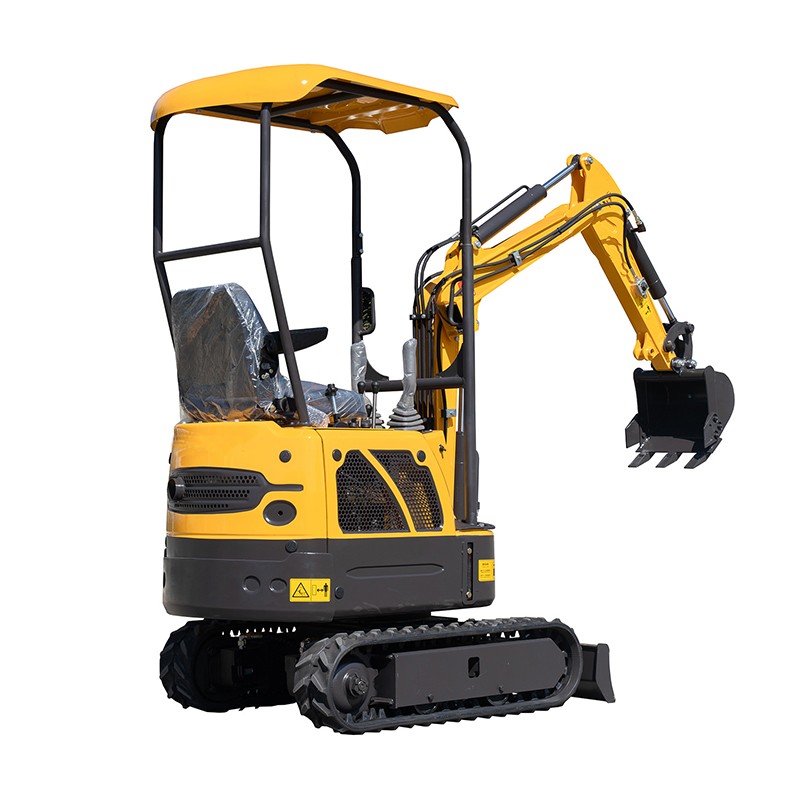

MY-08 mini excavator…
Operating weight：1000kg:
Bucket capacity (cbm) ： 0.02:
Engine model ： KOOP :’
Product Feature
MY-08 With its lightweight design, this compact digging machine offers outstanding maneuverability for work in backyards, narrow alleys, and other tight spaces. Our mini trencher provides a maximal digging depth of 6 feet 1 inch and a radius of 10 feet 3 inches to help you dig foundations, bury downspout lines, install electrical services, and more. The cut and wear resistant rubber tracks operate on manicured turf, rocky hills, and paved surfaces without damaging them. Our mini digger comes with a 15.7 in. wide grading bucket, providing optimal efficiency for precise excavation and grading tasks on construction sites. The digger boasts a sturdy steel construction for long lasting performance, while its open design gives you a 360 degree view from the operator’s seat to get your job done right.
1. Compact size for effective operation within confined space.
2. Optional for Euro V Koop engine, and deflection boom.
3. Rubber tracks, pilot control.
4. Easy to maintain.
5. Wide range of attachments available.
Parameter
| Model | MY08 |
| Net weight | 880kg |
| Operation weight | 1000kg |
| Digging bucket capacity | 0.02cbm/100kg |
| Bucket width | 380mm |
| Engine | KOOP/Briggs & Stratton engine(gas) |
| Rated power | 7.6kw/7kw/13hp |
| Displacement | 0.499 L |
| Bore stroke | 70×55 |
| Main pump | CBK-F6.8 |
| Displacement | 6.8ml/r |
| Swing motor | SJ-TECH (MP-1-160) |
| Traveling motor | KERSEN (OMS-2450) |
| Travel speed | 1.5km/h |
| MAIN DEMENSIONS | |
| Overall dimension( LxWxH) | 2550x946x1330 mm |
| Wheelbase | 770 mm |
| Total length of track | 1090mm |
| Upper chassis ground clearance | 380 mm |
| Counter weight turning radius | 733 mm |
| Chassis width | 946 mm |
| Track width | 180 mm |
| Track height | 320 mm |
| OPERATING RANGE | |
| Max. Digging depth | 1400 mm |
| Max. Vertical digging depth | 1320 mm |
| Max. Digging height | 2490mm |
| Max. Dumping height | 1750 mm |
| Max. Digging radius on ground | 2400 mm |
| Min. Rotation radius | 1190 mm |
| Max. Upgrade height of bulldozer blade | 325 mm |
| Max. Digging depth of bulldozer blade | 175 mm |
| Hydraulic and liquid capacity | |
| Pump type | Gear pump |
| Pressure | 16Mpa |
| Displacement | 18L |
| Capacity of hydraulic tank | 16.5L |
| Capacity of engine oil tank | 1.5L |
| Capacity of diesel oil tank | 7L |
Detail

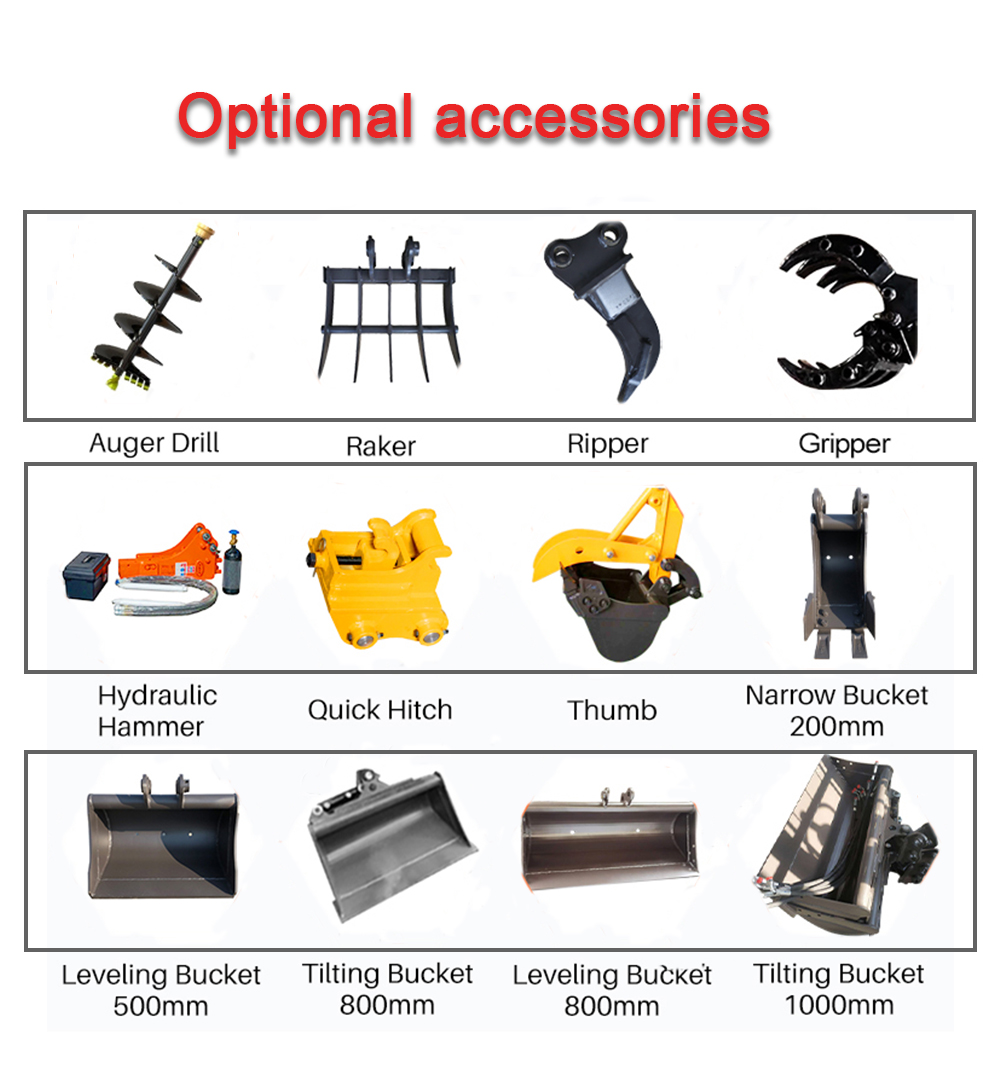

China hydraulic 0.9ton mini excavator with rubber track can equip with Auger, Wood Grab, Roof, Ripper, Rake, Narrow Bucket, Standard Bucket, Leveling Bucket.It is durable and has low loss, and has a longer service life. It has a competitive advantage among similar products.
Products sold all over the world have proved that our factory is fully capable of producing high-quality products and providing the best service to our customers.
