Description

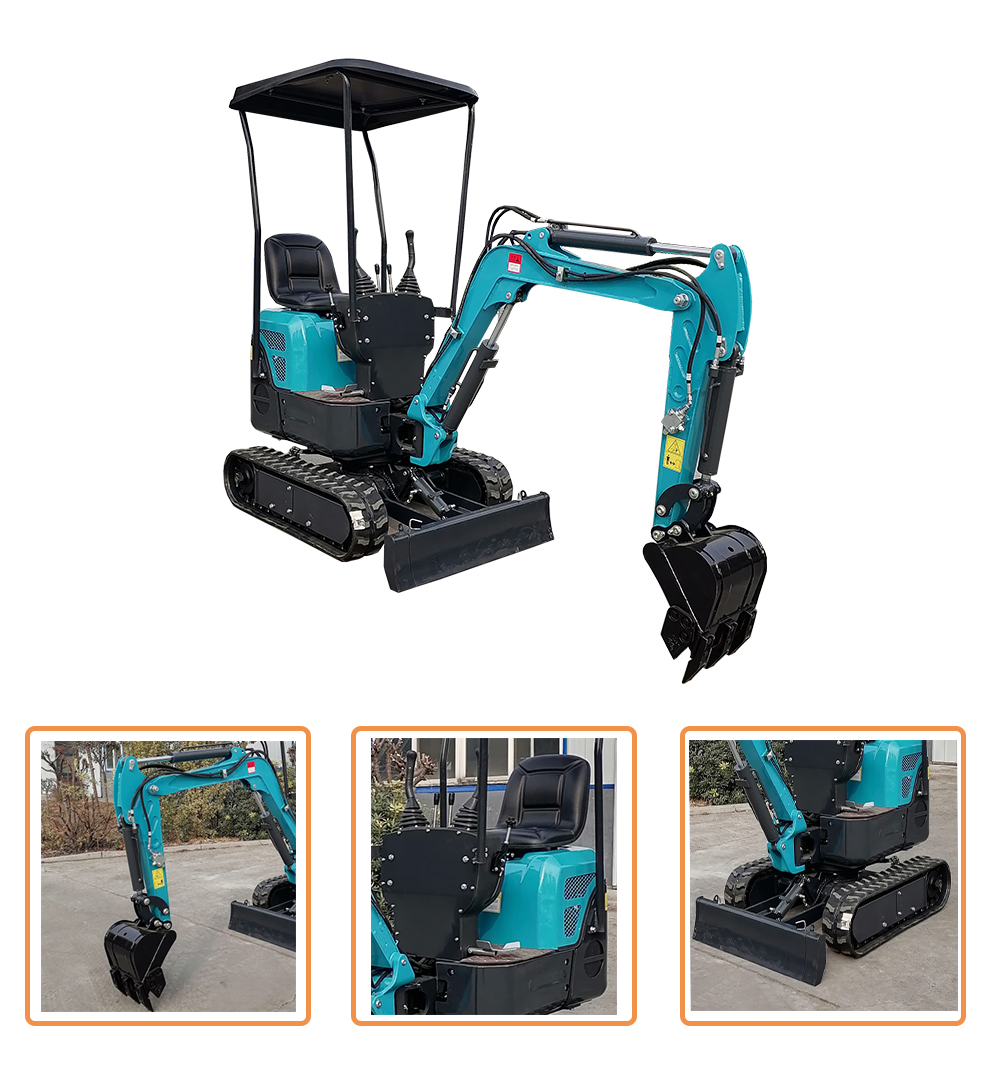

MY-12 mini excavator…
Operating weight：1080kg:
Bucket capacity (cbm) ： 0.02:
Engine model ：YANMAR/KUBOTA:
Product Feature

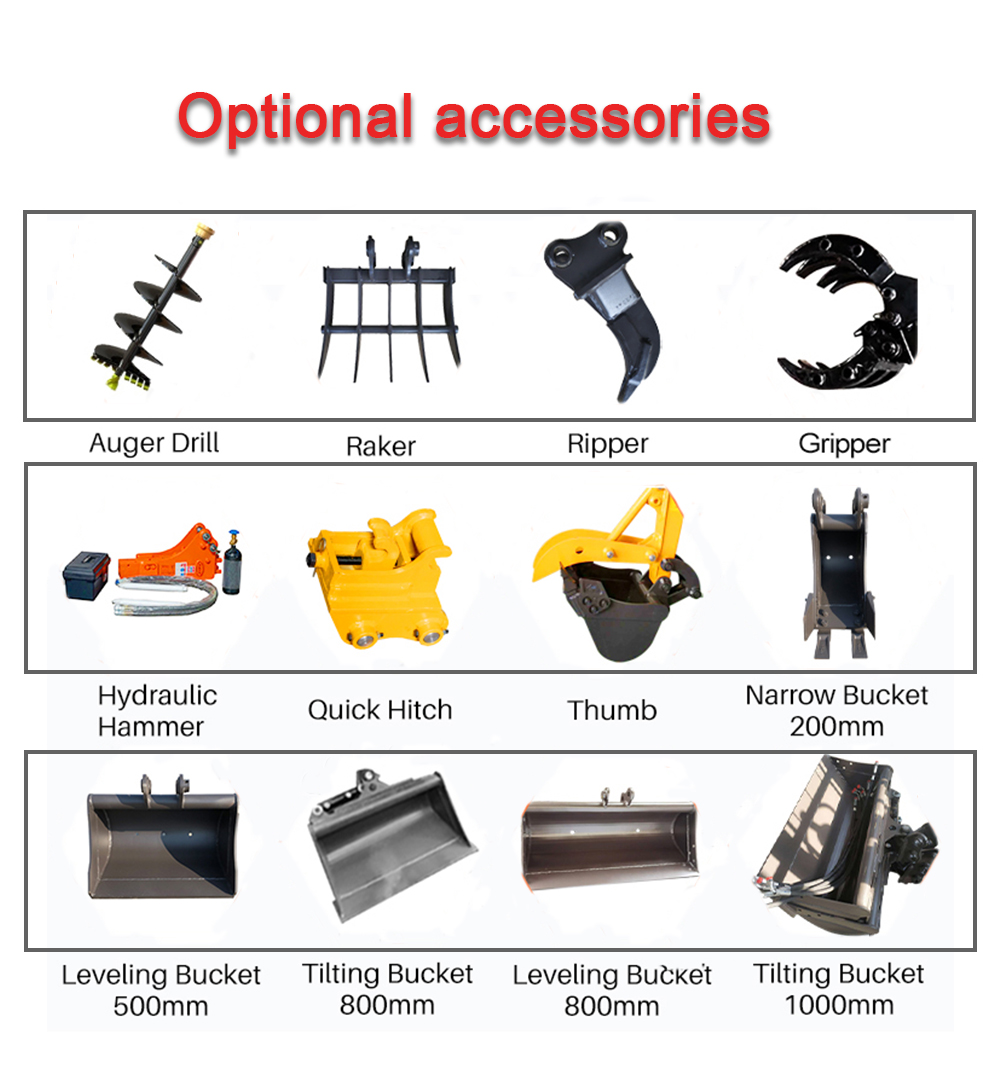

MYZG Compact excavators are engineered to bring your performance andproductivity up to the next level.They have the most advanced features. Theefficient working capabilities make challenging work easier.MY-12 elevates yourability to achieve optimal productivity even under restrictive working conditionsMoreover, everyi ton excavator we produce is matched with professionalaccessories for enhanced performance.
MYZG 1 ton mini excavator is the perfect solution for home use. Combininglightweight and compact size to navigate delicate ground without causingdamage. MY-10 is equipped with a Koop engine and Kubota/Yanmar as your alternativeoption. internationally branded engine ensures long-lasting power and service life.
I ton excavator is easy to transport on a trailer. Make it your must-have equipmentfor smaller-sized construction and demolition work!
*MY-10 meets the EPA and Euro Vemission standards
Parameter
| SPECIFICATION | Unit | ||
| Operating Weight | 1080 kg | ||
| bucket capacity | 0.02m³ | ||
| Working device form | backhoe | ||
| engine | Model | Yanmar 3TNV70 / 3TNV74F | |
| Rated power | 10.3kw /11.2 kw | ||
| Model | Kubota D722-EF11 | ||
| Rated power | 10.2kw/2500rpm | ||
| Displacement | 0.854L | ||
| Maximum torque | 51.9N.m/1600 r/min | ||
| speed | Max.travel speed | 1.5km/h | |
| swing speed | 11rpm | ||
| Max. Gradeability | 30° | ||
| Ground specific pressure | 32.8kgf/cm2 | ||
| Track material | Rubber | ||
| Type of track tension device | screw adjustment | ||
| Hydraulic and liquid capacity | Pump type | Gear pump | |
| Working pressure | 16Mpa | ||
| Flow rate | 18L/min | ||
| Hydraulic oil tank capacity | 15L | ||
| Engine fuel tank | 1.8L | ||
| capacity | |||
| Fuel tank capacity | 11L | ||
| A | Max. Digging radius on ground | 2500 mm | |
| B | Max. Digging radius | 2900mm | |
| C | Max. Digging depth | 1700 mm | |
| D | Max. Digging height | 2600 mm | |
| E | Max. Dumping height | 1800 mm | |
| F | Max. Vertical digging depth | 1600 mm | |
| G | Min. Rotation radius | 1250 mm | |
| H | Max. Upgrade height of bulldozer blade | 325 mm | |
| I | Max. Digging depth of bulldozer blade | 175 mm | |
Detail
Engine
·Durable engine for reliable operation in harsh conditions.
.Flexible coupling absorbs shocks.
Oil supply
.Low oil levels trigger alarm system.
.Hydraulic tank breathing val vewith pressure compensation.
Running System
·Travel motor with 3 hoses
·Pressure relief valve to ensure optimal performance and longevity.
Direction Control Valve
.Directing flow between system parts.
.Correct installation is essential.
Excavator Boom
.Crucial for moving and digging materials
.Dramatically boosted efficiency
Bucket cylinder
·Help move and adjust position while digging.
·Flexible manipulation.
