Description

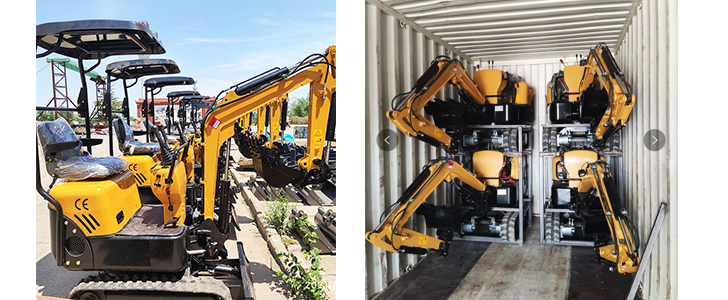

10 mini excavator…
Operating weight：1000kg:
Bucket capacity (cbm) ： 0.025:
Engine model ： KOOP KD192F-1:
Product Feature
The excavator is specially designed for small works, gardens, farmland municipal works, etc. It can also be used in amusement parks and parks. The excavator with a small engine, simple design and easy maintenance.
●Tailless design, 360° rotation in narrow space without dead Angle;
●Swing arm, rail change telescopic chassis, good I condition adaptability;
●Appearance designed by Italian designers.
●Increased air outlet to improve the heat dissipation capacity.
●LED working light to give the operator good view.
●Various attachments for different working conditions.
●Expending undercarriage is available.
Parameter
| Operating weight | 1000kg |
| Bucket capacity | 0.025 m³ |
| Engine model | KOOP KD192F |
| Rated power | 7.6kw |
| Max.flow | 18 L/min |
| Working pressure | 17 Mpa |
| Arm digging force | 4.6kn |
| Bucket digging force | 7.2kn |
| Overall size | 2775*930*2219mm |
| Min. ground clearance | 134mm |
| Track length | 1233mm |
| Track shoe width | 180mm |
| Turntable width | 917mm |
| O-Max. digging height | 2637mm |
| P-Max. dumping height | 1784mm |
| Q-Max. digging depth | 1681mm |
| Arm length | 798mm |
| Boom length | 1480mm |
Detail

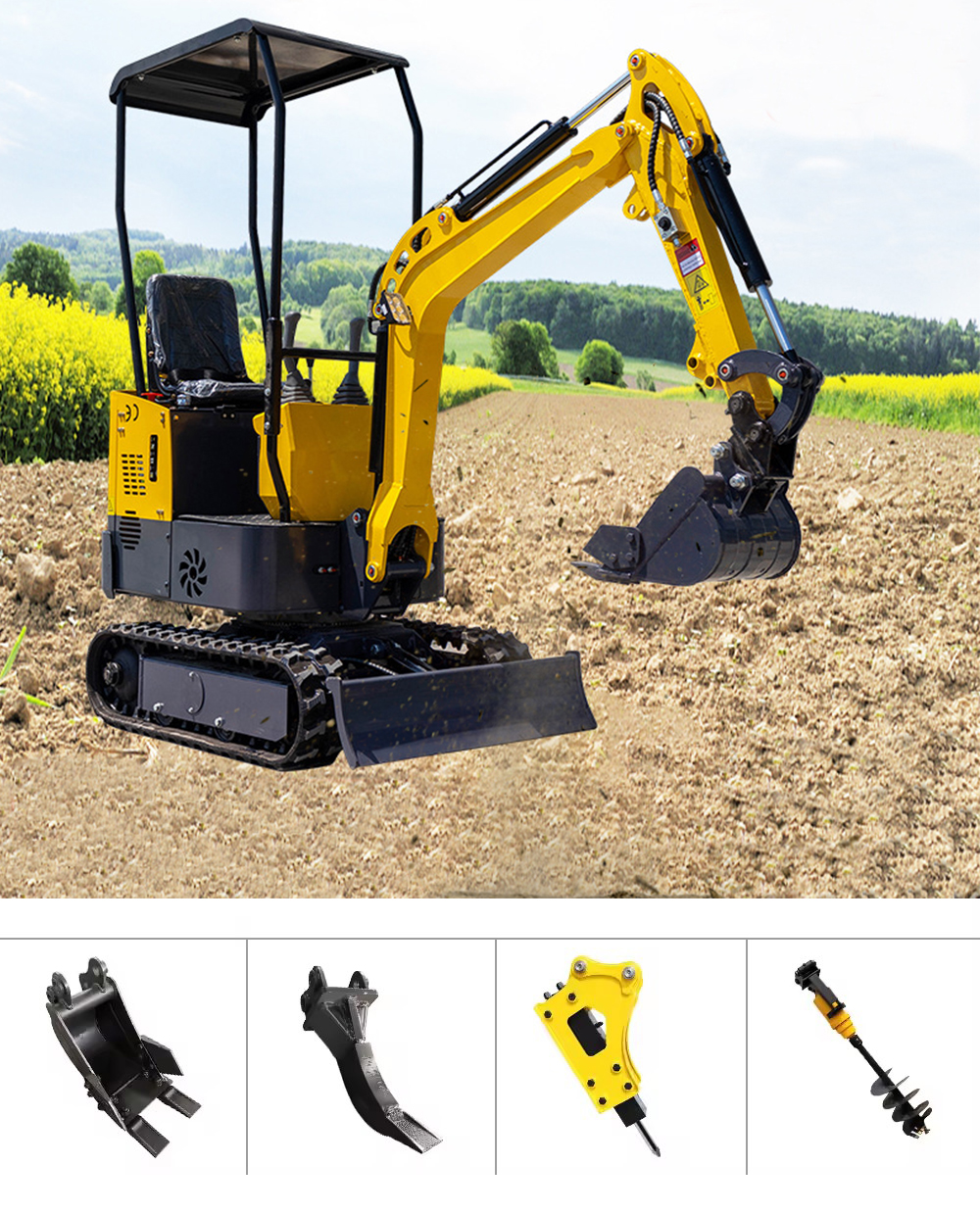

China hydraulic 0.9ton mini excavator with rubber track can equip with Auger, Wood Grab, Roof, Ripper, Rake, Narrow Bucket, Standard Bucket, Leveling Bucket.It is durable and has low loss, and has a longer service life. It has a competitive advantage among similar products.
Products sold all over the world have proved that our factory is fully capable of producing high-quality products and providing the best service to our customers.
