Description

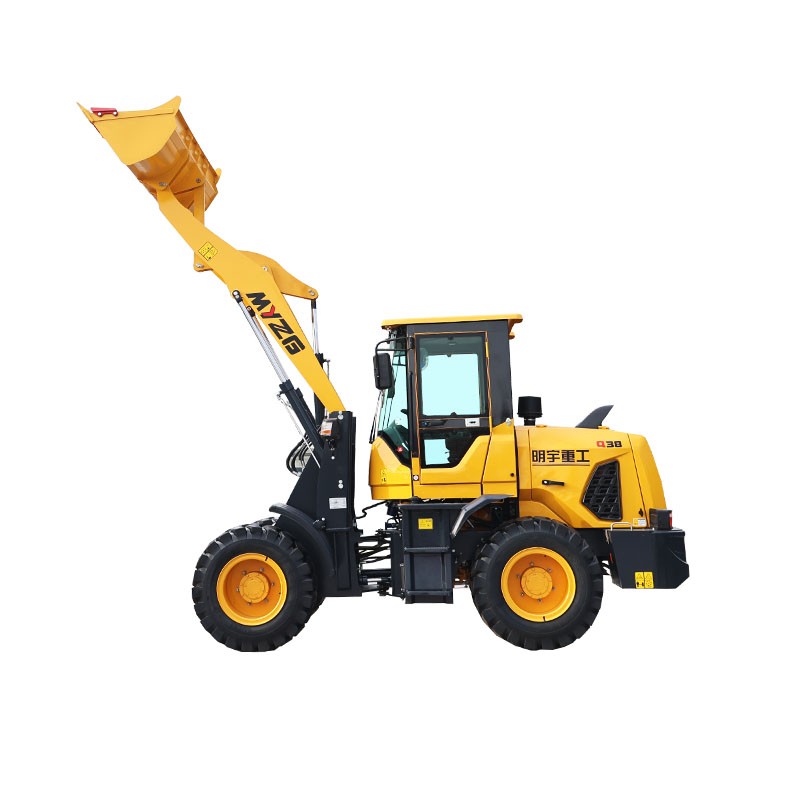

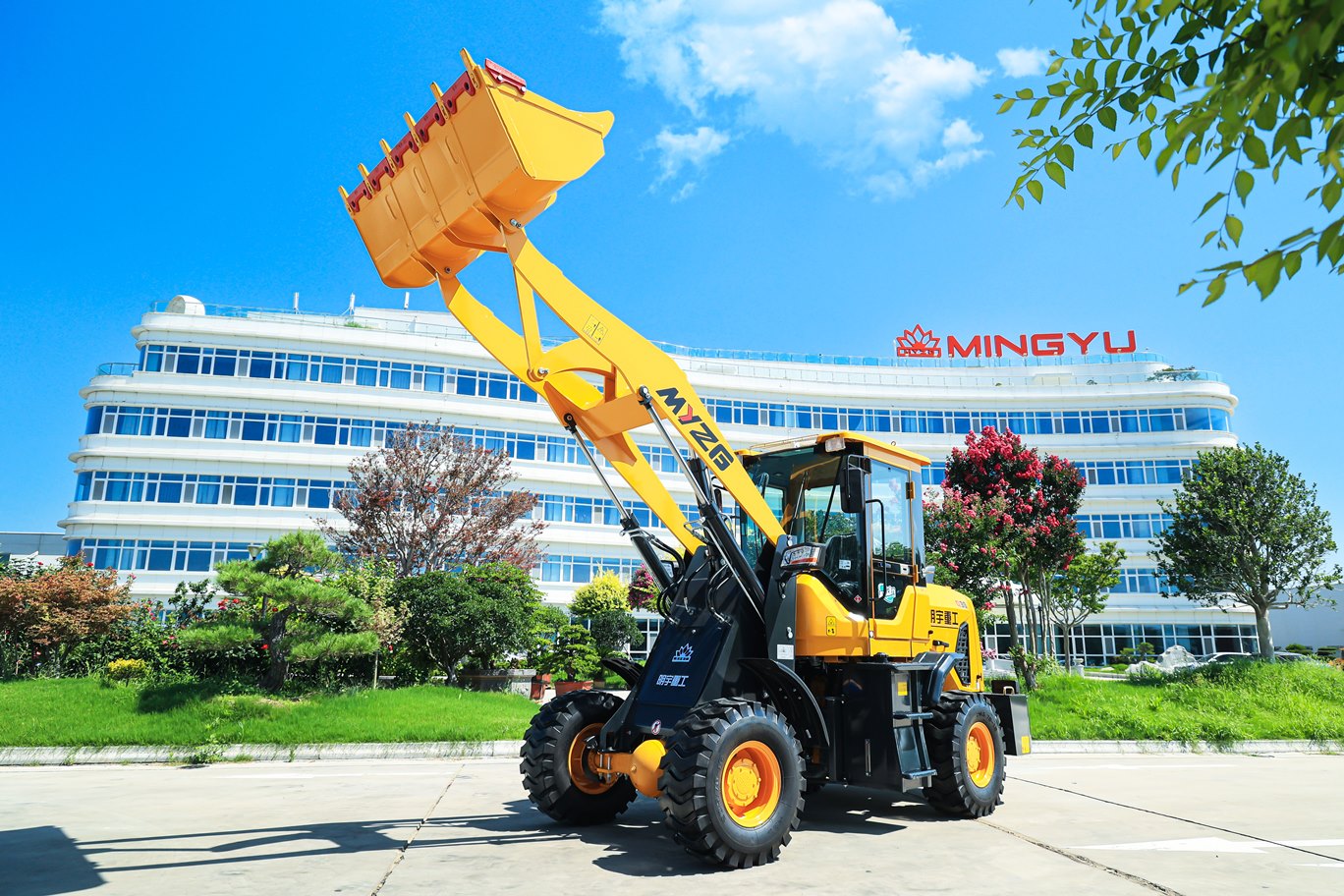

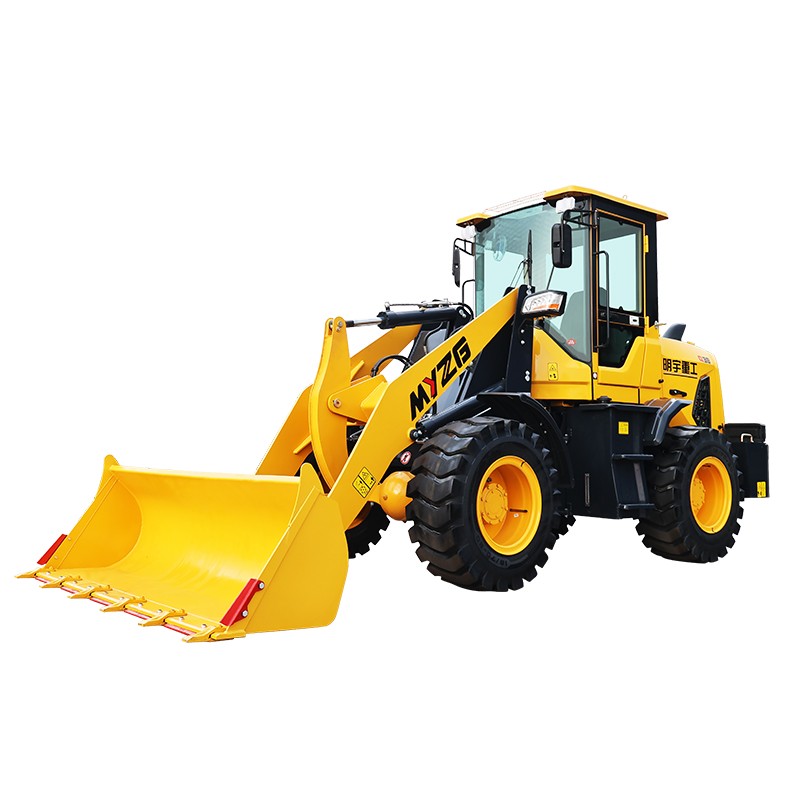

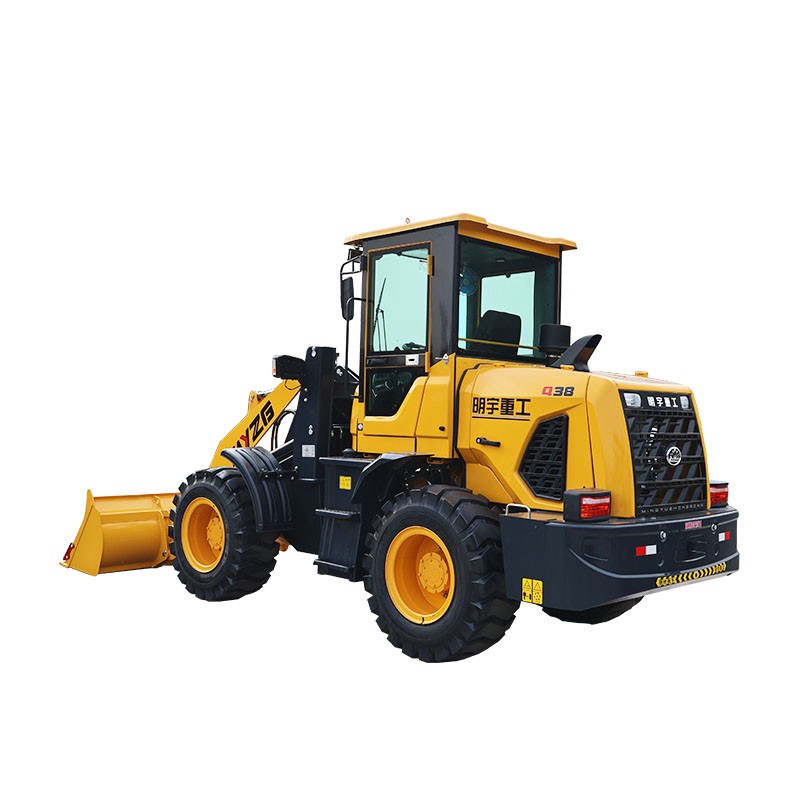

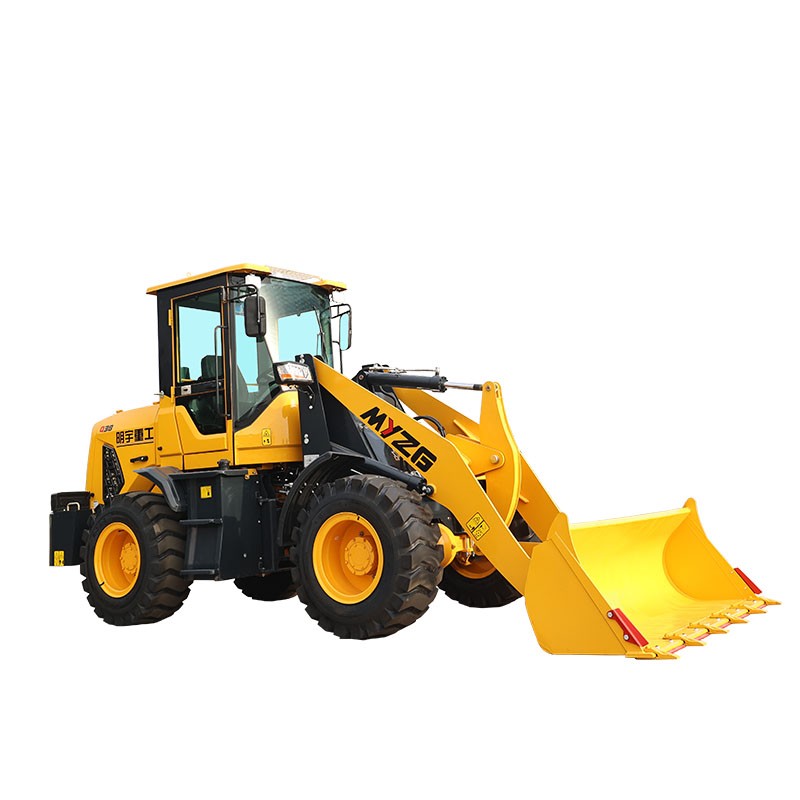

Q38 wheel loader…
load capacity: 1.5 ton
rated bucket capacity: 0.75 m3
operating weight: 3700kg
Product Feature
Q38 is a product independently developed by MYZG. It is equipped with high-power Huadong engine, high-quality split type double change, four-wheel drive, full hydraulic steering, strong power, higher efficiency, and stronger environmental adaptability.
Parameter
| rated load capacity | 1500 kg |
| rated bucket capacity | 0.75m³ |
| operating weight | 3700kg |
| engine model | HUADONG 4DHZY4
Cummins QSF2.8 EPA 55kw SIDA/HUAFENG /XICHAI |
| rated power | 76kw |
| rated speed | 2400 r/min |
| dimensions | 5720*2150*2810MM |
| dump height | 3600mm |
| dump distance | 800mm |
| min.turning radius | 2850mm |
| wheel base | 2350mm |
| wheeltrack | 1525mm |
| tyre size | 16/70-20 |
Q38 loader is a high-end product mainly for loading and unloading loose materials. The entire machine is compact, flexible in operation, of high working efficiency, more suitable for operation in narrow and small field and is widely used in places such as farms, timber yard and municipal construction.
1.It is equipped with the engine meeting the requirements of China II emission standard, with strong power, low noise and reliable performance.
2. Single-stage three-element hydraulic torque converter and axis-fixed transmission case are used, with high reliability and are convenient for maintenance; MYZG reinforced drive axle is configured, with large bearing capacity, long service life and high reliability.
3. Load-sensing full hydraulic steering system is used, with light and quick steering and reliable energy saving properties; Pilot-control working device hydraulic system is used, with high operating efficiency and is light and easy to operate.
4. It adopts front and rear reinforced frames that have passed 200,000 times of fatigue enhancement tests, with strong bearing capacity, reasonable entire-machine load distribution and good stability.
5. New steel structure cab is adopted, which ensures wide vision, a larger operation space，good sealing performance; the air conditioner can be installed optionally, which ensures good comfort.
6. Electrical system adopts high-end and mature electrical apparatus element, which makes it stable and reliable.
7. Engine hood is designed with large door, which makes it more convenient for repair and maintenance.
8. Bucket is made of protruding type cutting board. The bottom antifriction plate is thickened, with little cutting resistance, high coefficient of fullness and high reliability.

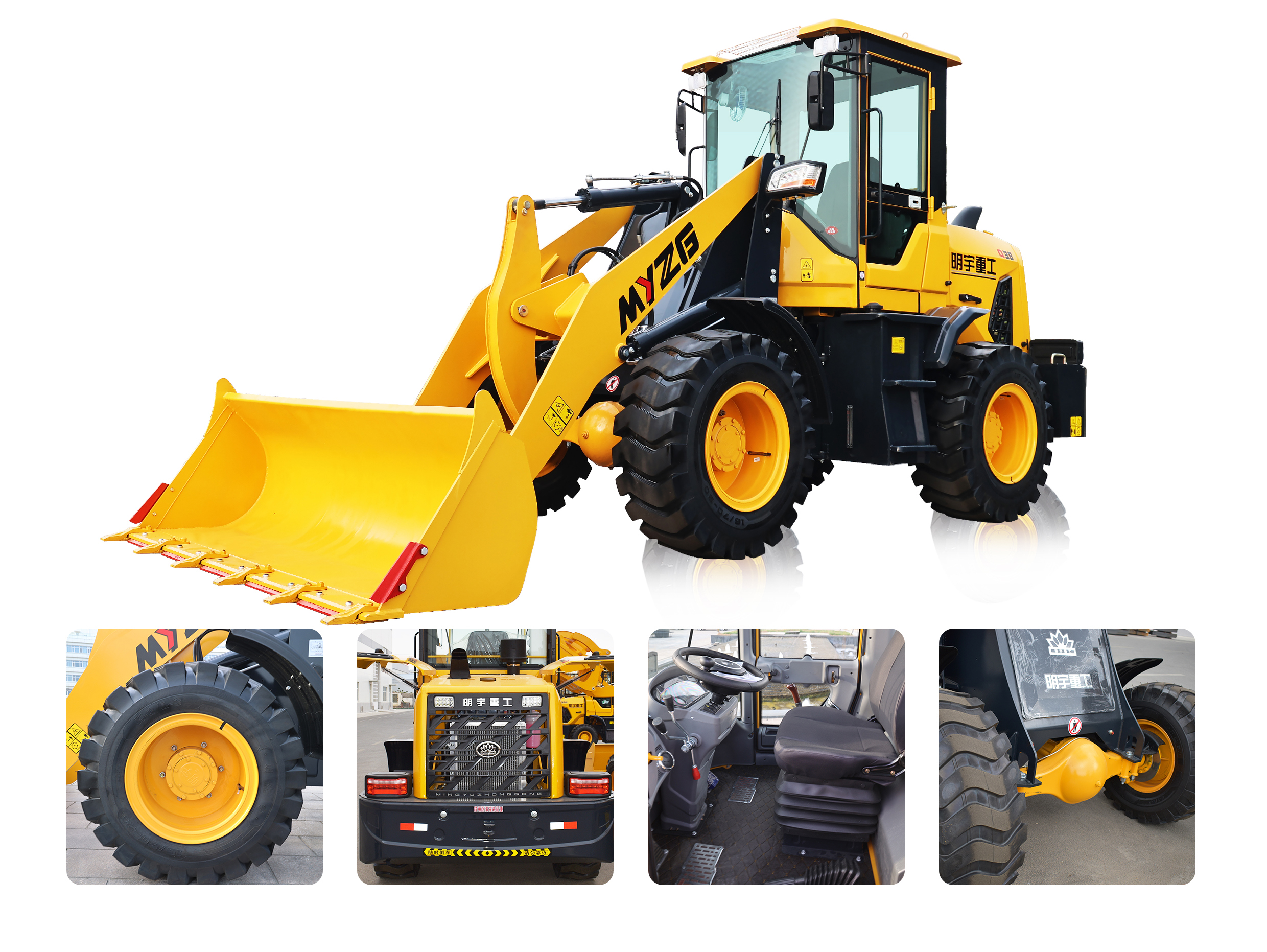

Detail
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.
