Description
Over all weight 3800kg Over all dimension (L×W×H) 5240×1800×2600mm Rated bucket capacity 0.8m3 Maximum dump height 2370mm…
Over all weight: 3800kg:
Over all dimension (L×W×H) :5240×1800×2600mm:
Rated bucket capacity: 0.8m3:
Maximum dump height: 2370mm:
Product Feature

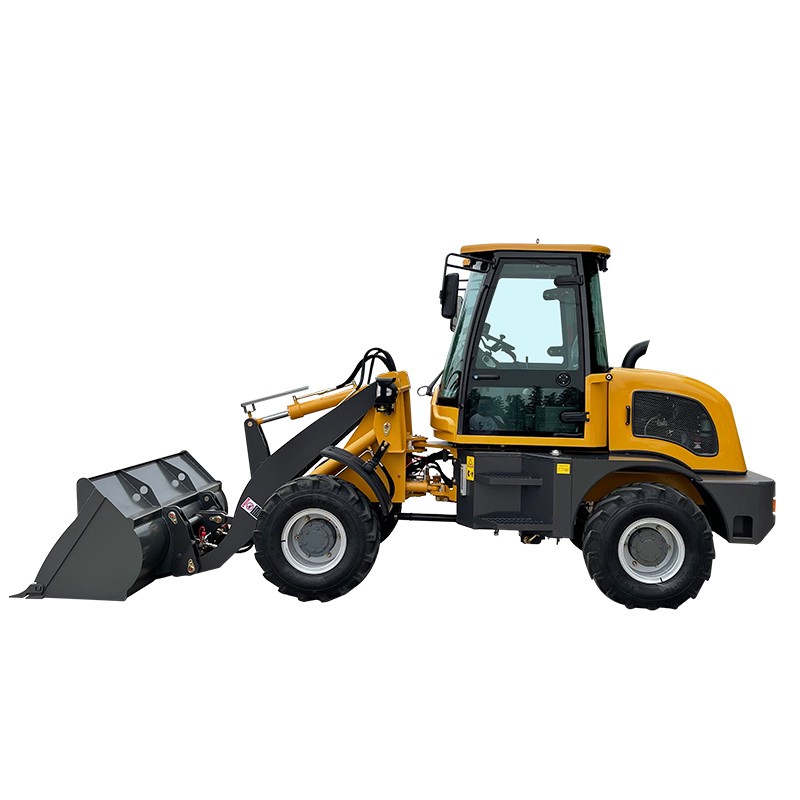

MYZG ZL-16 Wheel Loader is with 1.6ton loading capacity, it can install Euro5 or EPA4 engine to meet different emission requirements. New Rops & Fops Cabin provides a better job sight. Floating oscillating articulation is more flexible in off road, it will protect the frame to extend the working life. Engine hood with new material will make engine has a better dissipation, and cast iron rear counterweight make whole wheel loader more stable when working.
zl-16 its biggest advantages are flexible steering, suitable height, energy-efficient, machine performance is greatly improved, the whole machine vibration and noise is decreased obviously, the whole machine has a high cost performance
Parameter
| rated load capacity | 1600kg |
| rated bucket capacity | 0.8m³ |
| operating weight | 3800kg |
| engine model | Xinchai (Euro III )
quanchai (stage II) |
| rated power | 36.8kw |
| rated speed | 2650r/min |
| dimensions | 5240×1800×2600mm |
| dump height | 2370mm |
| Maximum dump reach | 800mm |
| min.turning radius | 5200mm |
| wheel base | 2265mm |
| Wheel tread | 1520mm |
| tyre size | 23.5/70-16 |
1- MYZG articulated oscillating floating joint
The backbone of the MYZG ZL16 design: The legendary articulated oscillating floating joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction. In addition, the machine has unrivalled manoeuvrability.
2- Streamline designed engine hood and iron Casting rear bumper
New engine hood with stronger material, taking into account of both appearance design and functions, realized lower the noise and improved heat radiation effects. Mold iron casting rear bumper, heavier but slim than normal ones, giving better balance support to the wheel loader.
3- Vibration-damped working area
Vibrations and impacts are absorbed by the machine. Your body is very well-protected and you also work for a longer time, relaxed and fatigue-free, and are therefore simply more focused.
4- Good all-round visibility — ergonomic workplace
More Spacious than conventional model, ensure plenty of legroom, clearly arranged instrument clusters, a comfortable operator’s seat and an optimal visibility of the attachment. A working area that motivates and fully supports the operator.
The working environment in the cabin is excellent, thanks to an efficiently working heating and ventilation system with a fan, fresh air filter and well-placed air nozzles. With the comfort cab, air conditioning is available as an option.
5- Adjustable steering column
The steering column can be individually adjusted according to the operator’s request. This ensures that every operator can work with the machine ergonomically and fatigue-free.

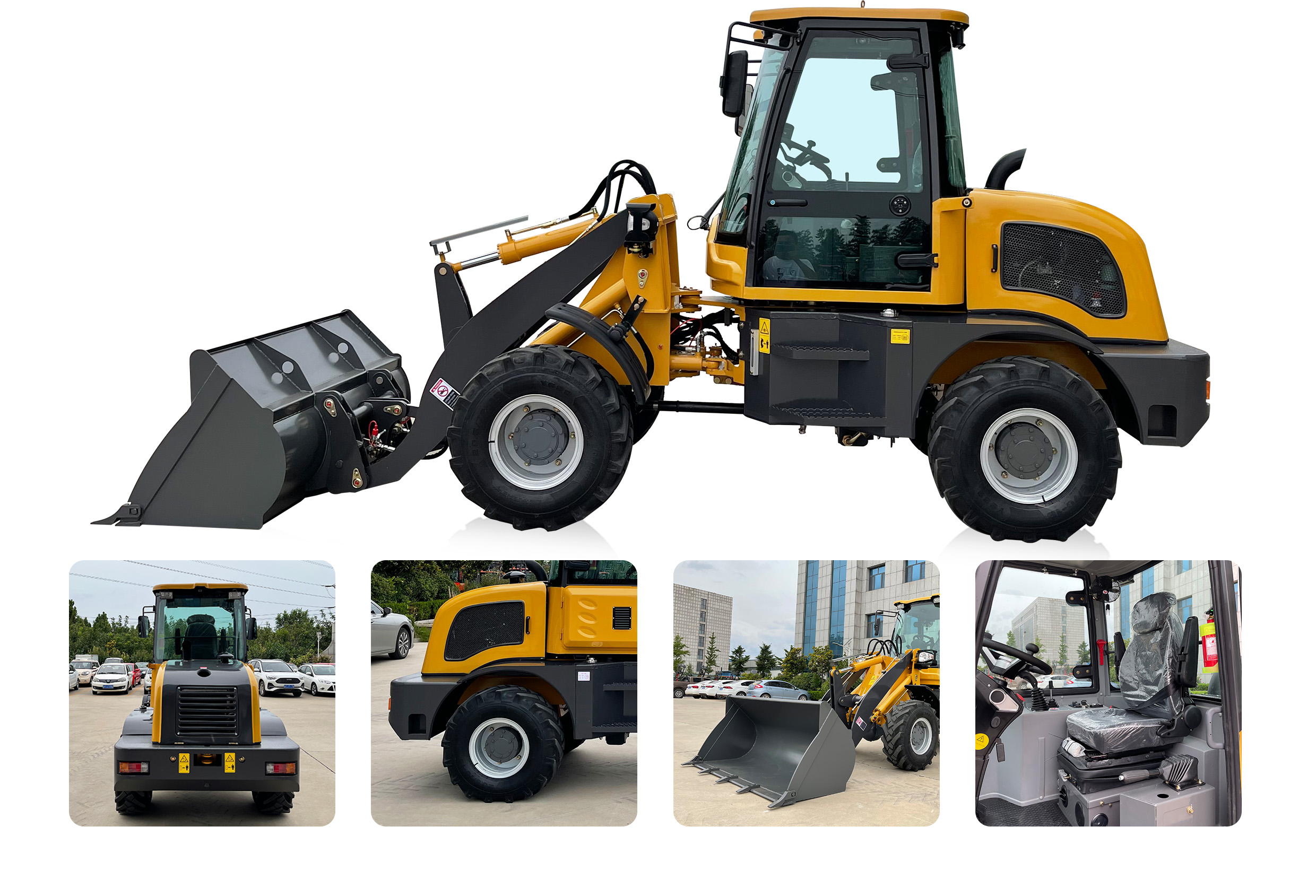

Detail
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.
