Description
dimensions：: 4460*1550*1575mm
rated load capacity：: 900kg
rated power：: 38kw
Product Feature

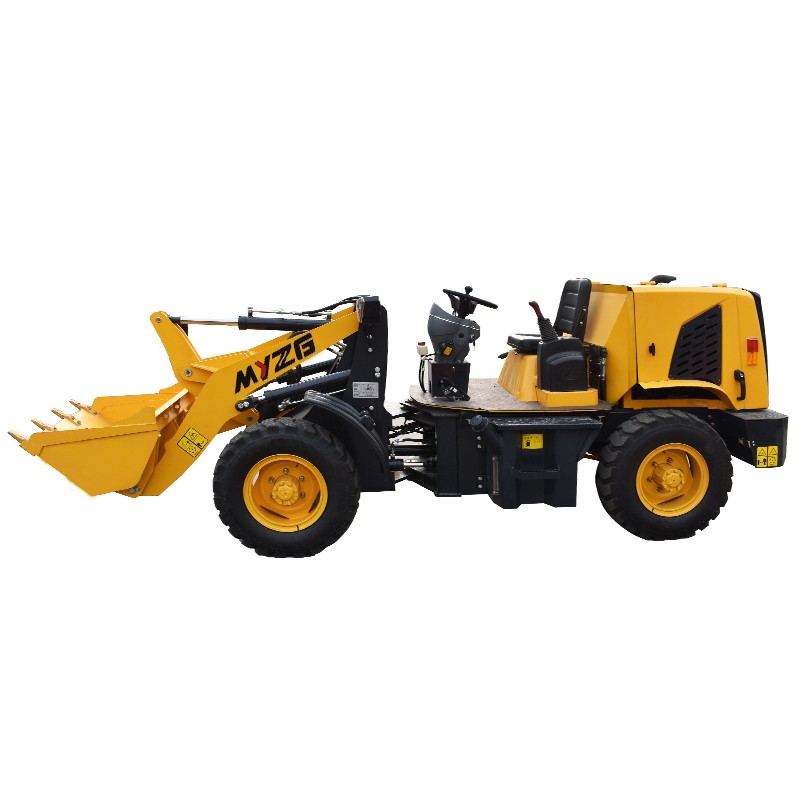

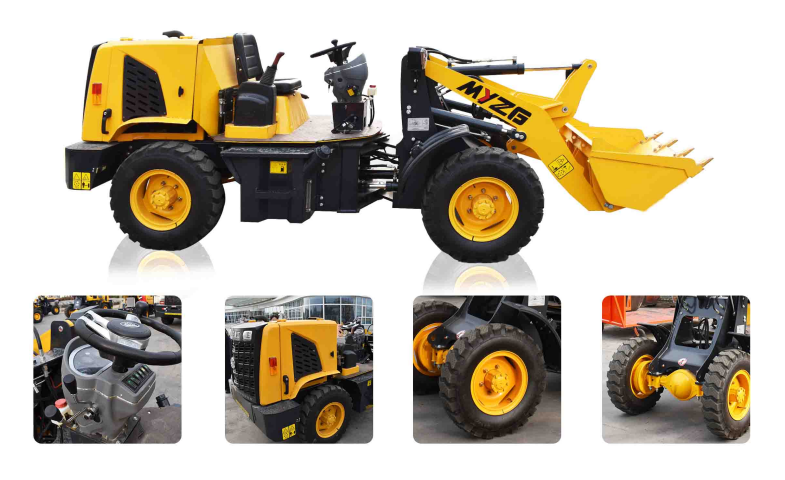

B28 is a new product developed by Minyu. It can shuttle freely, be smaller and more flexible, automatically change torque, super rising force, low fuel consumption, ultra-small turning radius of 2.6m, airbrake wheel side axle, brake more sensitive.
The turning radius is small and the steering is flexible; suitable for operating in tight spaces.
Oscillating rear axle keeps four-wheel drive engaged for superior off-road mobility.
One-stop maintenance: engine, fan, radiator and hydraulic hoses can be serviced from ground level.
Optional multiple attachments include: multiple buckets, pallet fork, grapples, snow pusher blade and sweeper broom.
Parameter
| Rated load capacity | 900kg |
| Rated bucket capacity | 0.5m3 |
| Operating weight | 2190kg |
| Engine model | quanchai |
| Rated power | 36.8kw |
| Rated speed | 2400 r/min |
| Dimensions | 4460*1550*1575mm |
| Dump height | 2400mm |
| Dump distance | 450mm |
| Min.turning radius | 2660mm |
| Tyre size | 10.5-16 |
