Description
Our all-electric pallet truck has an ultra-small turning radius, solving the problem of expensive narrow aisles that large forklifts are not allowed to pass through. They are mainly used in various factories, warehouses, logistics storage and loading, short-distance stacking, and handling….
Maximum load capacity: 1500/1600kg
Overall length/width of frame: 1860/850mm
Fork size（length *width*thickness): 1150*165*55mm
Fork lowered height: 90mm

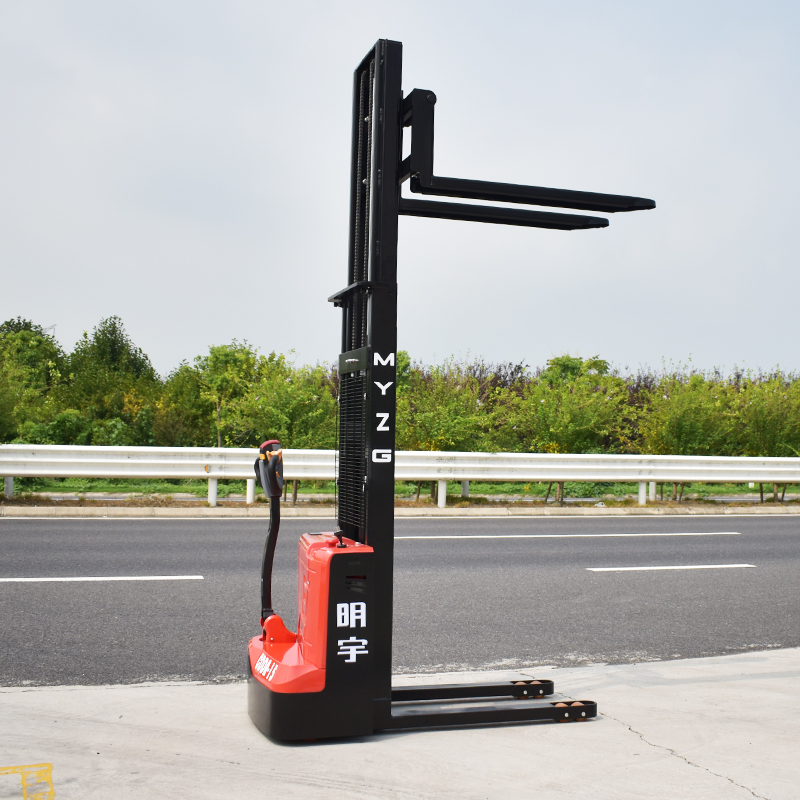

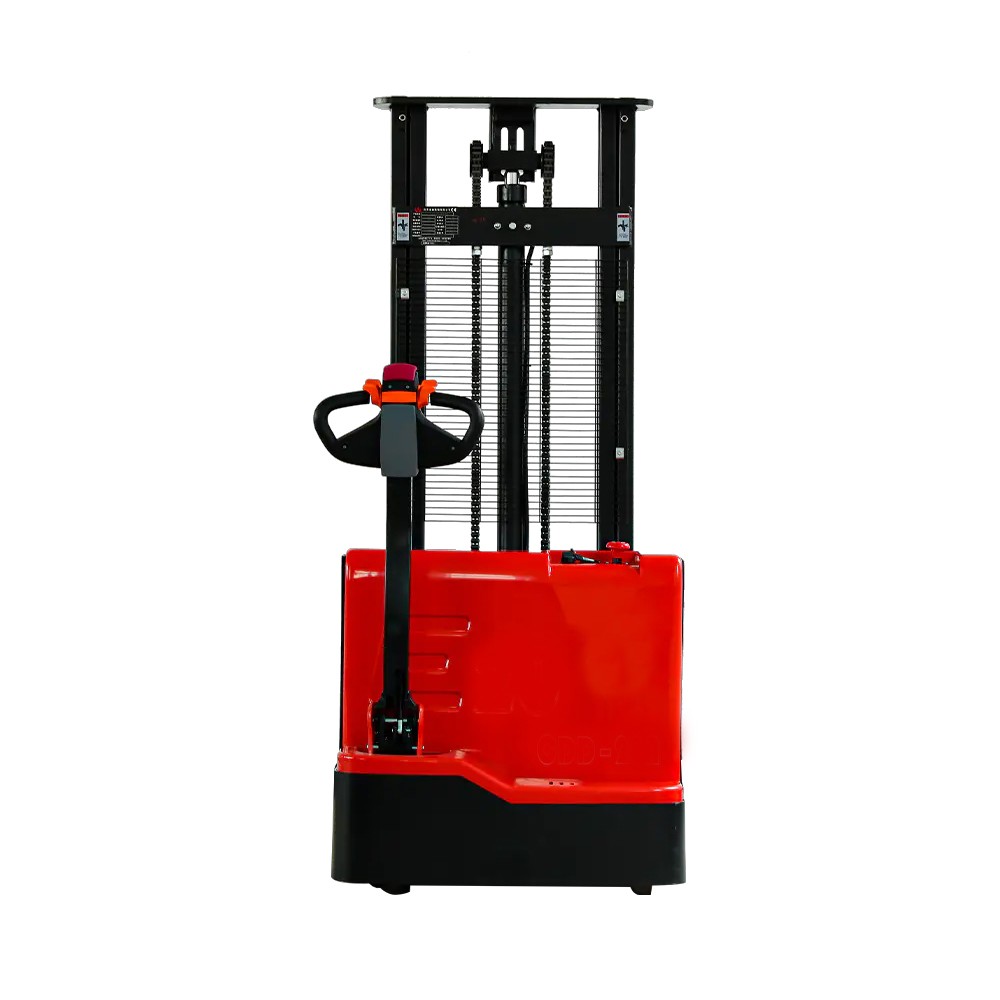

CDD-A WALKIE ELECTRIC STACKER
Product features :
Advantages:
Productivity
• Long tiller design for ergonomics and safety；
• Emergency reversing device in the handle provides higher safety for thewhole operation；
• Braking applied with handle upright and horizontal position, increasing the safety of the truck；
• Multi-function display with hour meter；
• Built-in pressure relief valve protects the trucks from overloads, and increases the reliability；
• Emergency power disconnect switch；
• Turtle-shaped low speed switch；
• Auto deceleration function makes operation more safely.
Optimum Structural Design
• Low center of gravity ensures the stable operation；
• Full free lifting, fit for working in low roof house；
• Adjustable balance wheel；
• Fixed forks/Adjustable forks are optional, suitable for more work scenarios.
Parameter
| Model | CDD15/16 | |||
| Maximum load capacity | 1500/1600kg | |||
| load center | 600mm | |||
| Travel speed without load/with load | 4.5/3.5km/h | |||
| Lifting speed without load/with load | 140/80mm/s | |||
| Lowered speed without load/with load | 100/80mm/s | |||
| Ascend slope ability without load/with load | 7/4% | |||
| Overall length/width of frame | 1860/850 | |||
| Wheelbase | 1250mm | |||
| Fork size（length *width*thickness） | 1150*165*55mm | |||
| Fork outside width | 550/685mm | |||
| Min frounf height | 28mm | |||
| Fork lowered height | 90mm | |||
| Minimum turning radius | 1530mm | |||
| Minimum intersecting aisie | 2400mm | |||
| Front wheel | 80*70mm | |||
| Drive wheel | 210*75mm | |||
| Caster wheel | 115*55mm | |||
| Drive motor Rated output/DC motor | 0.75kw | |||
| Hoist motor Rated output/DC motor | 2.2kw | |||
| Battery Voltag/Capacity | 24/85V/Ah | |||
| Battery Weight | 26*2kg | |||
| Mast | Max.Lifting height | Mast overall height | Mast overall height | Service weight |
| Single mast | 1600 mm | 2080 mm | 2080 mm | 460 kg |
| 2-stage mast | 2000 mm | 1580 mm | 2550 mm | 520 kg |
| 2500 mm | 1830 mm | 3050 mm | 530 kg | |
| 3000 mm | 2080/1980 mm | 3550/3450 mm | 540 kg | |
| 3500 mm | 2330 mm | 4050 mm | 620 kg | |

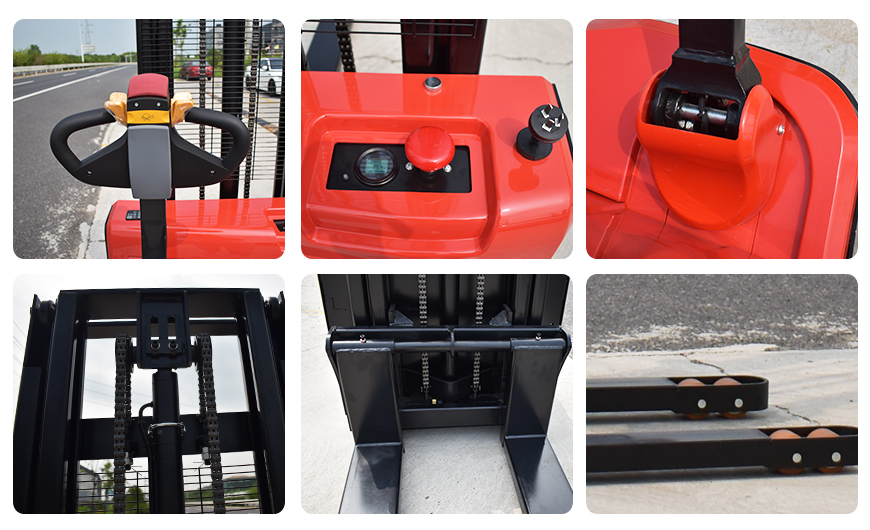

- Emergency reverse device;
- The built-in unloading valve protects the stacker from overloading and improves the reliability of the stacker;
- Emergency power off switch;
- Turtle-shaped slow speed switch;
- Infinitely variable speeds control;
- Foldable, thickened pedals and guard bar,make operator more comfortable and safety;
- The side cylinder ensures wide field of view operation and stability of the stacker;
- The balance wheel of the spring adjustment structure is hard-wearing and has good stability.
