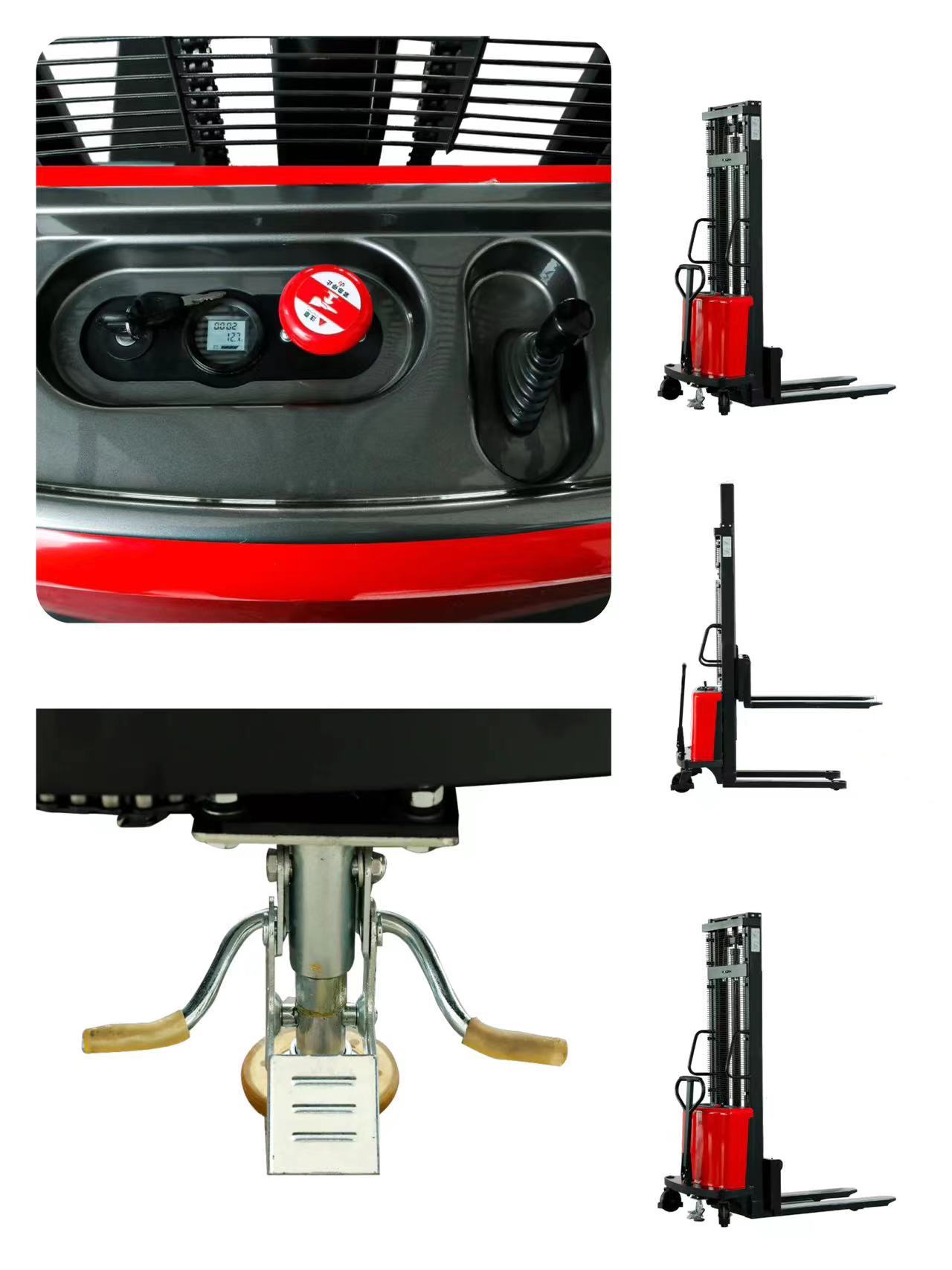

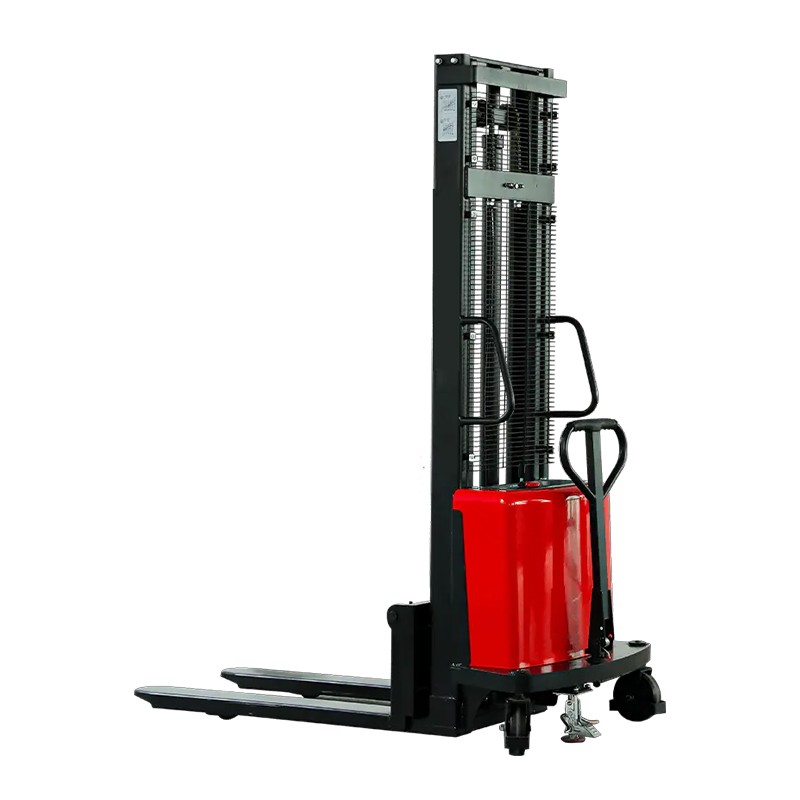

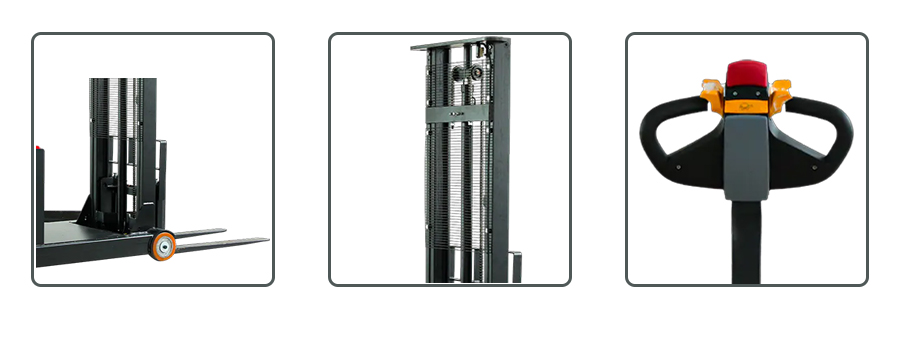

MYSBD Semi-electric stacker cross-leg

Description

This stand-on electric pallet truck has a super large tonnage load capacity and is equipped with a foldable stand-on pedal and an electric power steering system. It provides smooth operation and an excellent driving experience, and is highly efficient….

Maximum load capacity: 1000/1500/2000kg
Overall length/width of frame: 2310/1035·1877mm
Fork size（length *width*thickness）: 1150*160*55mm
Fork lowered height: 85mm

This stand-on electric pallet truck has a super large tonnage load capacity and is equipped with a foldable stand-on pedal and an electric power steering
system. It provides smooth operation and an excellent driving experience, and is highly efficient.

Product features :

Electric Power Steering
24V/210Ah Lead Acid Battery
AC 1.5KW Vertical Drive Motor
Optional: Controller Brand CURTIS
Fork Length/Width Customized
Fork Length/Width Customized

Model				SBD10/15/20
Maximum load capacity				1000/1500/2000kg
load center				500mm
Overall length of frame				1877mm
Overall width of frame				770mm
Wheelbase				1300mm
Fork size（length widththickness）				115016055mm
Fork outside width				670mm
Fork lowered height				85mm
Min frounf height				28mm
Minimum turning radius				1625mm
Front wheel				80*70mm
Caster wheel				180*50mm
Rated output（DC series motor）				1.6kw
Battery Voltag				12V
Battery Capacity				120Ah
Mast	Max.Lifting height	Mast overall height	Mast overall height	Service weight
Single mast	1600 mm	2080 mm	2080 mm	350 kg
2-stage mast	2000 mm	1580 mm	2550 mm	415kg
	2500 mm	1830 mm	3050 mm	435 kg
	3000 mm	2080/1980 mm	3550/3450 mm	450 kg
	3500 mm	2330 mm	4050 mm	490 kg
