Description
wheel loader for sale,multifunction loader,china diesel loader…
load capacity: 1.6ton
tyre size: 20.5/70-16
operating weighht: 4250 kg
Product Feature

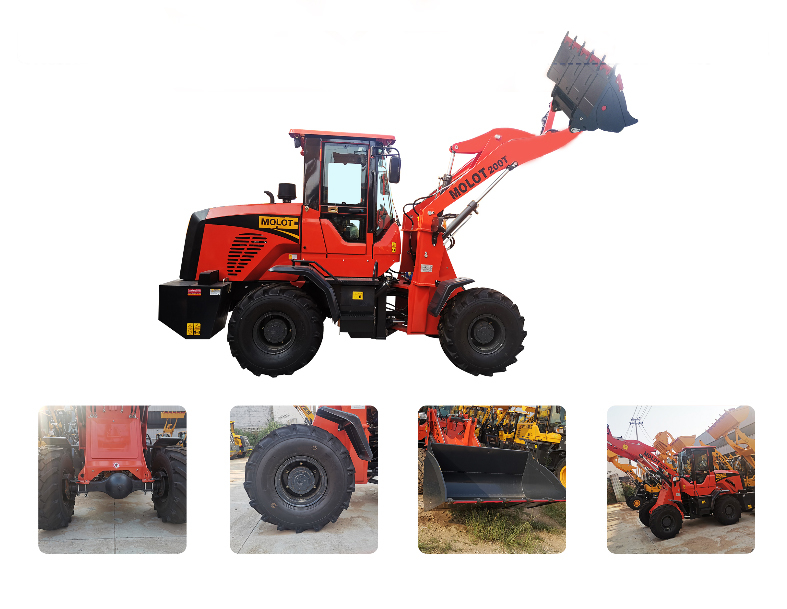

molot 200T is a self-developed product of Mingyu. Adopt high-quality engine, thickened manganese steel material, strengthen cast steel integrated bridge, new hydraulic system, more lifting force, higher work efficiency, more suitable for material shovel transportation and loading and unloading operations, widely used in coal yard, railway, construction, stone yard and other workplaces, is a widely used, reliable and efficient products.
MOLOT 200T is a long wheelbase product, mainly used in construction site, road construction, mine, station and query for various working conditions, such as ore, sandstone, coal and earthwork. Various working devices could be equipped as optional for meeting demand as the users’ requirements.
- Traction force ≥ 36KN, rising force 25KN, outstanding capability.
- Turning radius 2750mm, strong adaptability
- Extra long wheelbase, more heavy duty
- Herringbone tyre
Parameter
| Rated load capacity | 1600kg |
| Rated bucket capacity | 0.85m3 |
| Operating weight | 4250kg |
| Engine model | QUANCHAI 4B2-75M22
(EURO III / EURO V) |
| Rated power | 55kw |
| Rated speed | 2400 r/min |
| Dimensions | 5540*1940*2720mm |
| Dump height | 3200mm |
| Dump distance | 980mm |
| Min.turning radius | 2750mm |
| Wheel base | 2240mm |
| Wheeltrack | 1492mm |
| Tyre size | 20.5/70-16 |
1.Equipped with QUANCHAI engine with strong power and high reliability.
2.Electro-hydraulic control fixed shaft transmission with 4F/3R gears, featuring high transmission efficiency and easy operation.
3.Torque converter is optimally matched and traction force is increased to a large extent. Fuel consumption is reduced by as much as 5%.
4.Front and rear frame are optimally designed and the load distribution is reasonable. Steering soft limit is equipped to reduce the shock.
5.Imported waterproof & dustproof plug connectors and centralized fuse box are used in the electrical system, which ensures reliable performance.
6.Digital stepping type exquisite instrumental panel is equipped, which ensures real-time monitoring on the data and condition of the loader. Electrical system is centralize-controlled, which is convenient for testing and maintenance.
7.Three stage shock absorption system and new shock absorption seat are adopted for better performance in shock absorption, which upgrades the comfort of operation.
8.Full decorated cab with all-around clear visibility, low noise and A/C provides a comfortable driving space.
Detail
DIFFERENTIATED PRODUCTS

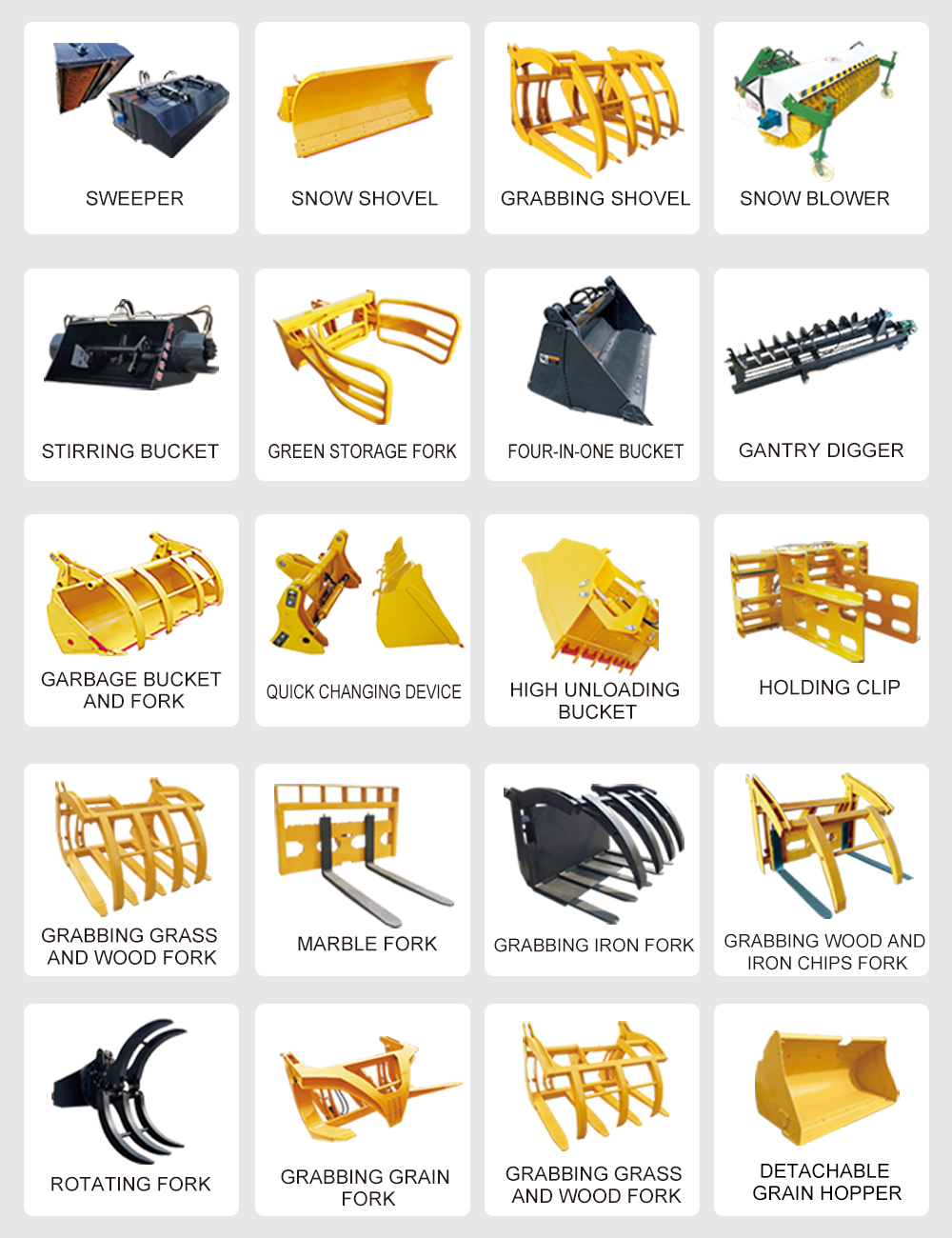

According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.
