Description
Widely used in factories, enterprises, logistics and warehouses and other work scenarios. …
Maximum load capacity: 1500/2000kg
Overall length/width of frame: 1730/1570mm
Fork size（length *width*thickness）: 1070*100*35mm
Fork lowered height: 90mm
MYCPDB STANDARD COUNTERBALANCE ELECTRIC STACKER
Widely used in factories, enterprises, logistics and warehouses and other work scenarios.

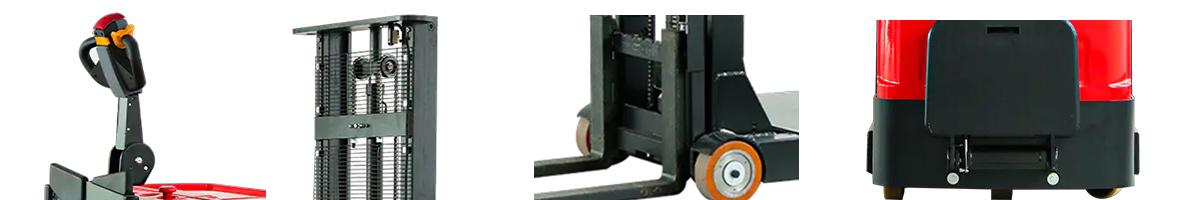

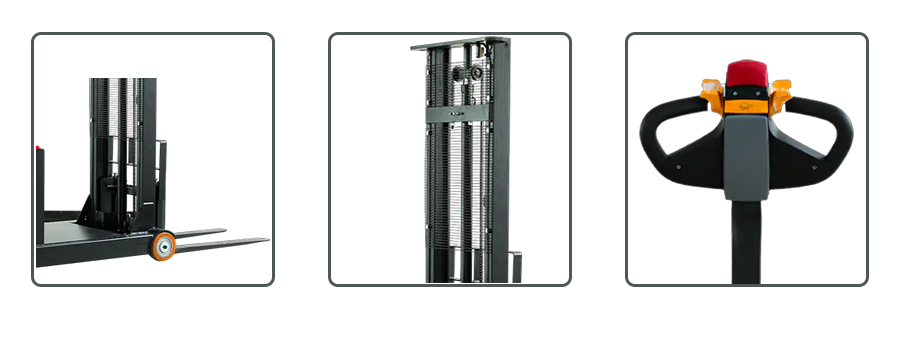

Product features :
Advantages:
• Using 12#C+J special steel mast,the structure is more stable;
• Configure EPS electronic power steering system；
• BUCHER high-performance pump station, more stable lifting;
• CURTIS controller, excellent performance;
• 24V/210Ah large-capacity power battery,guaranteed strong and durable power;
• 1.5Kw vertical driving wheel with anti-vibration device and small turing radius;
• Tilting system forks easy for loading and stacking；
• With emergency stop switch and electricity lock button, and multi-valve controlling levers；
• AC traction motor without brush with regenerative braking.
The product electric stacker has passed the CE certification and is mainly applied in petroleum, chemical engineering, pharmacy, light textile, military engineering, painting, coal, port, railroad, warehouse, bridge back, etc. For load and unload, pile and move.
| Model | CPDB15/20 | |||
| Maximum load capacity | 1500/2000kg | |||
| load center | 500mm | |||
| Travel speed without load/with load | 4.5/3.5km/h | |||
| Lifting speed without load/with load | 80/50mm/s | |||
| Lowered speed without load/with load | 130/140mm/s | |||
| Ascend slope ability without load/with load | 8/5% | |||
| Overall length/width of frame | 3150/1040 | |||
| Wheelbase | 1555mm | |||
| Fork size（length *width*thickness） | 1170*100*35/40mm | |||
| Fork outside width | 220-680mm | |||
| Min frounf height | 35/40mm | |||
| Fork lowered height | 60mm | |||
| Minimum turning radius | 2245mm | |||
| Minimum intersecting aisie | 3860mm | |||
| Front wheel | 210*85mm | |||
| Drive wheel | 230*75mm | |||
| Caster wheel | 124*60mm | |||
| Drive motor Rated output/DC motor | 1.5kw | |||
| Hoist motor Rated output/DC motor | 2.2kw | |||
| Battery Voltag/Capacity | 210V/Ah | |||
| Battery Weight | 195kg | |||
| Mast | Max.Lifting height | Mast overall height | Mast overall height | Service weight |
| Single mast | 1600 mm | 2130 mm | 2130 mm | 1500 kg |
| 2-stage mast | 2000 mm | 1630 mm | 2600 mm | 1530kg |
| 2500 mm | 1880 mm | 3100 mm | 1680 kg | |
| 3000 mm | 2130mm | 3600 mm | 1735 kg | |
| 3500 mm | 2380 mm | 4100 mm | 1930 kg | |
1)It adopts three mast and chain driving technology.
2)The controlling system is programmable based on the imported advanced foreign technology.
3)Moving type: Electric driving and climbing to a certain gradient.
4)The rising height and load can be changed as required by the customers.
5)There are complete safety equipments and their technical performance has reached the advanced level as the international product.
