Description
Rated load capacity:1600KG Rated bucket capacity:0.8-0.9 m³ Dimensions:4950*1850*2580mm Dump height:2180mm…
Rated load capacity:1600KG:
Rated bucket capacity:0.8-0.9 m³:
weight：3900kg:
Product Feature

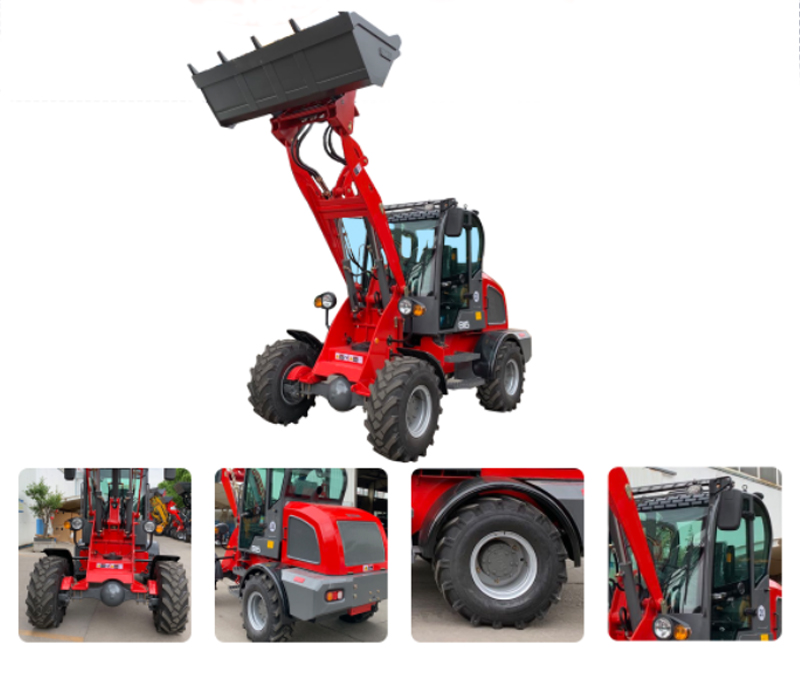

ZL816, energy-efficient, machine performance is greatly improved, the whole machine vibration and noise is decreased obviously, the whole machine has a high cost performance
●Digital screen dashboard
●4ways valve bank
●Hydraulic pressure test port
●Varta anti-freeze battery(24V)
●LED light
Parameter
| rated load capacity | 1600kg |
| rated bucket capacity | 0.8-0.9m³ |
| operating weight | 3900kg |
| engine model | yunnei (euro v) |
| rated power | 45KW |
| dimensions | 4950×1850×2580 mm |
| dump height | 2180 mm |
| Max.turning angle | 45° |
| min.turning radius | 4000mm |
| wheel base | 1500mm |
| tyre size | 20.5/70-16 |
1.Heavy duty articulation, adapt oscillating floating function, it can work well especially in terrain. Suit for both construction and agricultural environment.
2.Spacious cabin, give operator more comfortable driving experience, and the advanced height operator can easy to observe the lifting situation.
3.Lift-up engine hood, easy to check and for maintenance.
4.Iron powder rear bumper, make the machine more stable.
5.Battery at two sides of the rear bumper, easy for charging.
6.Streamlined and modern design, meet the preferences of contemporary customers.
7.TÜV CE certification guarantee the quality and make all reliable.
Detail
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.
