Description

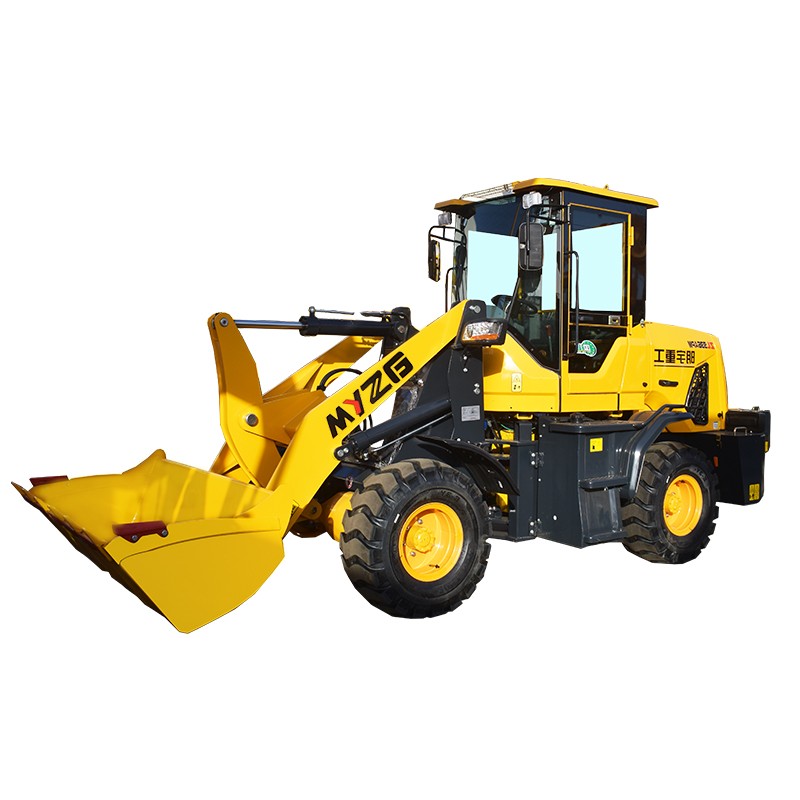

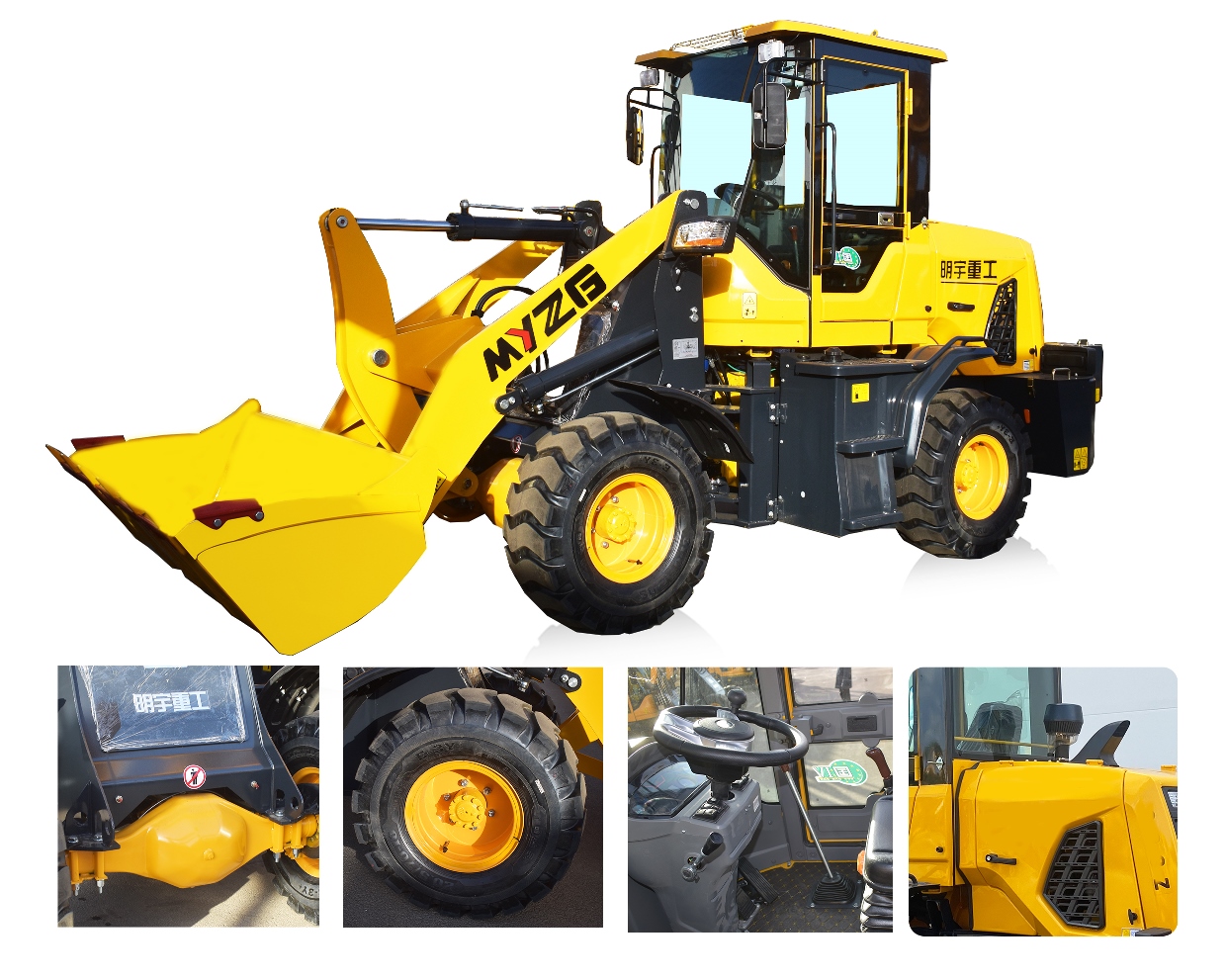

ZL-936AP wheel loader…
load capacity: 1.6 ton
rated bucket capacity: 0.6 m3
operating weight: 3410kg
Product Feature
ZL936AP is a product independently researched and developed by MYZG. It is equipped with national engine, high-quality split type double change, four-wheel drive, full hydraulic steering, strong power, higher efficiency and stronger environmental adaptability.
- The hydraulic system has a dual-pump confluence with steering always in priority, reducing energy loss.
- 309° panoramic visibility gives the operator a very comfortable work environment in the cab.
- Fully-sealing and micro-pressuring system ensures the cab is clean and quiet.
- Single layer radiator and big range fin spacing for high efficiency and easy maintenance.
Parameter
| Rated load capacity | 1600kg |
| Rated bucket capacity | 0.6m3 |
| Operating weight | 3410kg |
| Engine model | QUANCHAI 4B2-52M22
|
| Rated power | 38kw |
| Rated speed | 2400 r/min |
| Dimensions | 5420*1860*2680mm |
| Dump height | 3000mm |
| Dump distance | 750mm |
| Min.turning radius | 4400mm |
| Tyre size | 10.5-16 |
RELIABILITY
- quanchai electronic-controlled China Tier ll engine. The specific power-matching technology with P, S, E (heavy-load, medium-load, light-load) power control mode, which can be reasonably selected according to the operating conditions. Not only ensure the machine dynamic performance, but also reduce the energy
consumption and improve the productivity
HIGH EFFICIENCY
- Equipped with ZF fully automatic gear shifting gearbox, gear shifting is accurate and stable, without shock at start, through clutch calibration and electronic micro-motion, to ensure efficient operation of the gearbox
COMFORT
- New appearance cab has large-size loader style. The dimension is increased and the operation space is large. Dual curved front glass gives you wide vision. No threshold design, equipped with luxurious mechanical suspension seat and comfortable ride
Detail
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.
